DTC 3 - Map Sensor Circuit

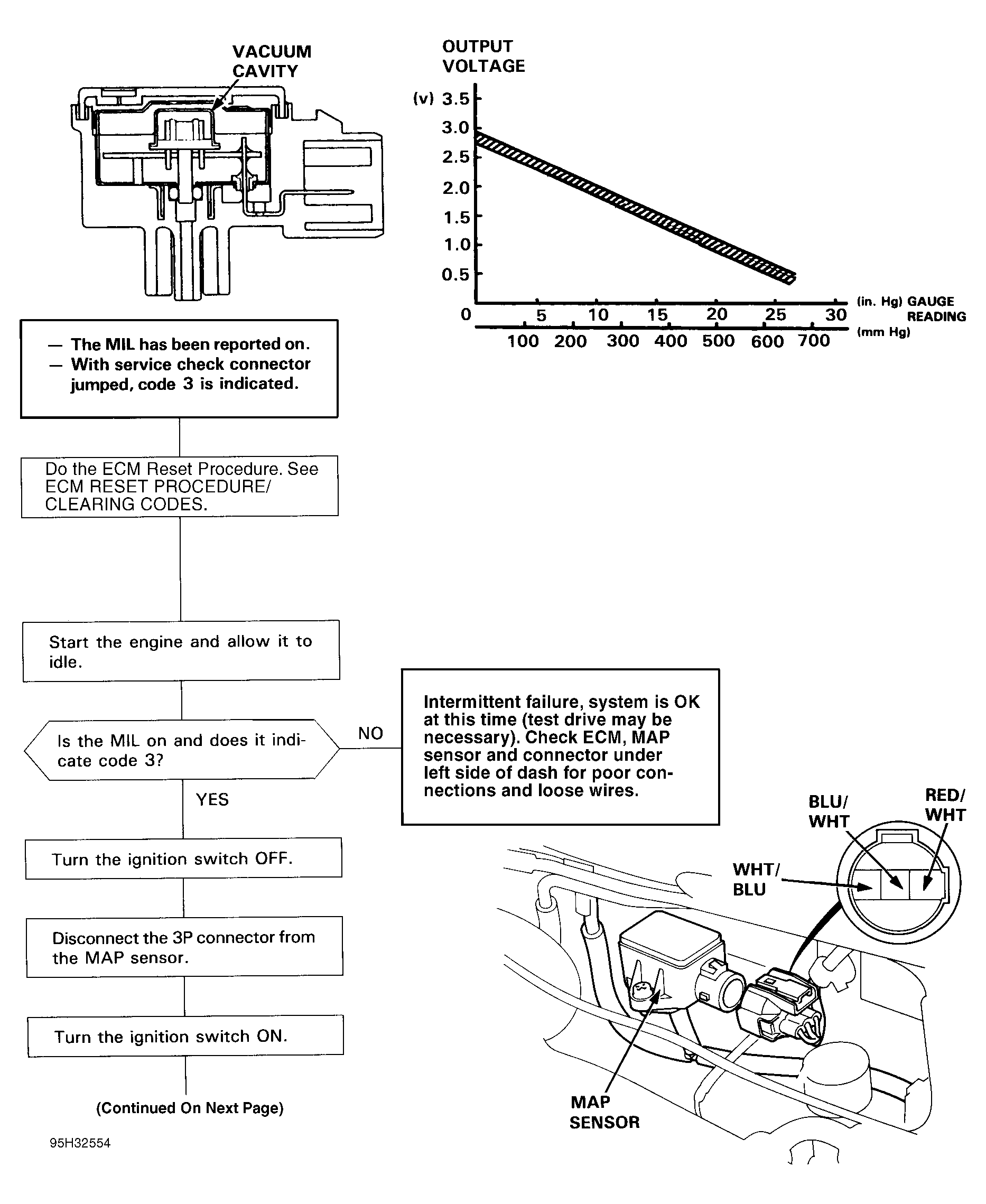

Fig 1: DTC 3 Diagnostic Flow Chart - 1 Of 3 (Prelude) Map Sensor Circuit
G95H32554

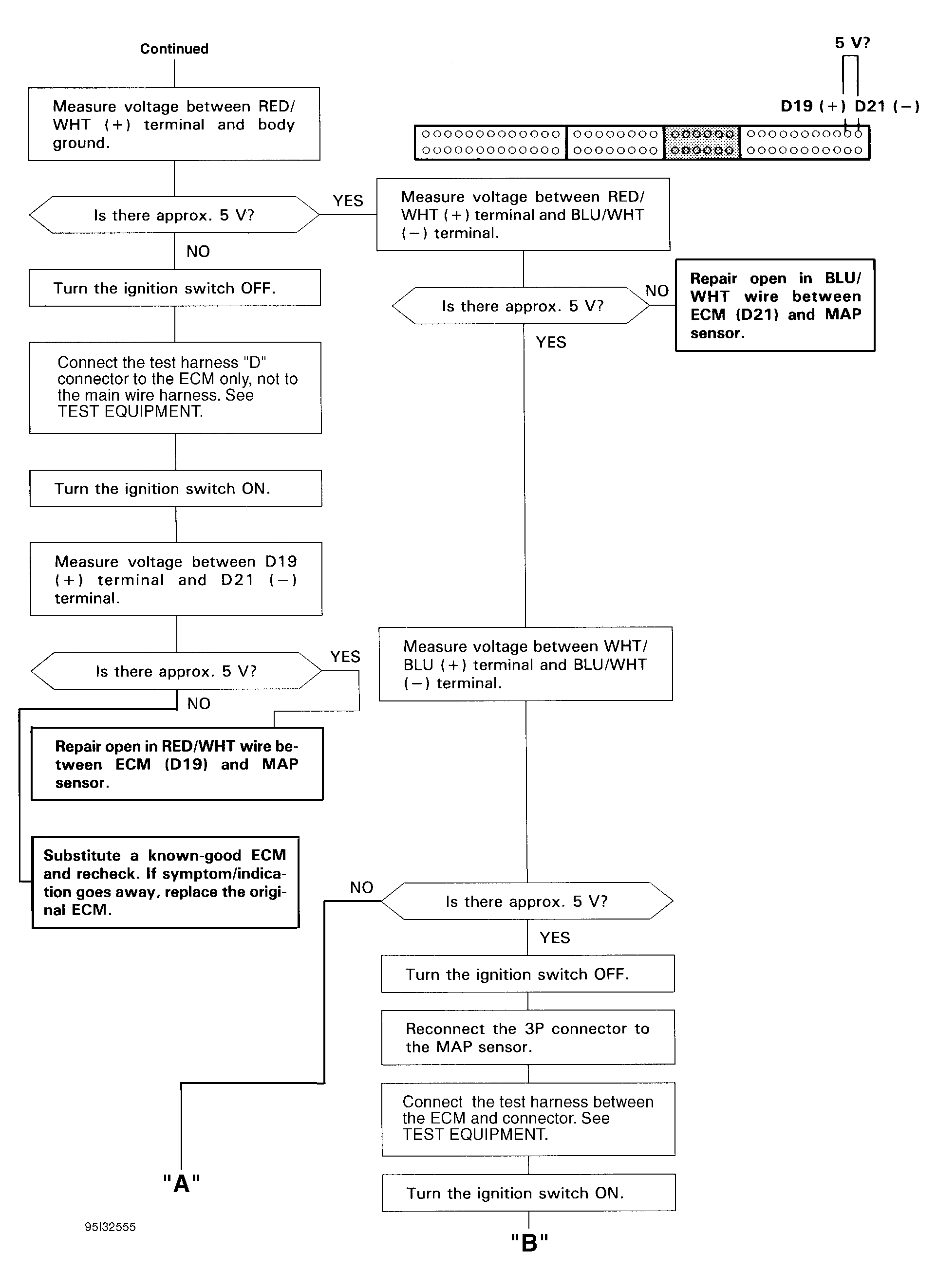

Fig 2: DTC 3 Diagnostic Flow Chart - 2 Of 3 (Prelude) Map Sensor Circuit
G95I32555

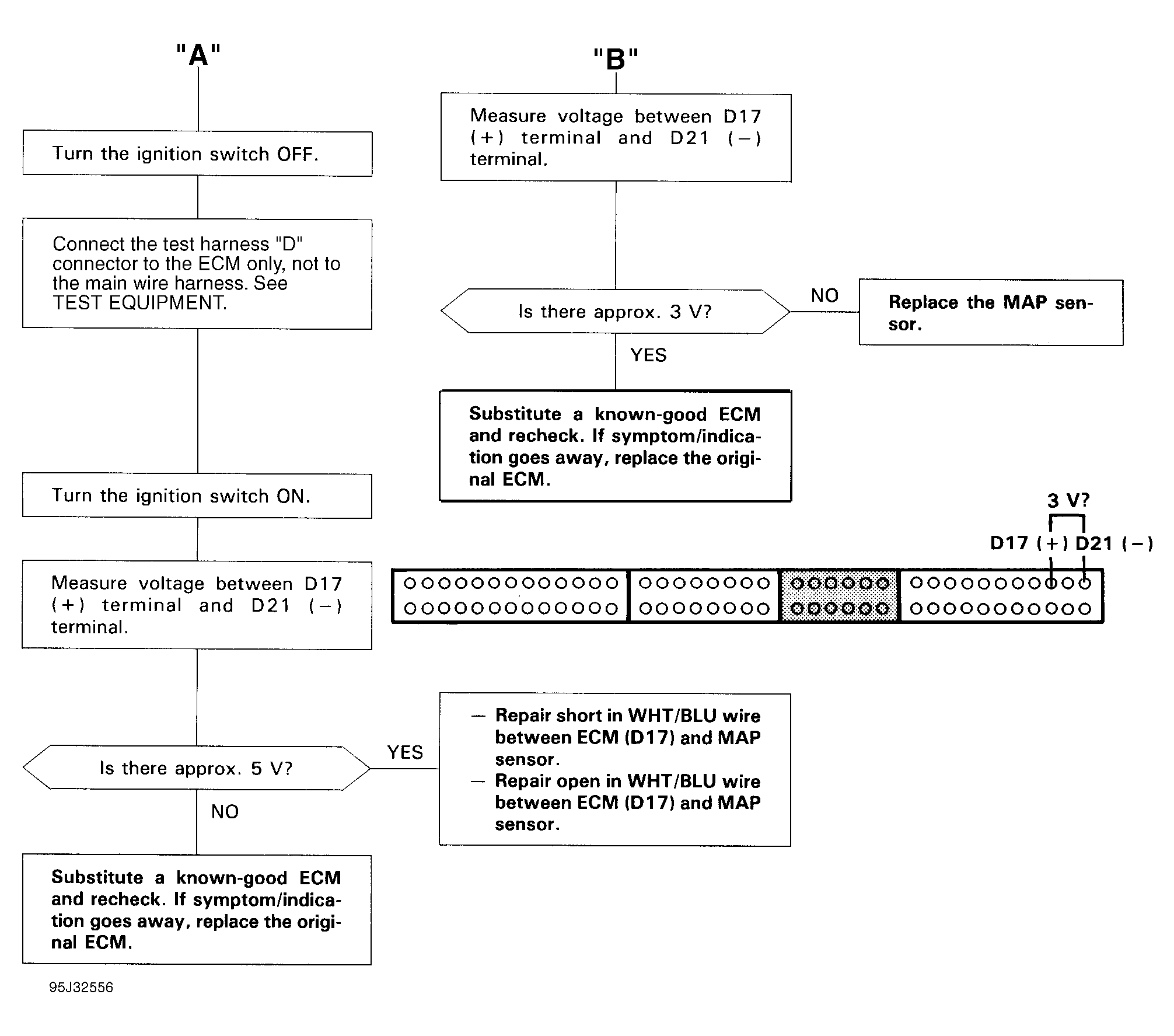

Fig 3: DTC 3 Diagnostic Flow Chart - 3 Of 3 (Prelude) Map Sensor Circuit
G95J32556
