Service Point Locations

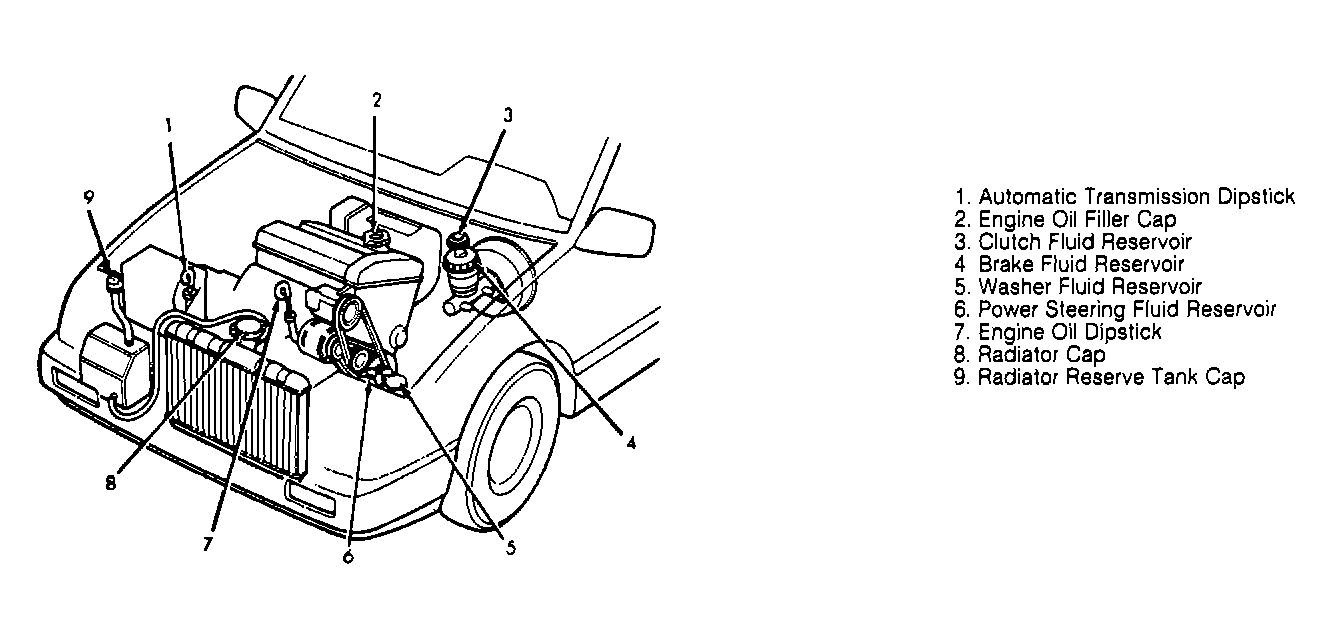

Fig 1: Engine Service Point Locations (Typical)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

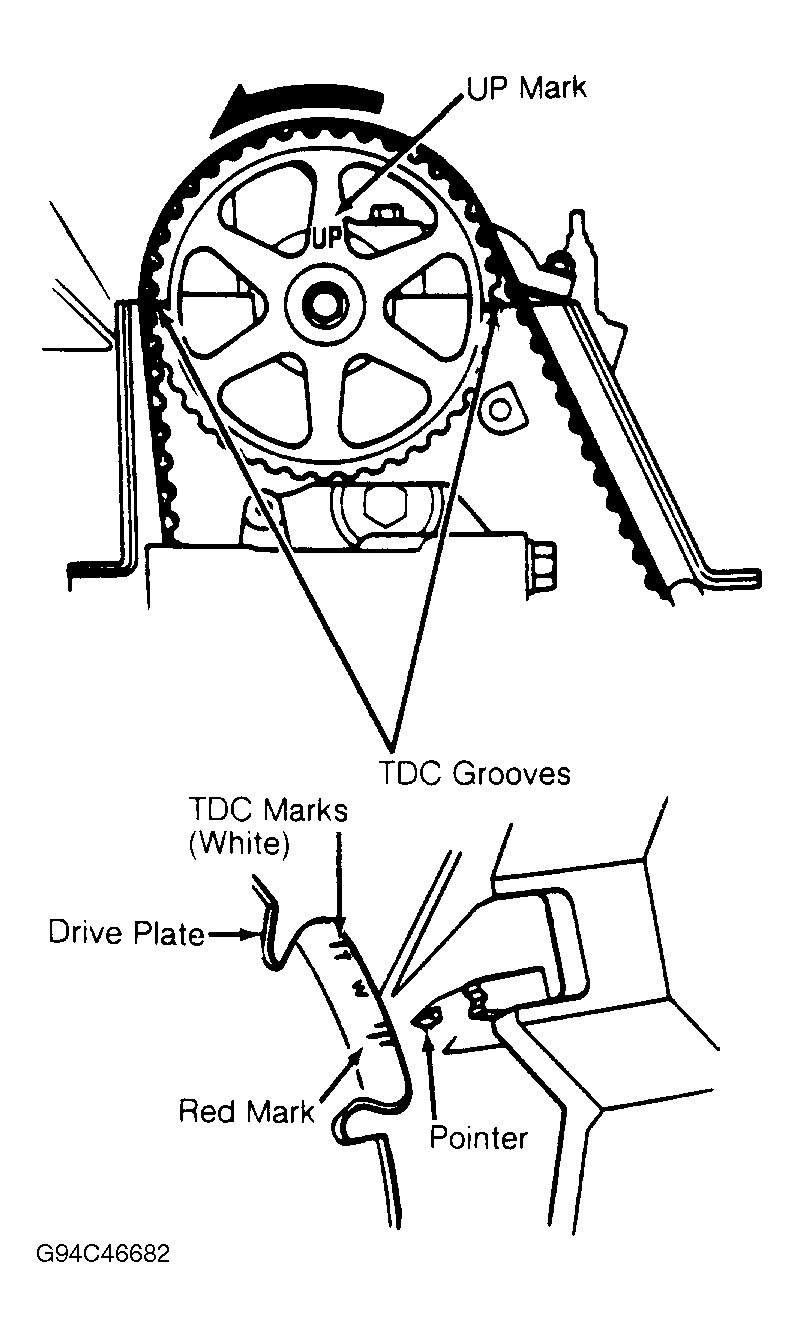

Fig 2: Positioning Camshaft for Valve Adjustment (2.2L SOHC)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For more information regarding valve adjustment refer to the 2.2L 4-CYL & 2.3L 4-CYL article in the ENGINE MECHANICAL section.

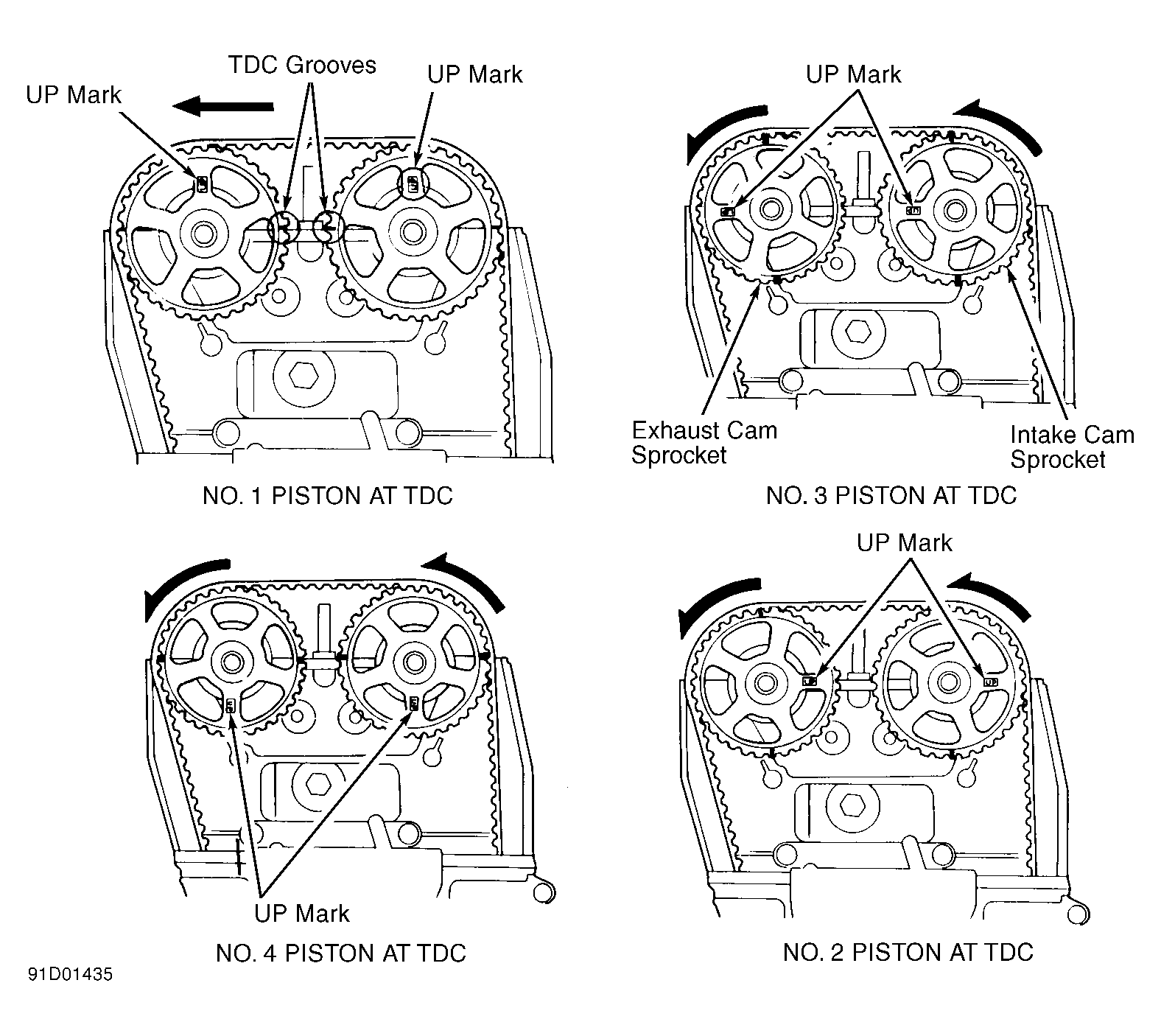

Fig 3: Positioning Camshaft for Valve Adjustment (2.2 DOHC)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For more information regarding valve adjustment refer to the 2.2L 4-CYL & 2.3L 4-CYL article in the ENGINE MECHANICAL section.

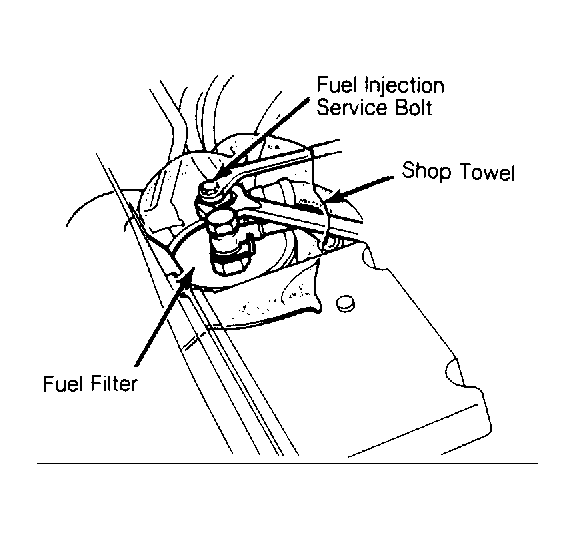

Fig 4: Releasing Fuel System Pressure

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For more information regarding fuel system service refer to the 2.2L 4-CYL & 2.3L 4-CYL article in the ENGINE MECHANICAL section.
