Component Locations

The following illustrations are provided to assist in locating components for which removal and installation procedures may not be provided. See Fig 1-Fig 32

Fig 1: Locating Engine Performance-Related Components (Accord 2.3L & 3.0L)

G98H07137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Engine Performance-Related Components (Accord 2.3L - 1 Of 2)

G98G07132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Locating Engine Performance-Related Components (Accord 2.3L - 2 Of 2)

G99D51964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Locating Engine Performance-Related Components (Accord 3.0L - 1 Of 2)

G98J07138

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Locating Engine Performance-Related Components (Accord 3.0L - 2 Of 2)

G99C51963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Engine Performance-Related Components (Civic B16A2 Engine - 1 Of 12)

G99J51978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating Engine Performance-Related Components (Civic B16A2 Engine - 2 Of 12)

G99H51976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 8: Locating Engine Performance-Related Components (Civic B16A2 Engine - 3 Of 12)

G99I51977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Locating Engine Performance-Related Components (Civic D16Y5 Engine - 4 Of 12)

G97D07102

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Locating Engine Performance-Related Components (Civic D16Y7 Engine - 5 Of 12)

G97F07103

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Locating Engine Performance-Related Components (Civic D16Y8 Engine - 6 Of 12)

G97H07104

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Locating Engine Performance-Related Components (Civic D16Y5 & D16Y8 Engine - 7 Of 12)

G99D51980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Locating Engine Performance-Related Components (Civic D16Y7 Engine - 8 Of 12)

G99E51981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 14: Locating Engine Performance-Related Components (Civic - 9 Of 12)

G97A07105

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 15: Locating Engine Performance-Related Components (Civic - 10 Of 12)

G97C07106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

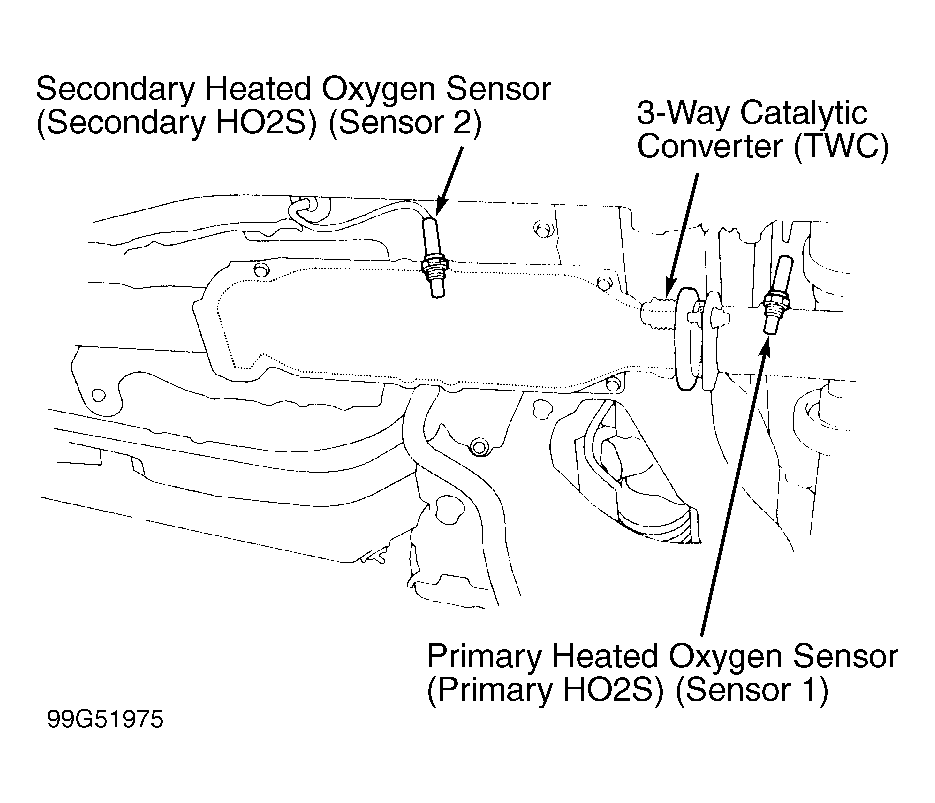

Fig 16: Locating Engine Performance-Related Components (Civic - 11 Of 12)

G99G51975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 17: Locating Engine Performance-Related Components (Civic - 12 Of 12)

G99A51979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Locating Engine Performance-Related Components (CR-V - 1 Of 4)

G99C51971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 19: Locating Engine Performance-Related Components (CR-V - 2 Of 4)

G99D51972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Locating Engine Performance-Related Components (CR-V - 3 Of 4)

G99B51970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Locating Engine Performance-Related Components (CR-V - 4 Of 4)

G97I07114

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Locating Engine Performance-Related Components (Odyssey - 1 Of 5)

G99G51967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Locating Engine Performance-Related Components (Odyssey - 2 Of 5)

G99H51968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Locating Engine Performance-Related Components (Odyssey - 3 Of 5)

G99I51969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Locating Engine Performance-Related Components (Odyssey - 4 Of 5)

G99E51965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 26: Locating Engine Performance-Related Components (Odyssey - 5 Of 5)

G99F51966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Locating Engine Performance-Related Components (Prelude - 1 Of 6)

G97J07119

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Locating Engine Performance-Related Components (Prelude - 2 Of 6)

G97B07120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Locating Engine Performance-Related Components (Prelude - 3 Of 6)

G97H07241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Locating Engine Performance-Related Components (Prelude - 4 Of 6)

G97J07242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 31: Locating Engine Performance-Related Components (Prelude - 5 Of 6)

G99E51973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 32: Locating Engine Performance-Related Components (Prelude - 6 Of 6)

G99F51974

Courtesy of AMERICAN HONDA MOTOR CO., INC.
