Power Window Relay Test

Remove power window relay from underhood fuse/relay block. Using DVOM, check for continuity between relay terminals No. 1 and 2. See Fig 1 -Fig 2 . Continuity should not exist. Using jumper wires, connect terminals No. 3 and 4 to battery voltage and ground. Continuity should now exist between terminals No. 1 and 2. If continuity is not as specified, replace relay.

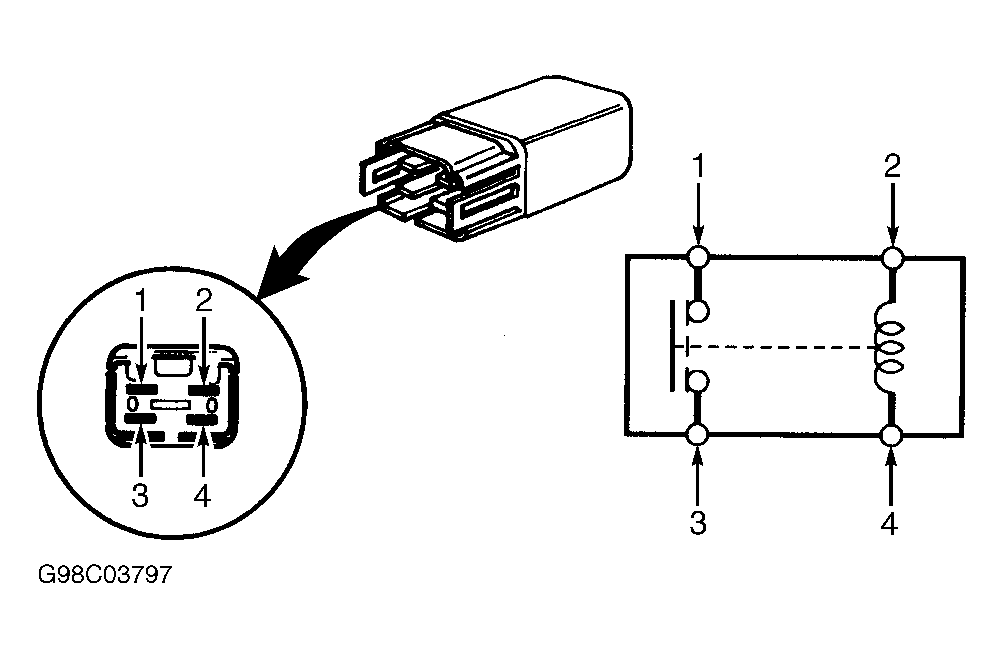

Fig 1: Identifying Power Window Relay Terminals (CR-V)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

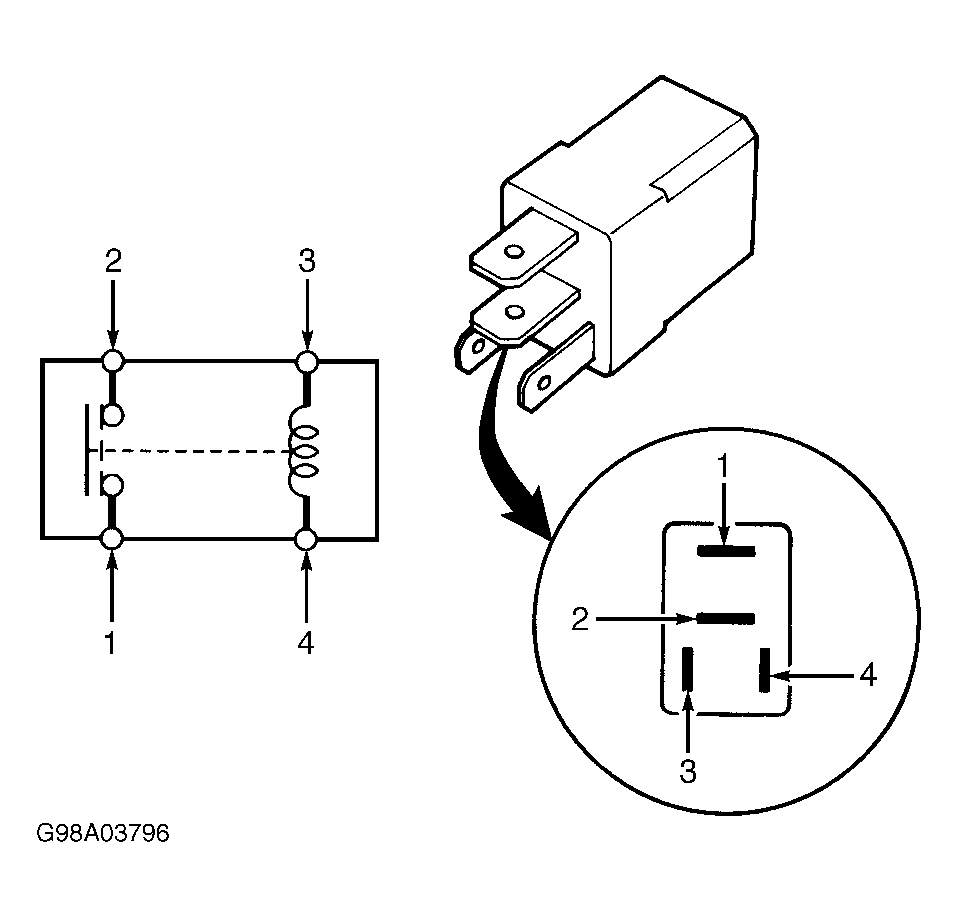

Fig 2: Identifying Power Window Relay Terminals (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
