Master Switch

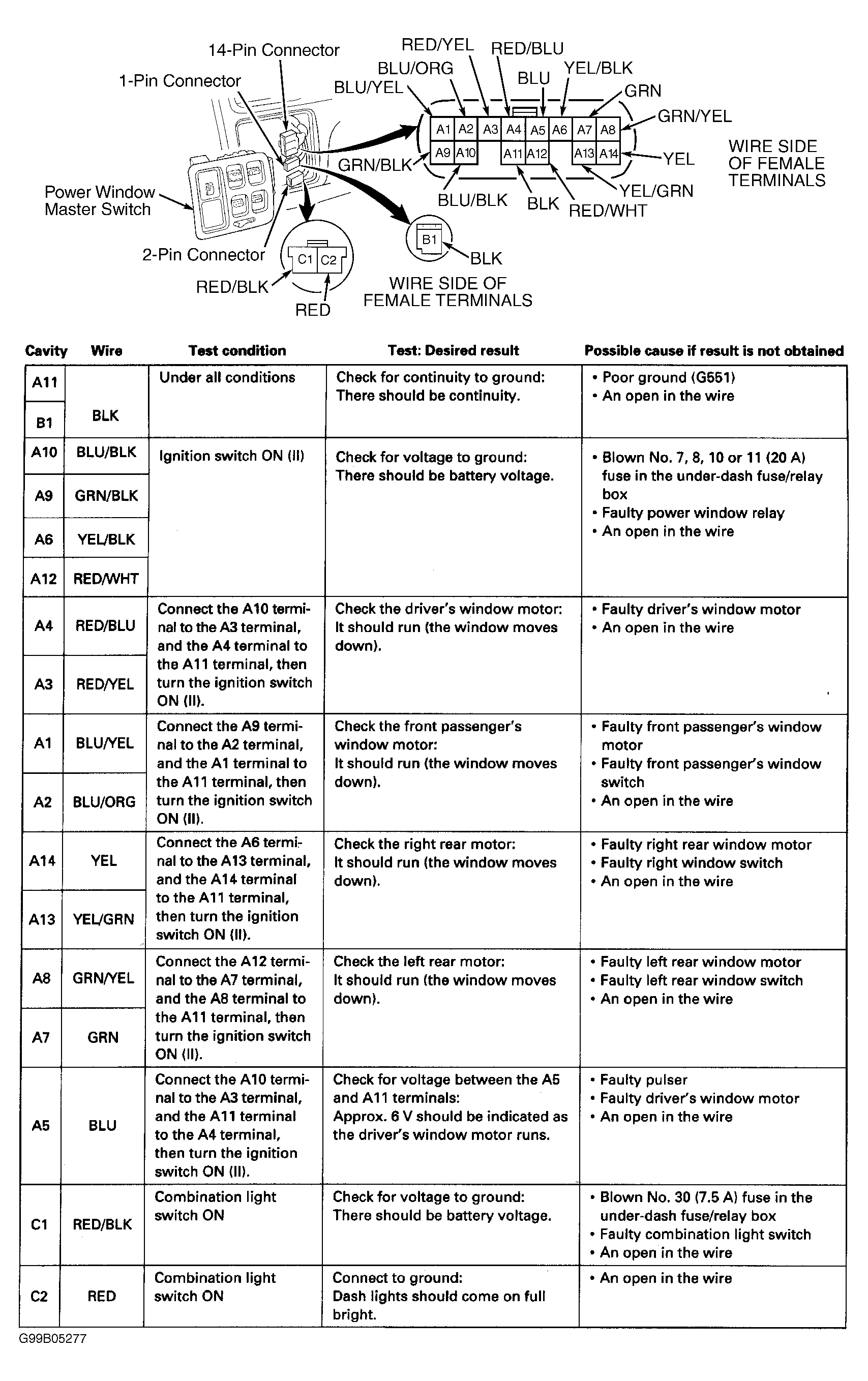

Remove power window master switch. See MASTER POWER WINDOW SWITCH
under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Figure
-Figure
. See appropriate POWER WINDOW MASTER SWITCH TEST table.
POWER WINDOW MASTER SWITCH TEST (CIVIC COUPE & HATCHBACK)
| Switch Position |
Main Switch |
Continuity Between Terminals |
| Driver's Switch |
..... |
|
| Passenger's Switch |
| Off |
On |
A2, A5 & A7 |
| Off |
A2 & A7 |
| Up |
On |
A2 & A5; A6 & A7 |
| Off |
A6 & A7 |
| Down |
On |
A2 & A6; A5 & A7 |
| Off |
A2 & A6 |
POWER WINDOW MASTER SWITCH TEST (CIVIC SEDAN)
| Switch Position |
Main Switch |
Continuity Between Terminals |
| Left Front Switch |
..... |
|
| Right Front Switch |
| Off |
On |
B1, B11 & C1 |
| Off |
B1 & B11 |
| Up |
On |
B1 & B2; B11 & C1 |
| Off |
B1 & B2 |
| Down |
On |
B1 & C1; B2 & B11 |
| Off |
B2 & B11 |
| Right Rear Switch |
| Off |
On |
B9, B10 & C1 |
| Off |
B9 & B10 |
| Up |
On |
B8 & B9; B10 & C1 |
| Off |
B8 & B9 |
| Down |
On |
B8 & B10; B9 & C1 |
| Off |
B8 & B10 |
| Left Rear Switch |
| Off |
On |
B14, B16 & C1 |
| Off |
B14 & B16 |
| Up |
On |
B14 & B15; B16 & C1 |
| Off |
B14 & B15 |
| Down |
On |
B14 & C1; B15 & B16 |
| Off |
B15 & B16 |
POWER WINDOW MASTER SWITCH TEST (CR-V)
| Switch Position |
Main Switch |
Continuity Between Terminals |
| Left Front Switch |
..... |
|
| Right Front Switch |
| Off |
On |
A1, A2 & B1 |
| Off |
A1 & A2 |
| Up |
On |
A1 & A9 |
| Off |
A1 & A9 |
| Down |
On |
A2 & A9 |
| Off |
A2 & A9 |
| Right Rear Switch |
| Off |
On |
A13, A14 & B1 |
| Off |
A13 & A14 |
| Up |
On |
A6 & A14 |
| Off |
A6 & A14 |
| Down |
On |
A6 & A13 |
| Off |
A6 & A13 |
| Left Rear Switch |
| Off |
On |
A7, A8 & B1 |
| Off |
A7 & A8 |
| Down |
On |
A8 & A12 |
| Off |
A8 & A12 |
| Up |
On |
A7 & A12 |
| Off |
A7 & A12 |
| Switch Light |
..... |
|
