Function Test: Notes

Remove the instrument panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the power mirror switch (B).

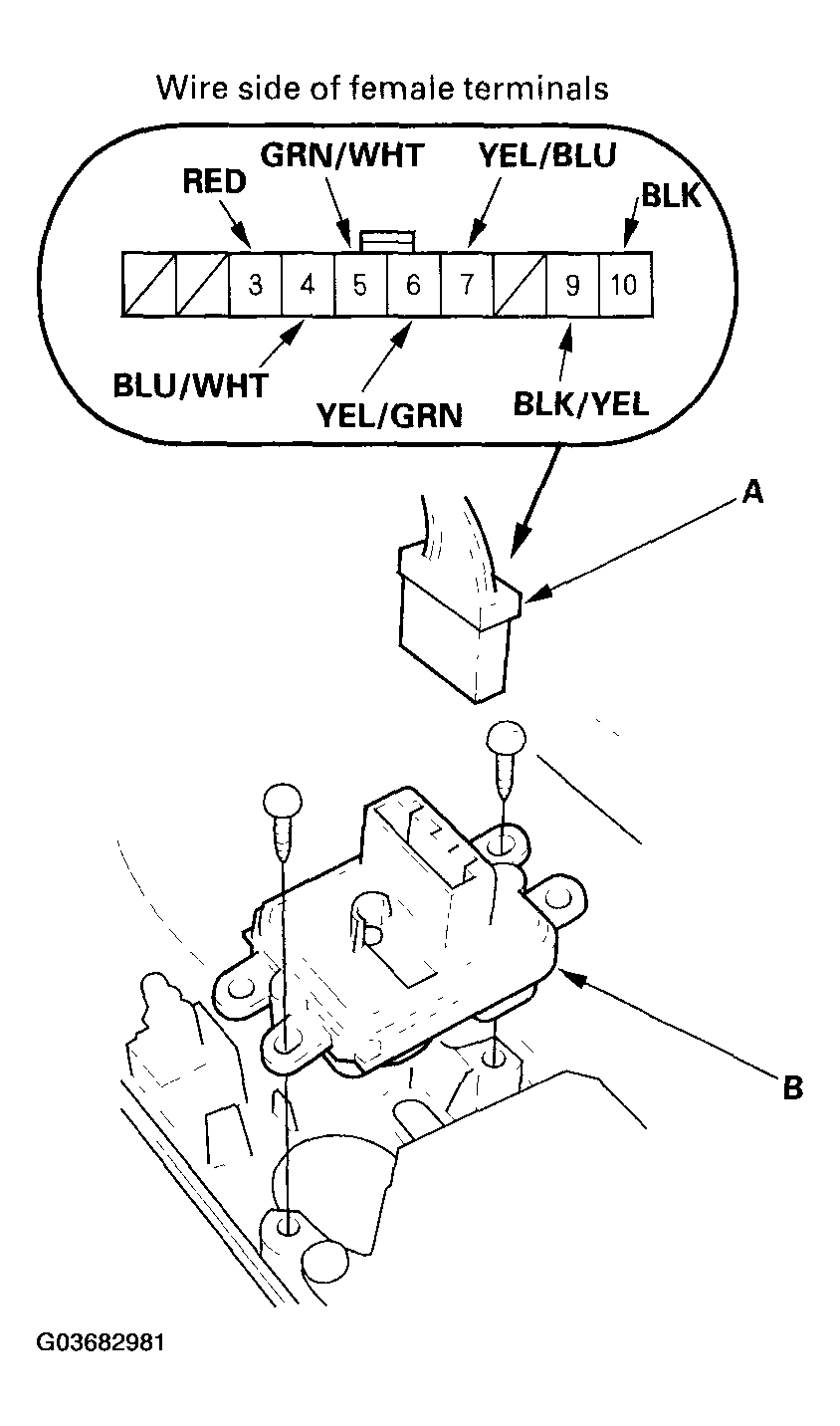

Fig 1: Disconnecting 10P Connector From Power Mirror Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Choose the appropriate test based on the symptom:
- Both mirrors don't work, go to step 4.
- Left mirror doesn't work, go to step 6 .
- Right mirror doesn't work, go to step 7 .
