Driver's Door Lock Knob Switch Test

Remove the driver's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 3P connector (A) from the actuator (B).

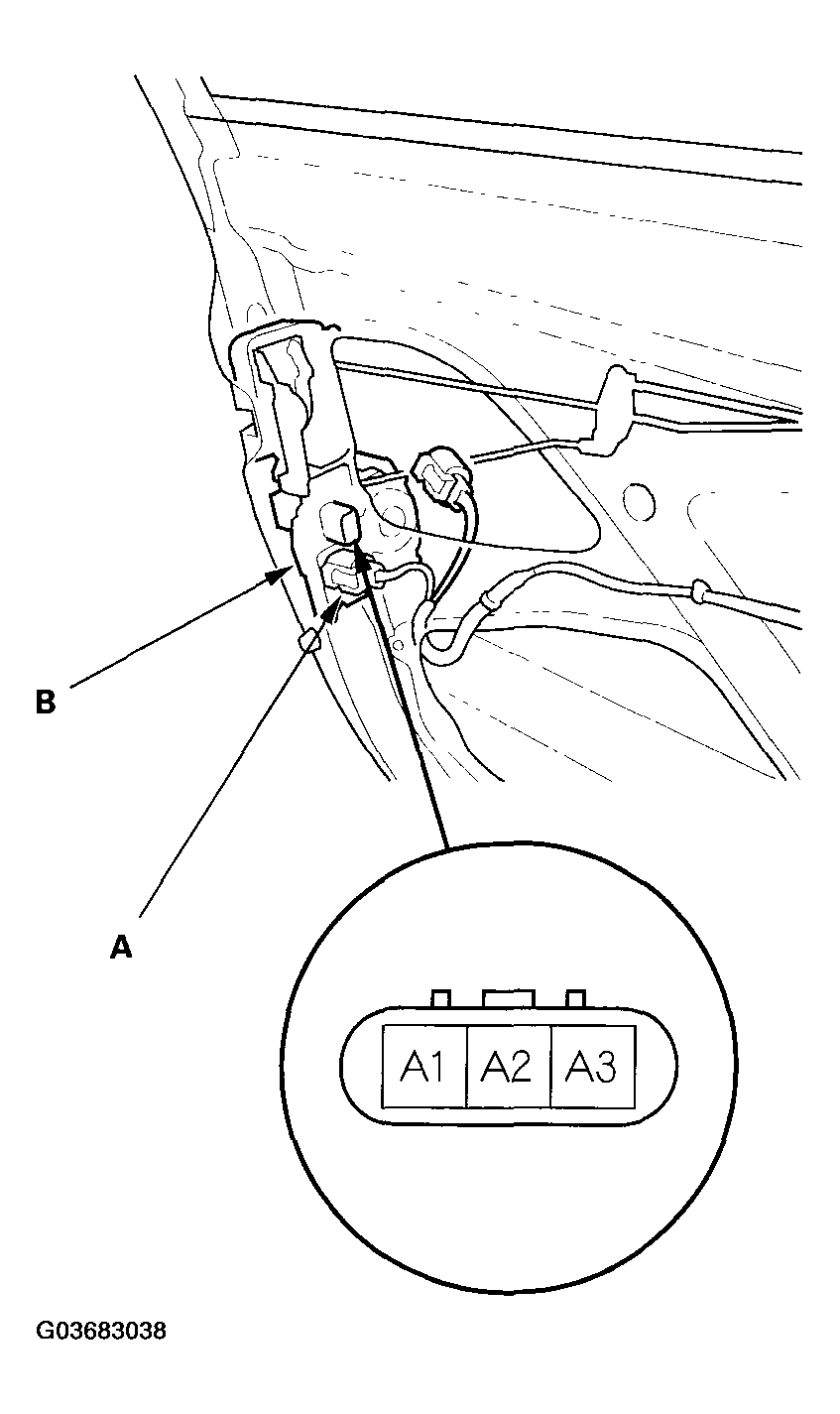

Fig 1: Disconnecting 3P Connector From Actuator
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the A1 andA2 terminals.
- With the driver's door locked, there should be continuity.
- With the driver's door unlocked, there should be no continuity.
If the continuity is not as specified, replace the driver's door lock knob switch.
