Hatch Lock Actuator/Latch Switch/Unlock Switch Test: Notes

  1. Open the hatch and remove the rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA ).
  2. Disconnect the 6P connector (A) from the hatch lock actuator (B).

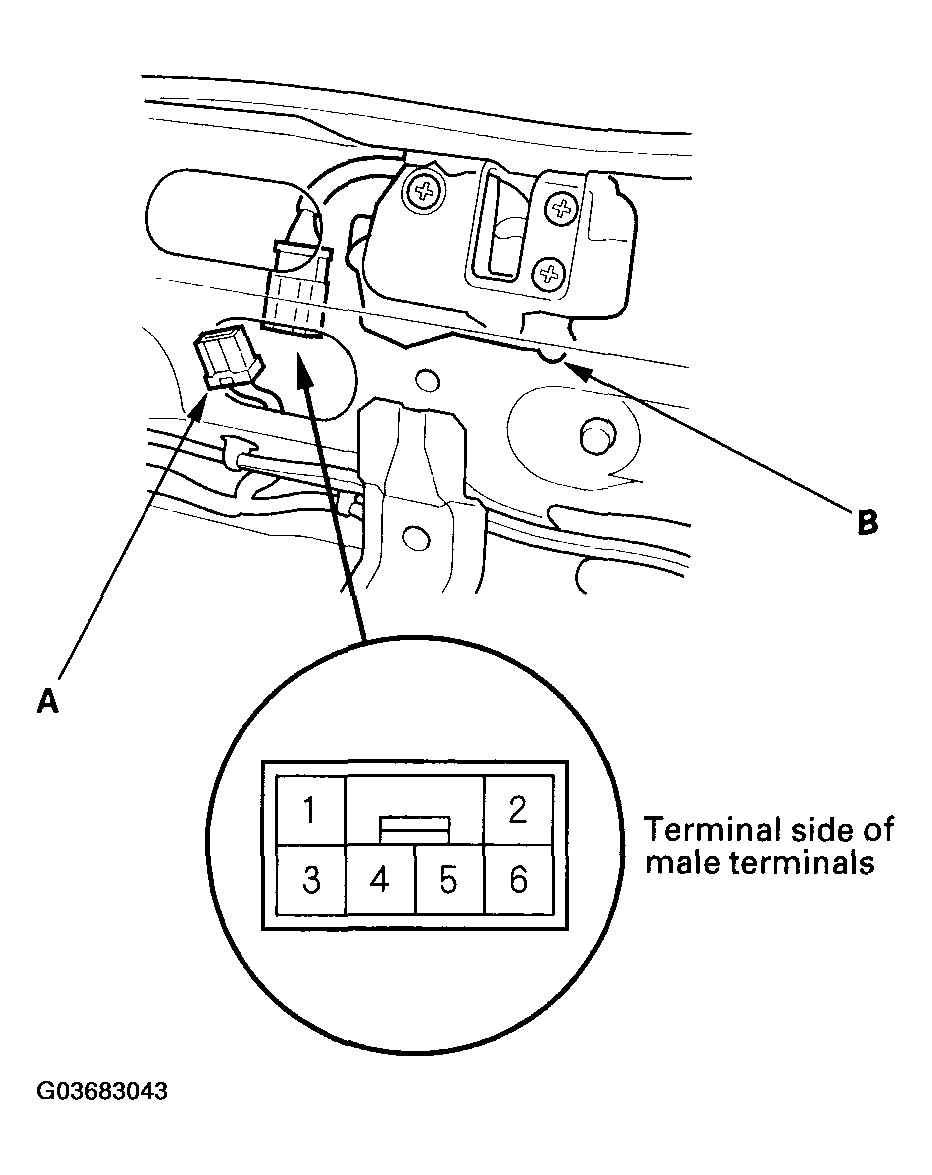

    Fig 1: Disconnecting 6P Connector From Hatch Lock Actuator
    G03683043Courtesy of AMERICAN HONDA MOTOR CO., INC.
