Ignition Switch/Steering Lock: Test

SRS components are located in this area. Review the SRS component locations, precautions, and procedures in the SRS before performing repairs or servicing (see COMPONENT LOCATION INDEX ).

1. Remove the driver's pocket.
2. Disconnect the 7P connector from the under-dash fuse/relay box.

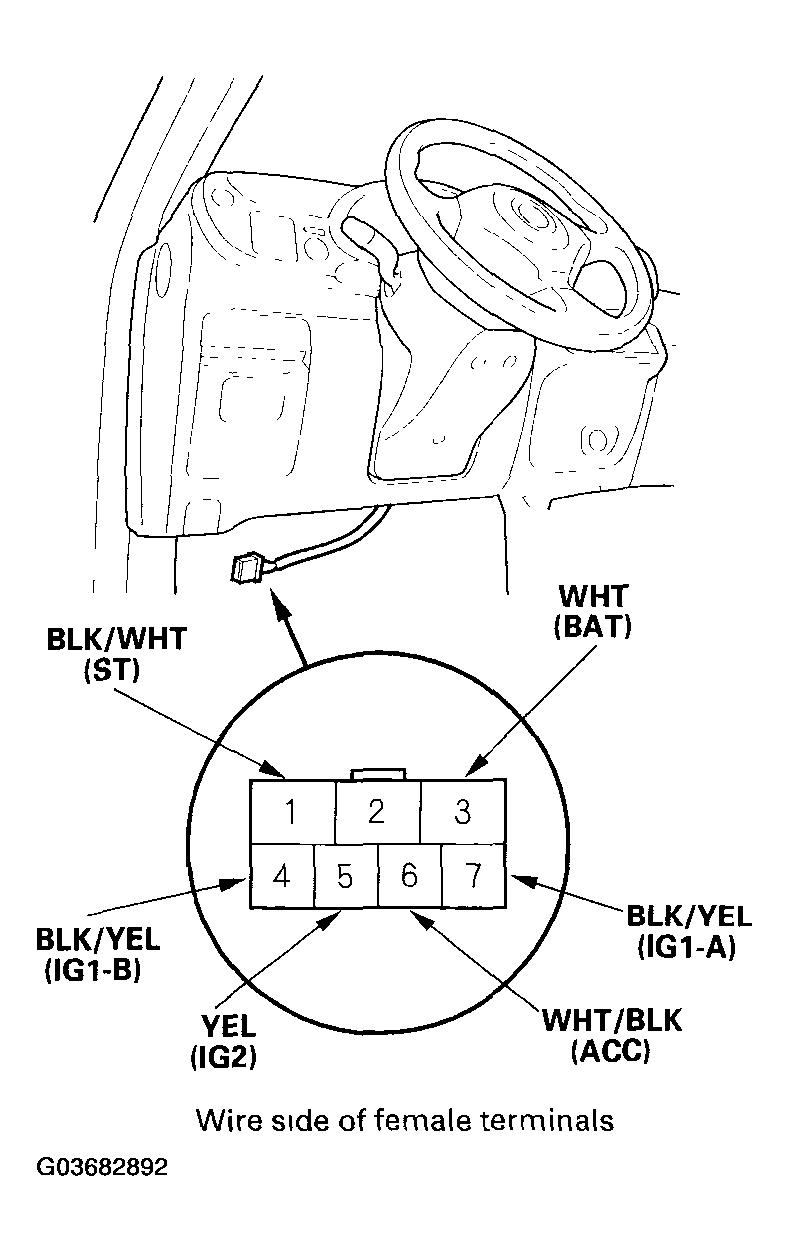

   Fig 1: Disconnecting 7P Connector From Under-Dash Fuse/Relay Box

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table.

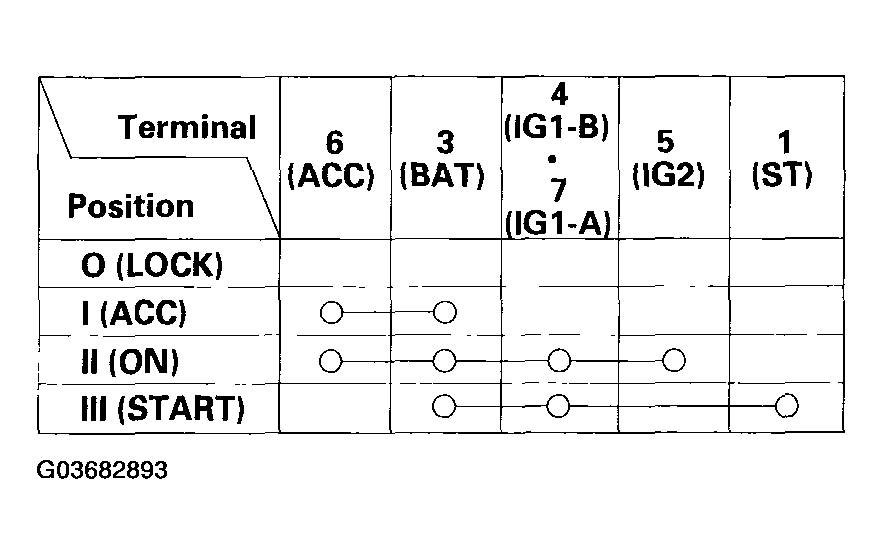

   Fig 2: Checking For Continuity Between Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If the continuity is not as specified, replace the steering lock assembly (see STEERING LOCK REPLACEMENT ).
