Seat Disassembly/Reassembly

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to tear the seams or damage the seat covers.
Put on gloves to protect your hands.
Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
The driver's seat is shown, the passenger's seat is symmetrical (except the seat belt switch harness).
Apply multipurpose grease to the moving portion of the seat track.
To prevent wrinkles in the seat-back cover, stretch the material evenly over the pad.

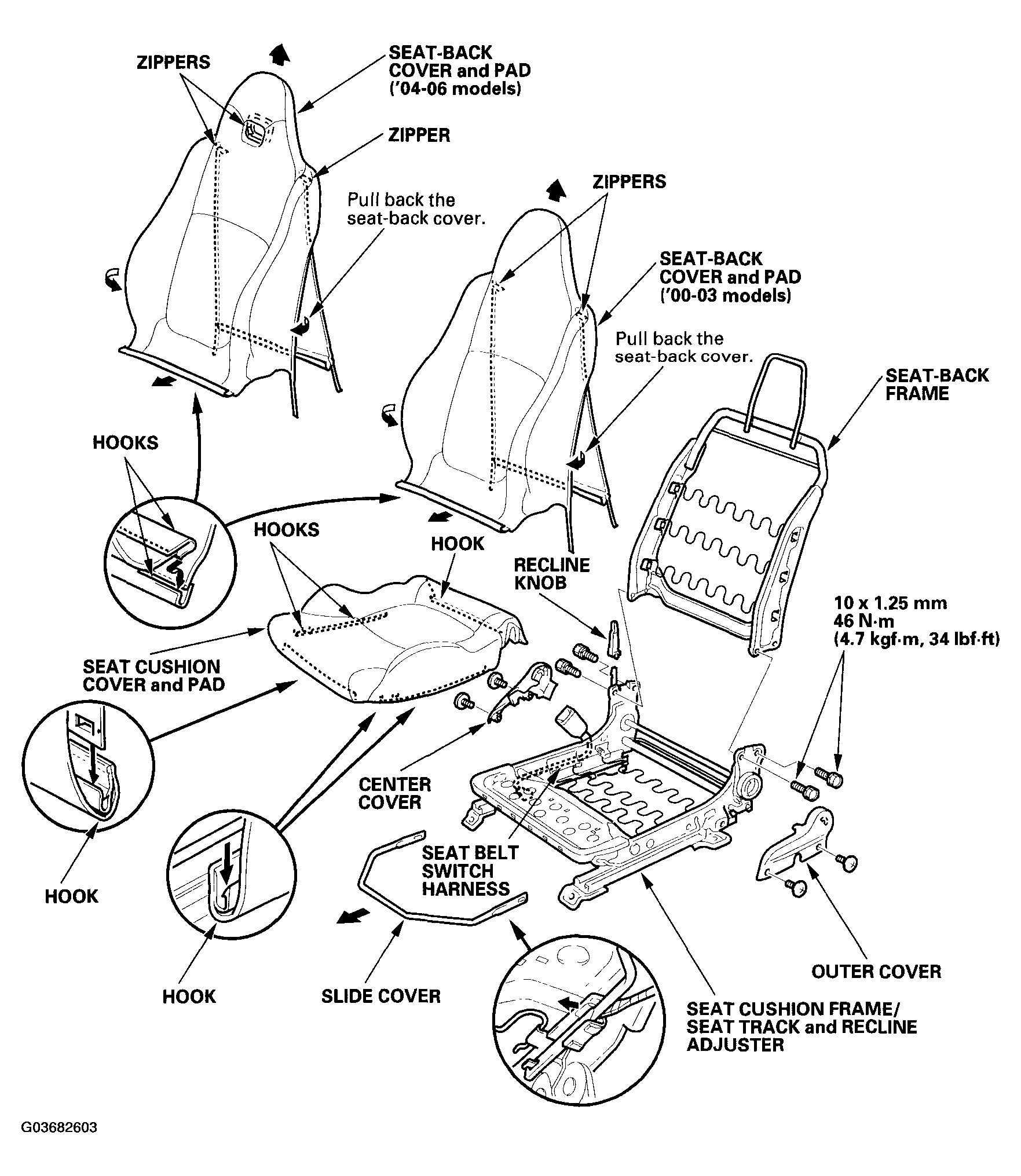

Fig 1: Disassembling Seat Components And Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
