Passenger's Window Motor Test

Remove the passenger's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the passenger's power window motor.

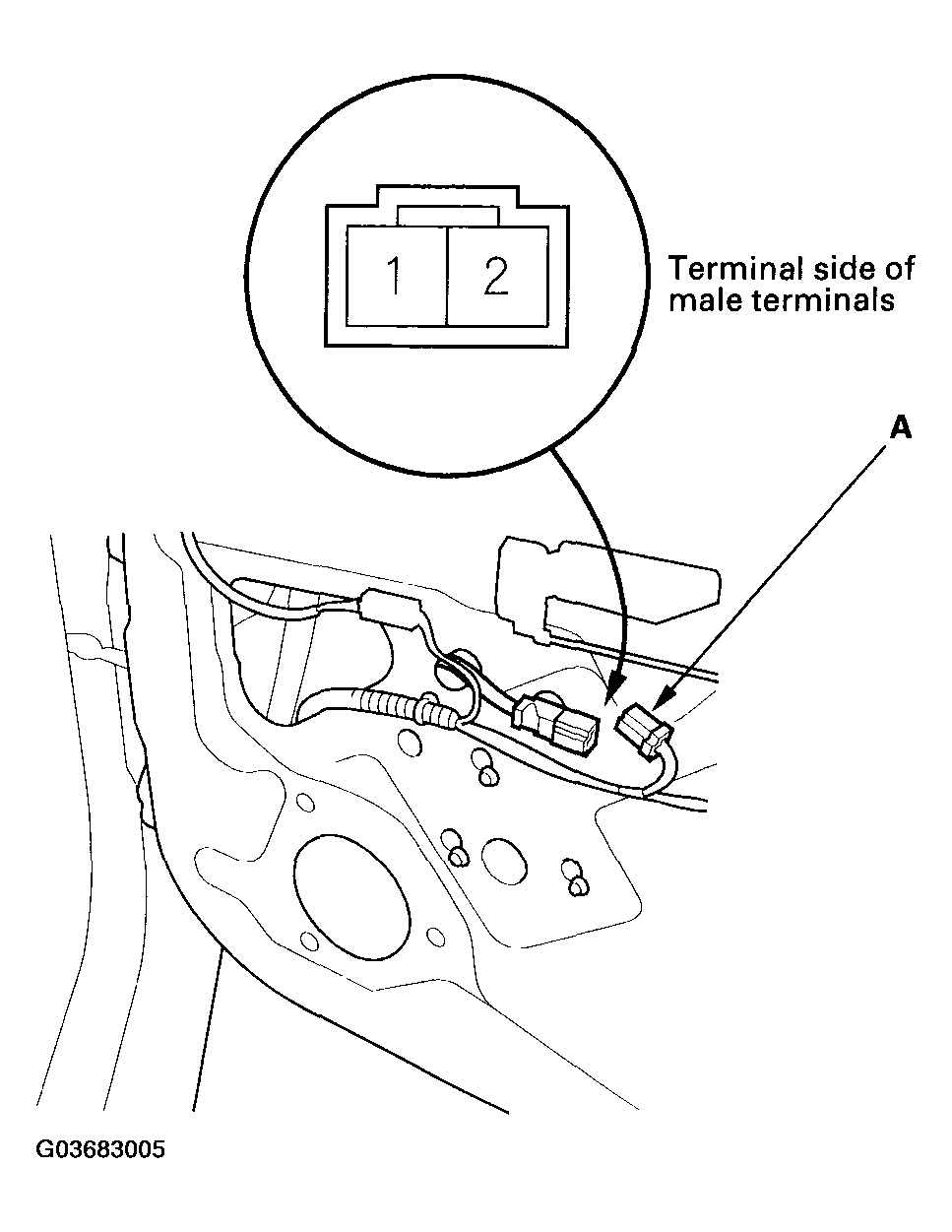

Fig 1: Disconnecting 2P Connector From Passenger's Power Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check window motor operation by connecting power and ground according to the table. When the motor stops running, disconnect one lead immediately.

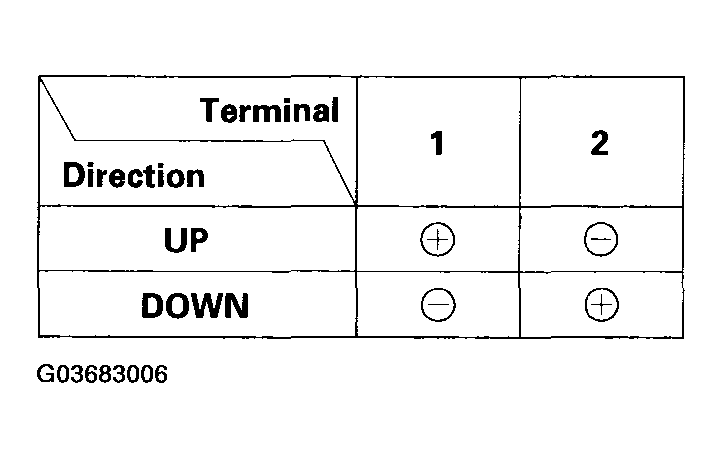

Fig 2: Power And Ground Connection Reference Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
