Cutting Positions

Slip the piano wire through the adhesive at each position as shown, and pull it back as indicated by the arrows.

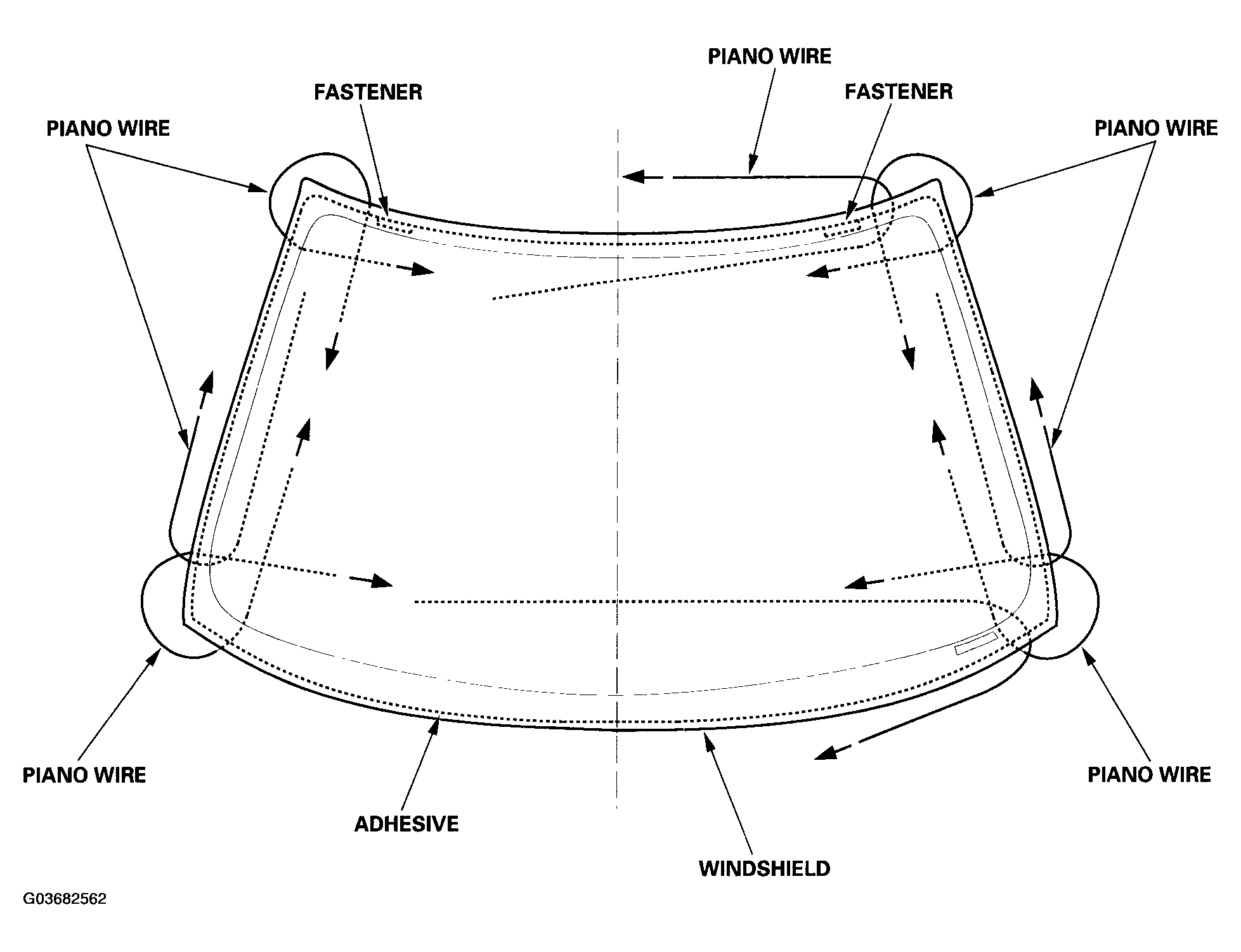

Fig 1: Cutting Adhesive Using Piano Wire
G03682562Courtesy of AMERICAN HONDA MOTOR CO., INC.
