Molding Installation

• Be sure the alignment marks on the molding lines up with the alignment marks on the windshield.
• Attach the molding with adhesive tape.

Adhesive tape: Thickness 0.8 mm (0.03 in.), Width 4 mm (0.16 in.)

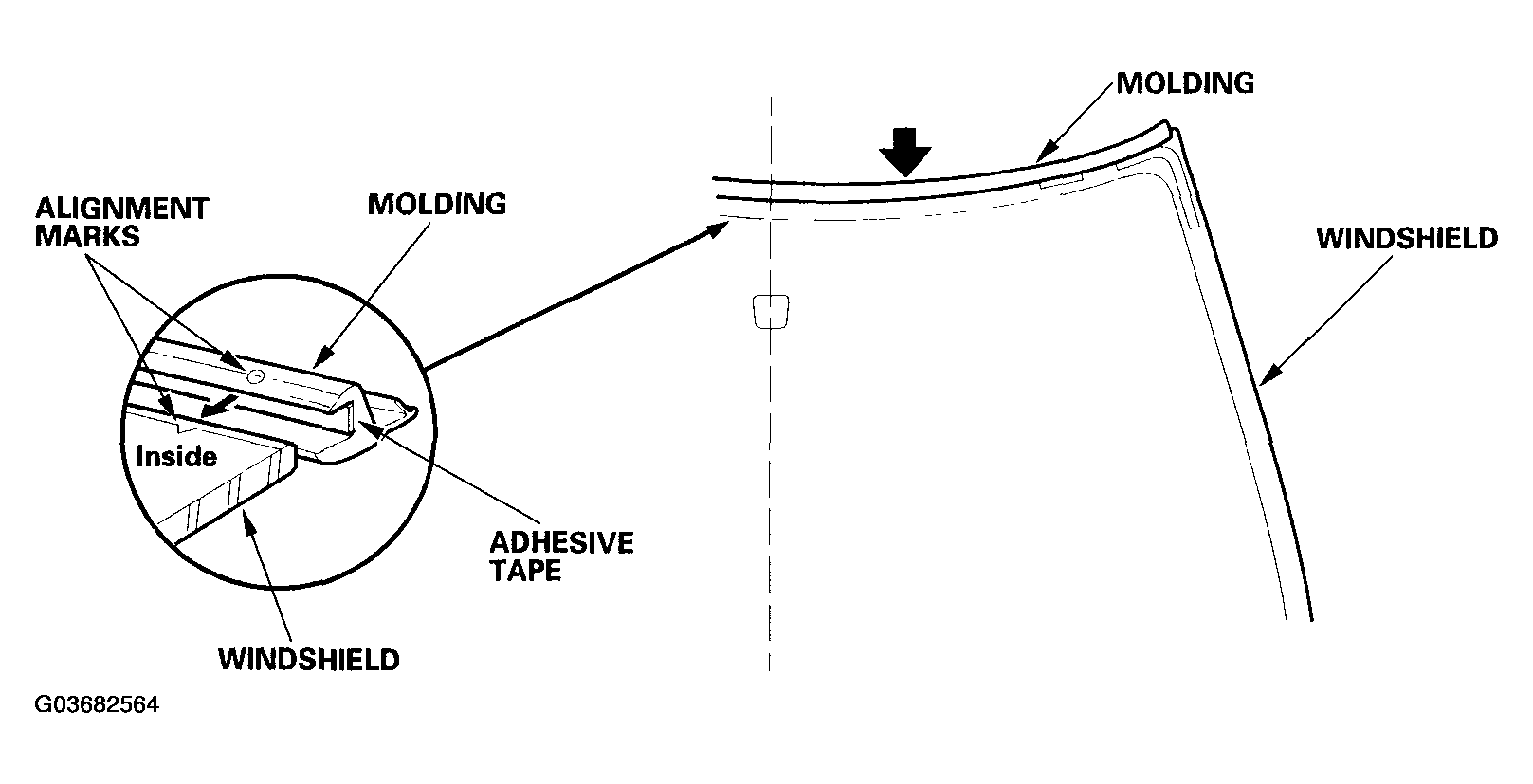

Fig 1: Attaching Molding With Adhesive Tape

Courtesy of AMERICAN HONDA MOTOR CO., INC.
