ABS Modulator-Control Unit Removal and Installation: Removal

Pull up the lock (A) of the ABS modulator-control unit 25P connector (B), then disconnect the connector.

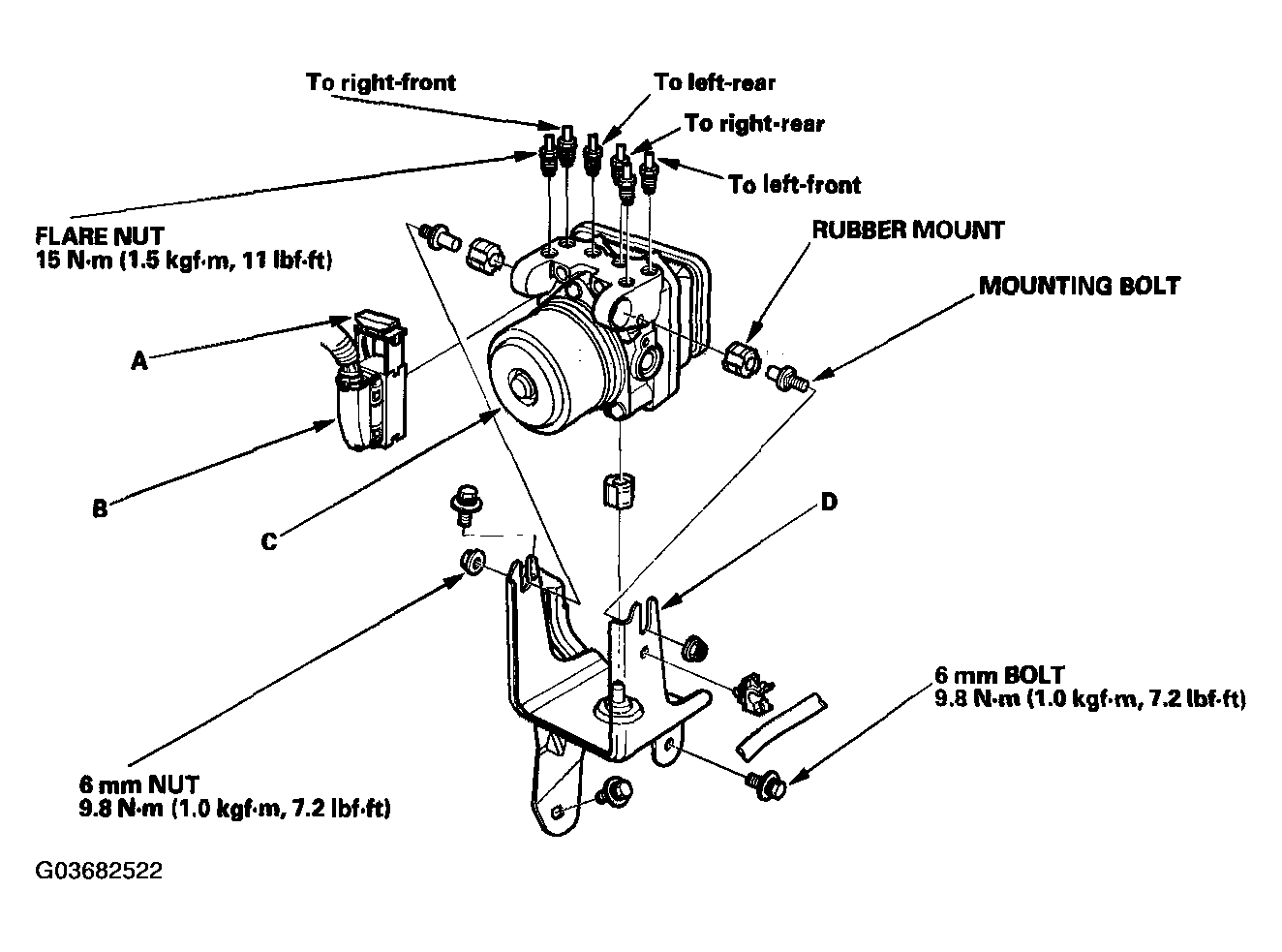

Fig 1: Pulling Up Lock Of ABS Modulator-Control Unit 25P Connector And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the six brake lines.
Remove the two 6 mm nuts.
Remove the ABS modulator-control unit (C) from the bracket (D).
