Under-hood Fuse/Relay Box

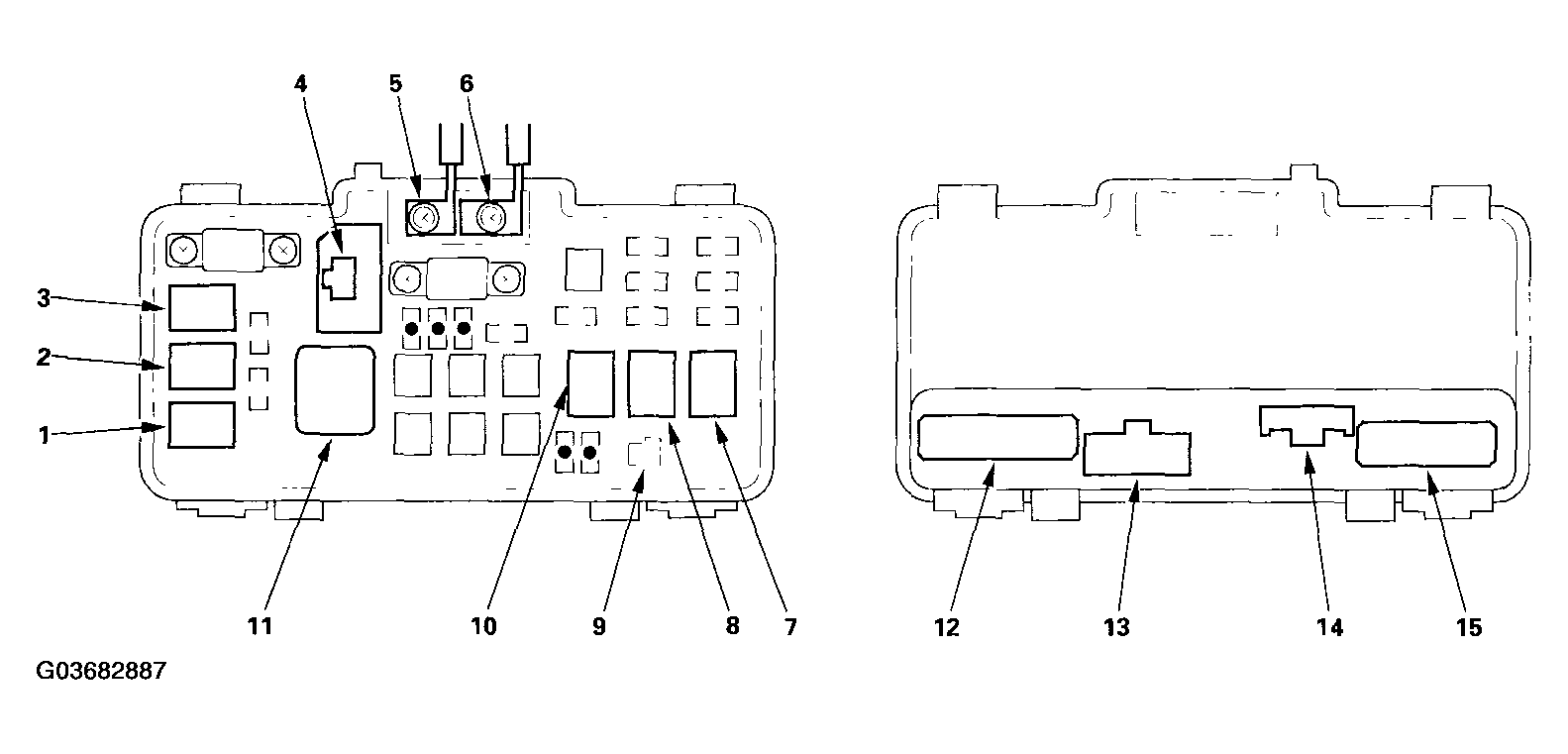

FUSE/RELAY BOX INDEX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 15 | 18 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| A/C compressor clutch relay | 3 | 4 | |
| A/C condenser fan relay | 1 | 4 | |
| B | 14 | 7 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Blower motor relay | 11 | 4 | |
| C | 13 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| D | 12 | 16 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Diode | 9 | 2 | Not used |
| ELD unit | 4 | 3 | Engine compartment wire harness (see ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) ) |
| Horn relay | 10 | 4 | |
| Headlight relay 1 | 7 | 4 | |
| Headlight relay 2 | 8 | 4 | |
| Radiator fan relay | 2 | 4 | |
| T1 | 6 | Starter cable (see STARTER CABLE ) | |
| T101 | 5 | DC-DC converter-driver's door wire harness (see DC-DC CONVERTER-DRIVER'S DOOR WIRE HARNESS ) |
