Under-hood Multi-Relay Box

FUSE/RELAY BOX INDEX

Socket Ref Terminal Connects to
Fan control relay 4 5
PGM-FI main relay (fuel pump) 2 4
Rear window defogger relay 1 4
Windshield wiper intermittent relay 3 5

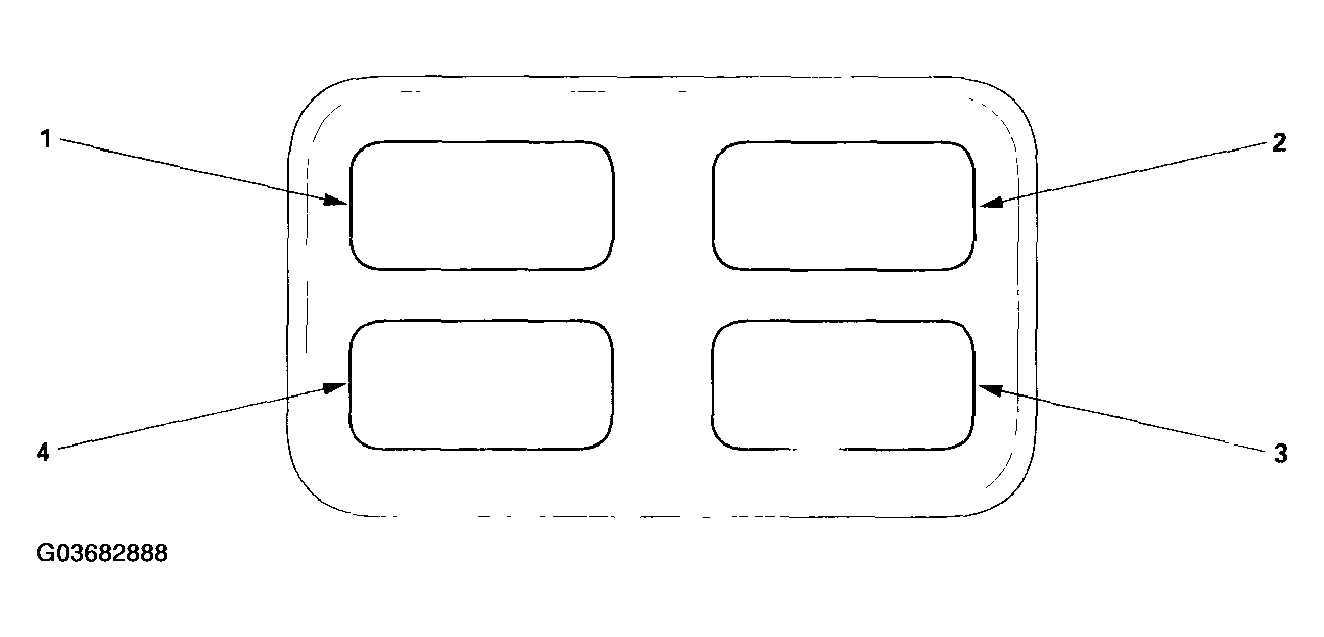

Fig 1: Identifying Under-Hood Multi-Relay Box Relays
G03682888Courtesy of AMERICAN HONDA MOTOR CO., INC.
