Floor and Rear

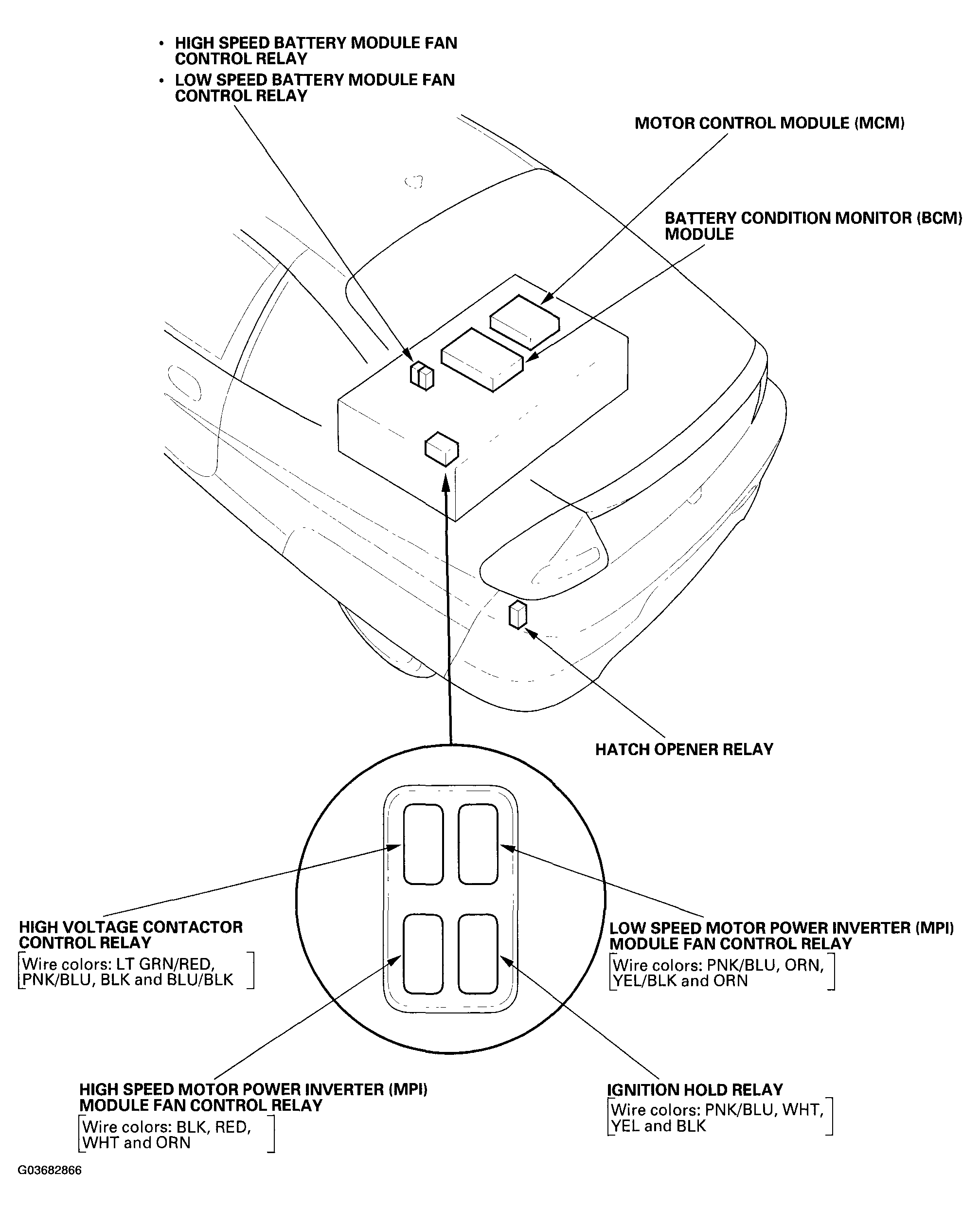

Fig 1: Identifying Floor And Rear Relay And Control Unit Locations
G03682866Courtesy of AMERICAN HONDA MOTOR CO., INC.
