Starter Overhaul: Disassembly/Reassembly

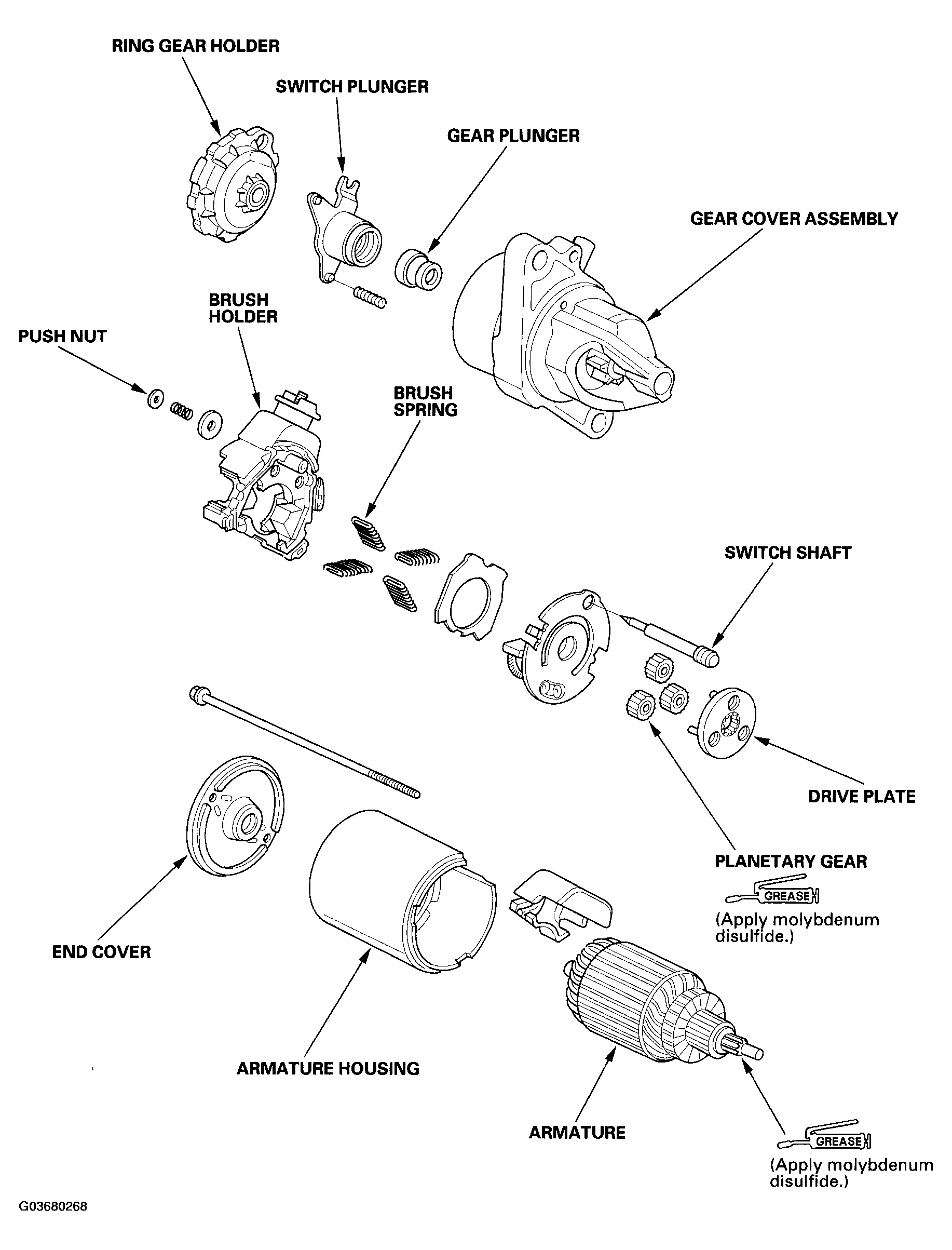

Fig 1: Exploded View Of Starter
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
