Oil Pressure Switch Replacement

  1. Remove the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
  2. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

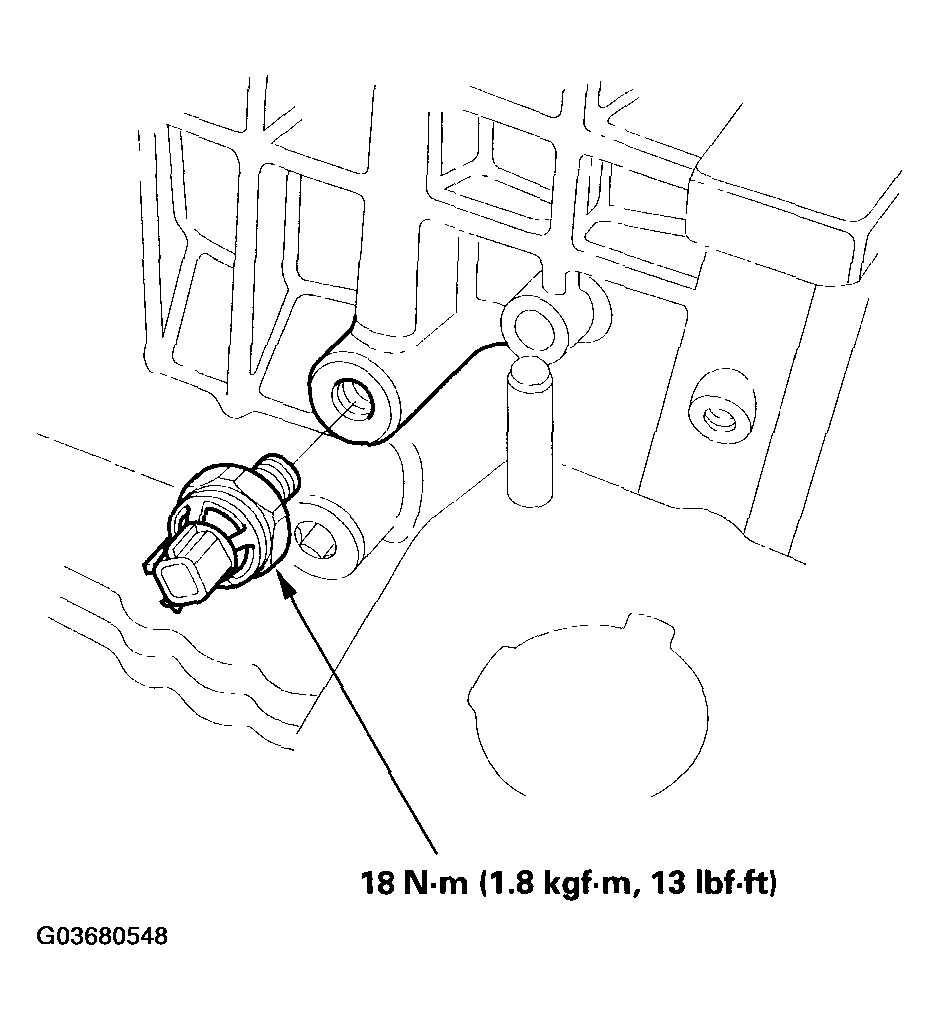

    Fig 1: Removing Oil Pressure Switch
    G03680548Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove any old liquid gasket from the switch and switch mounting hole.
  4. Apply a very small amount of liquid gasket to the new oil pressure switch threads, then install the oil pressure switch.
    NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
  5. Install the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
