Coolant Drain Bolt Installation

NOTE: When installing the drain bolt, always use new washer.

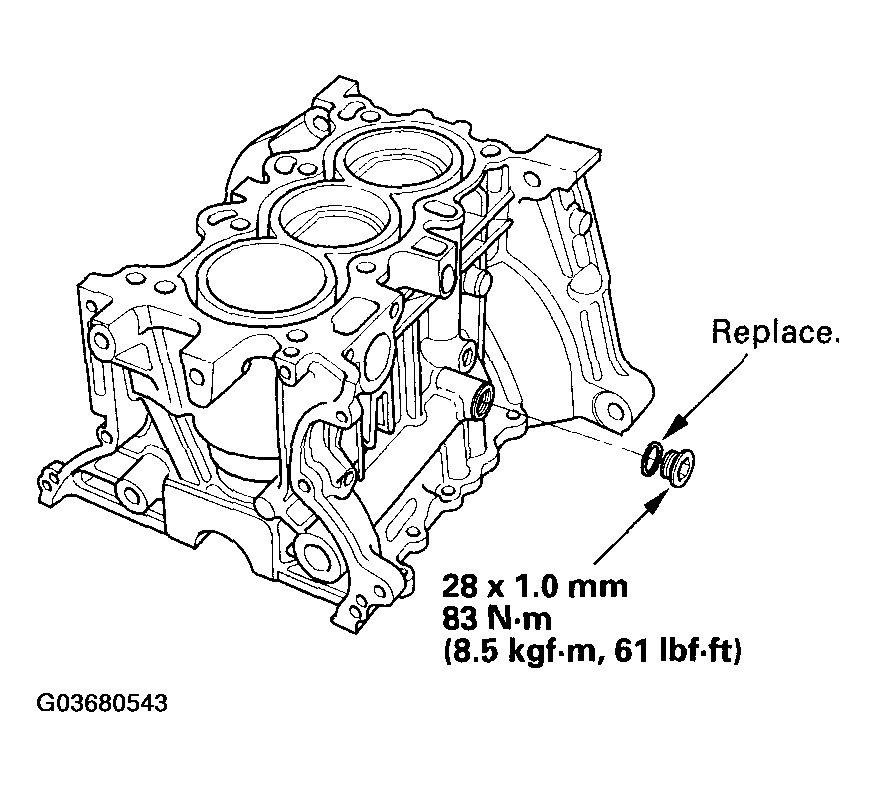

Fig 1: Installing Drain Bolt
G03680543Courtesy of AMERICAN HONDA MOTOR CO., INC.
