Main Journal Code Locations

  1. 2. The main journal codes are stamped on the No. 1 web.
    Fig 1: Identifying Main Journal Code Locations
    G03680494Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. 3. Use the crank bore codes and crank journal codes to select the appropriate replacement bearings from the following table.
    NOTE:
    • Color code is on the edge of the bearing.
    • When using bearing halves of different colors, it does not matter which color is used in the top or bottom.

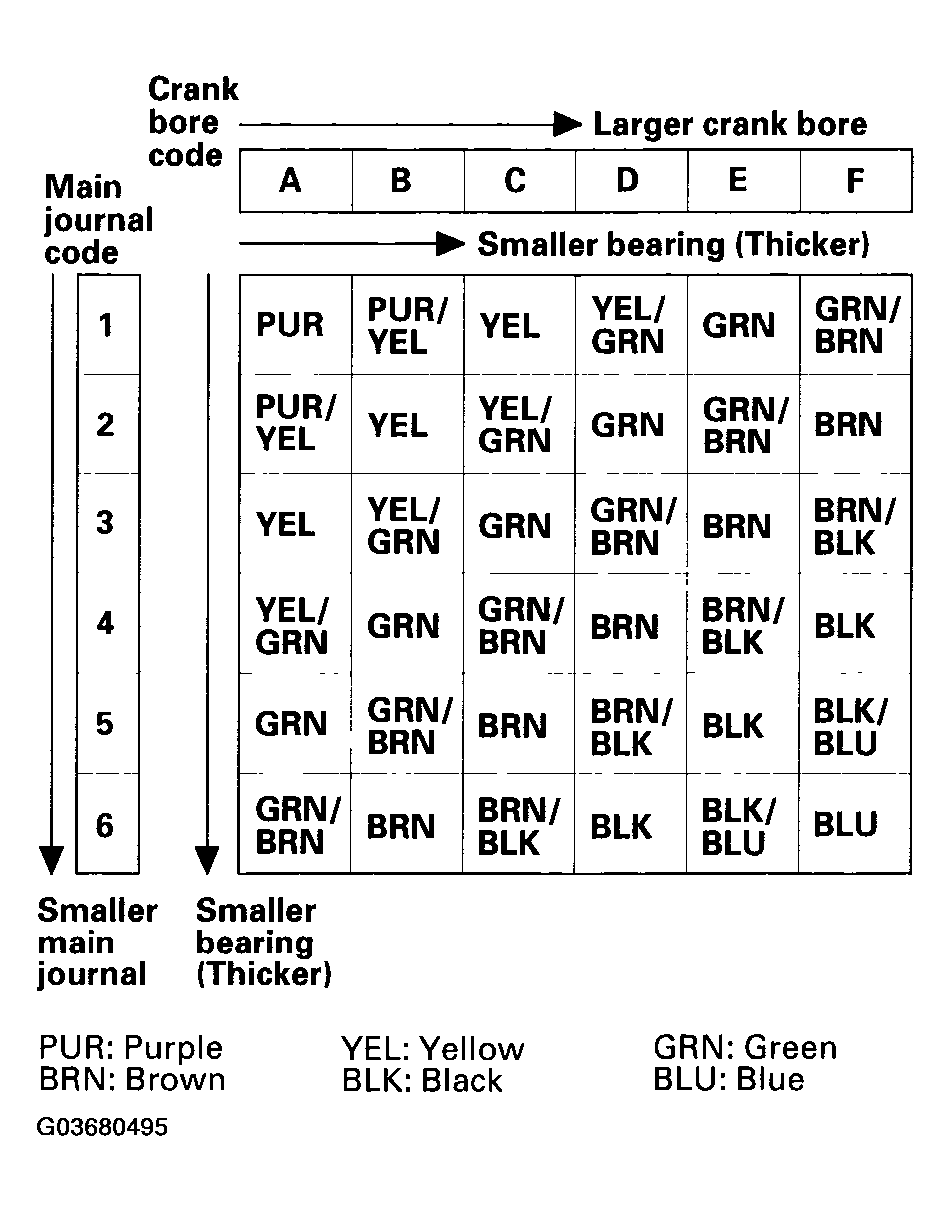

    Fig 2: Color Code Table
    G03680495Courtesy of AMERICAN HONDA MOTOR CO., INC.
