Knock Sensor Replacement

  1. Remove the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
  2. Disconnect the knock sensor connector, then remove the knock sensor.

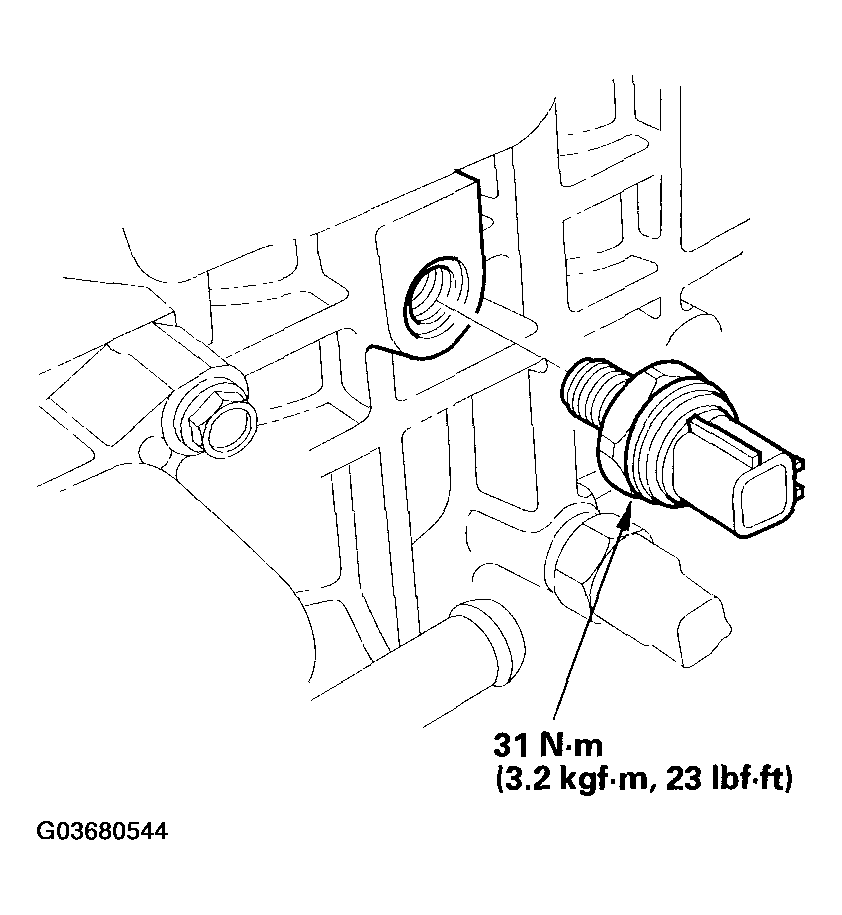

    Fig 1: Disconnecting Knock Sensor Connector And Knock Sensor With Torque Specifications
    G03680544Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the knock sensor.
  4. Install the throttle body (see THROTTLE BODY REMOVAL/INSTALLATION ).
