Engine Mount Replacement

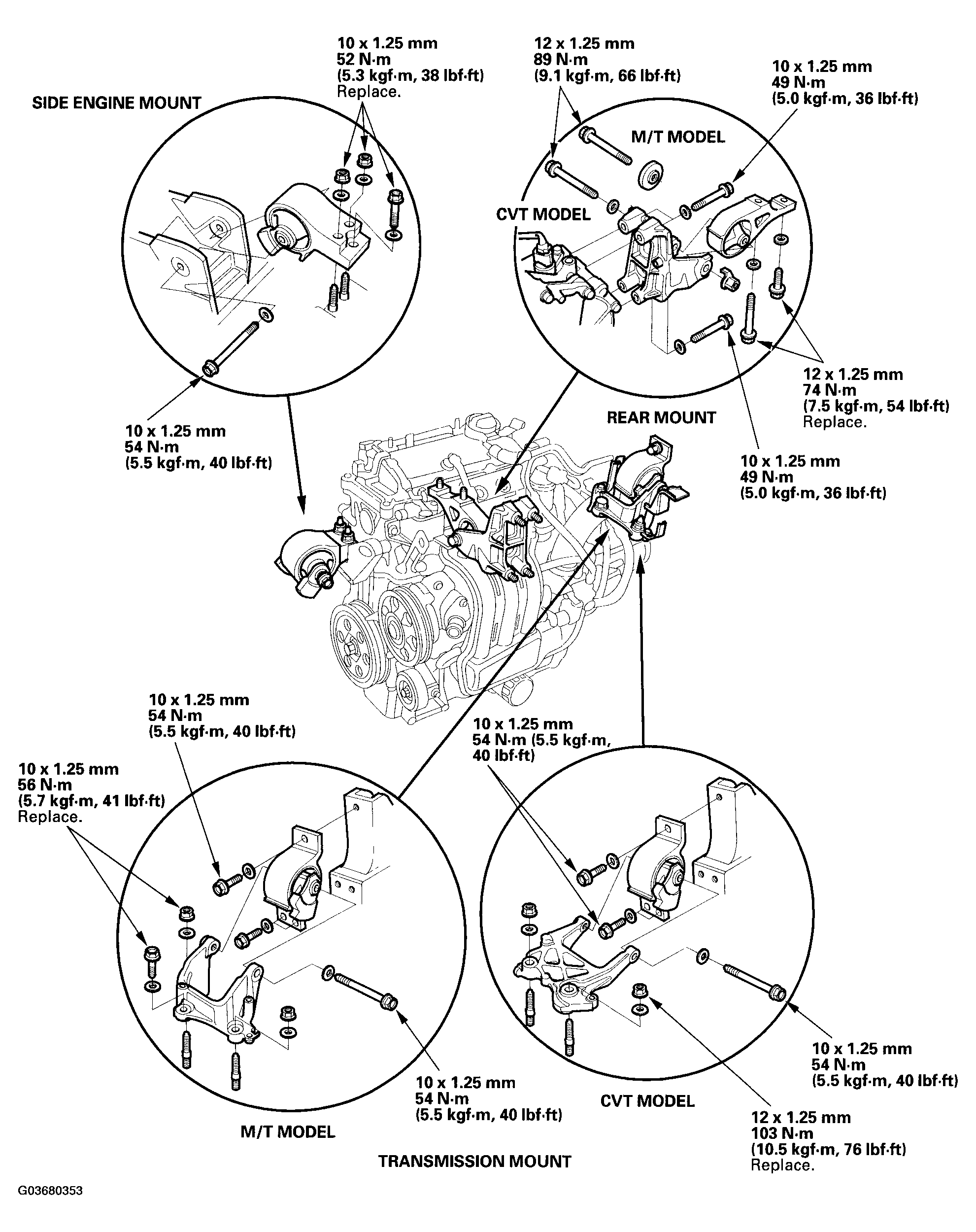

Fig 1: Exploded View Of Engine Mount And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
