Idle Control System Diagram

The idle speed of idle air control by the idle air control (IAC) valve:

• After the engine starts, the IAC valve opens for a certain amount of time. The amount of air is increased to raise the idle speed.
• When the engine coolant temperature is low, the IAC valve is opened to obtain the proper fast idle speed. The amount of bypassed air is controlled in relation to engine coolant temperature.

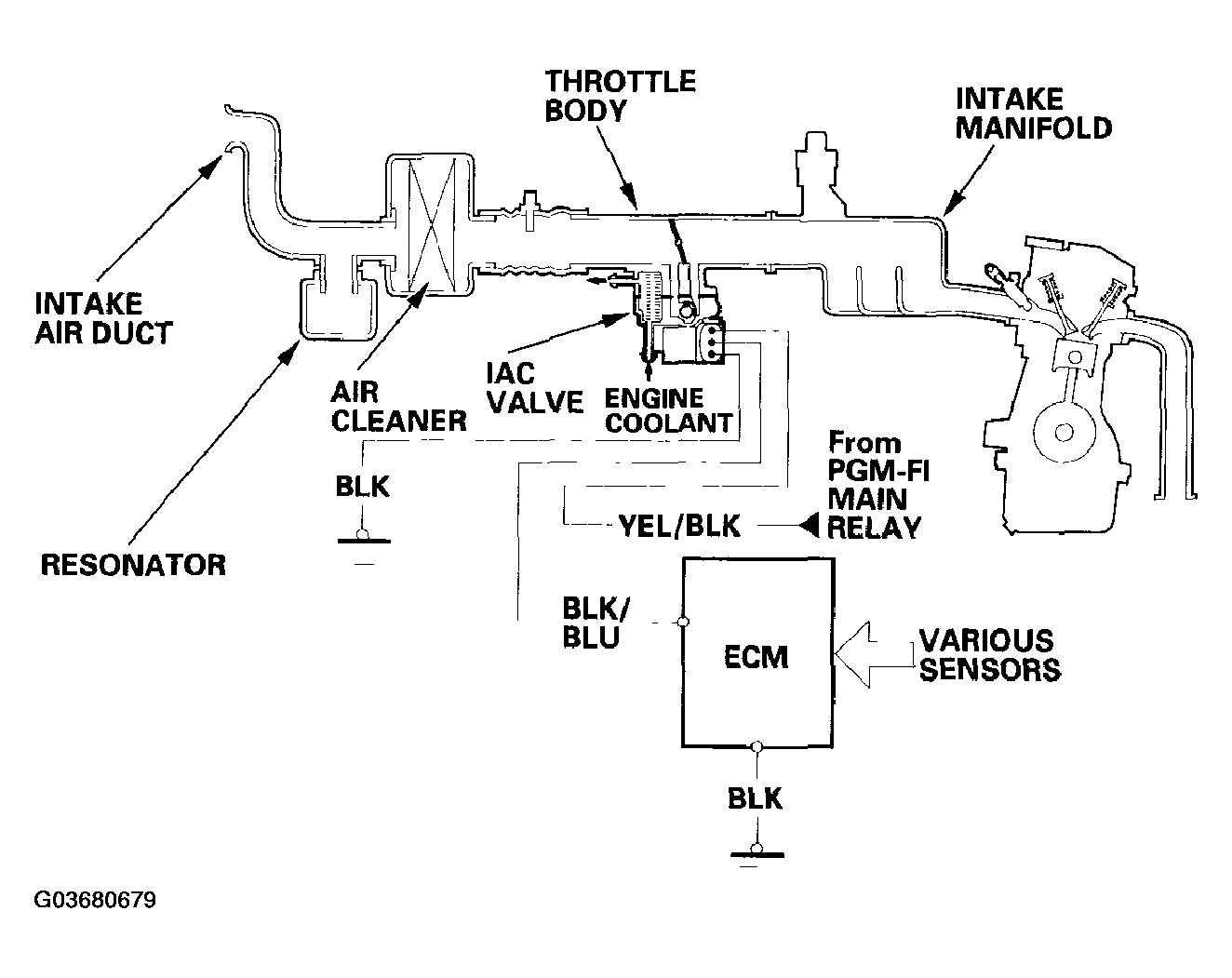

  Fig 1: Identifying Idle Control System Components

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
