Intake Air System Diagram

This system supplies air for engine needs. A resonator in the intake air duct provides additional silencing as air is drawn into the system.

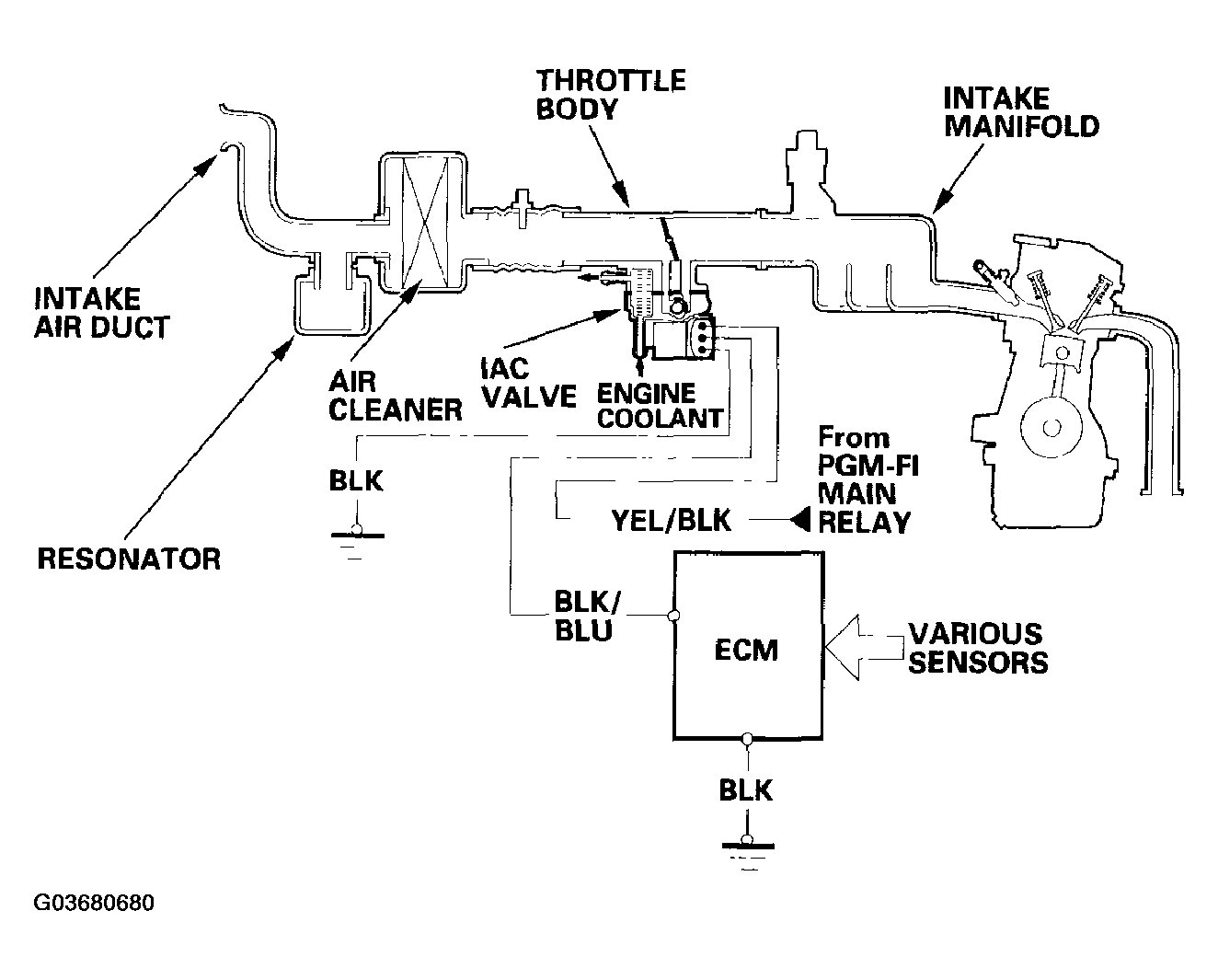

Fig 1: Identifying Intake Air System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
