2000-2005 CVT models

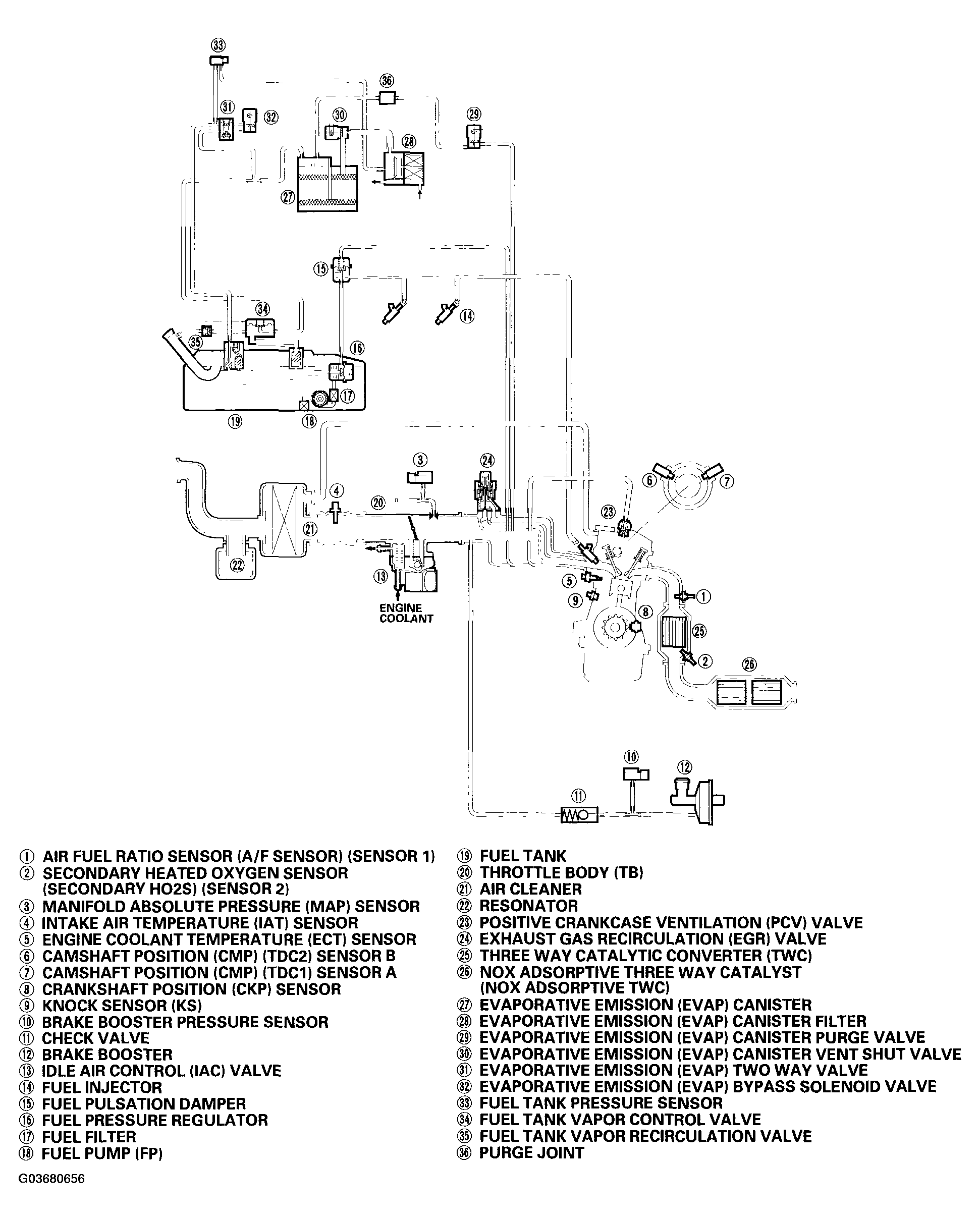

Fig 1: Identifying Vacuum Distribution (2000-2005 CVT Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
