EVAP Canister Vent Shut Valve Replacement

Remove the EVAP canister.

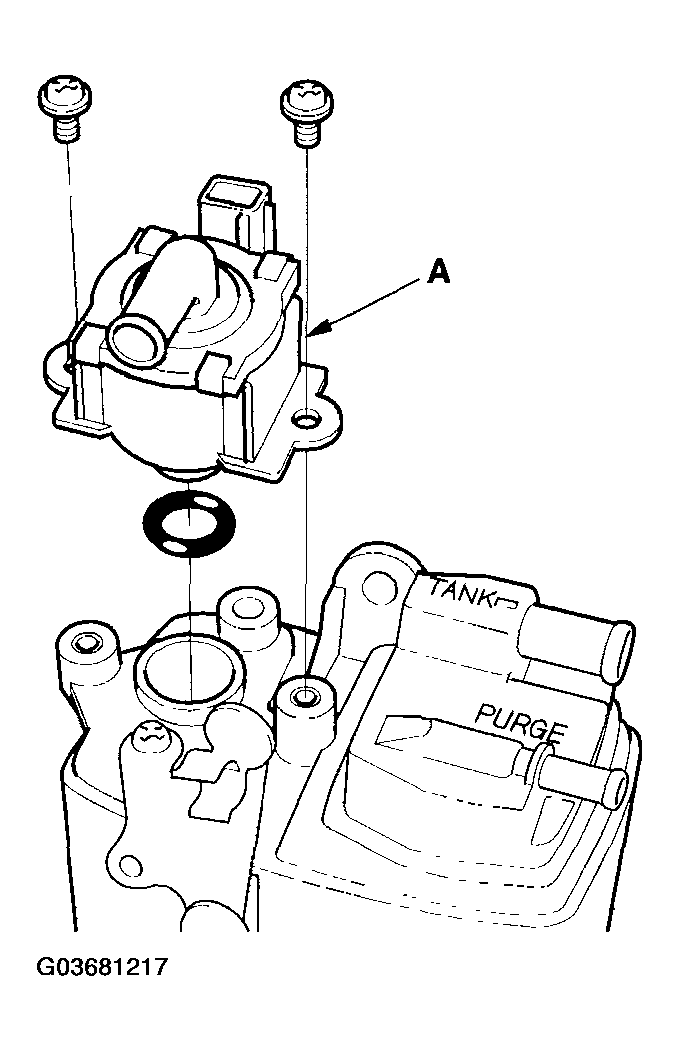

2000-2005 models: Remove the EVAP canister vent shut valve (A).

Fig 1: Removing EVAP Canister Vent Shut Valve (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

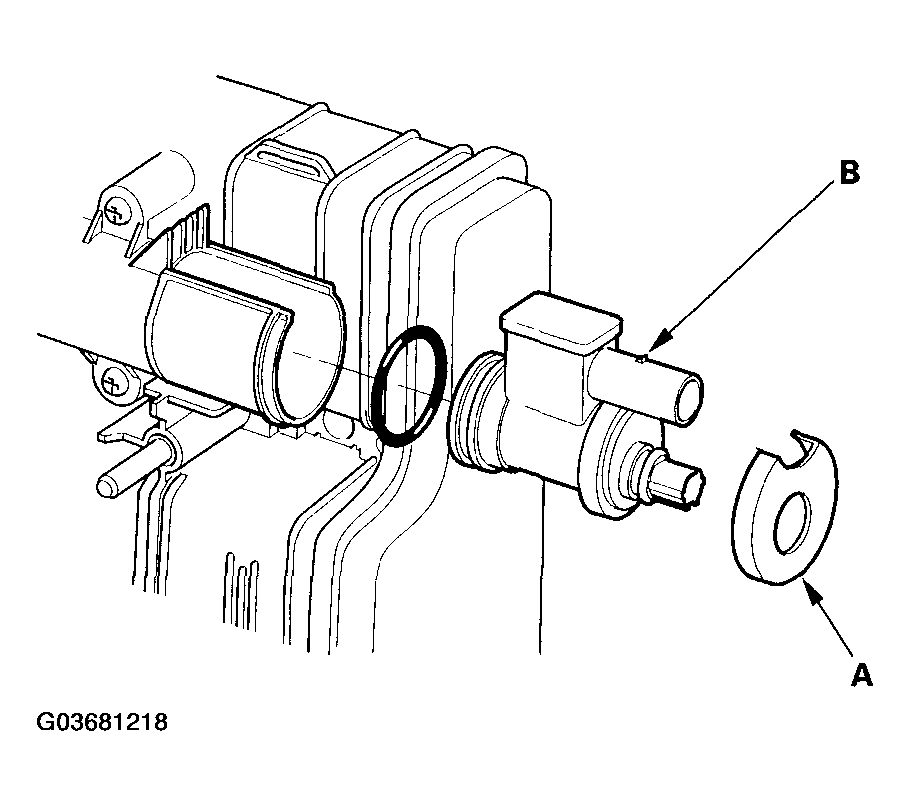

2006 model: Remove the cap (A), then remove the EVAP canister vent shut valve (B).

Fig 2: Removing EVAP Canister Vent Shut Valve (2006 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the valve in the reverse order of removal with a new O-ring.
NOTE: Do not coat the O-ring with engine oil, etc.
