2000-2005 models

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

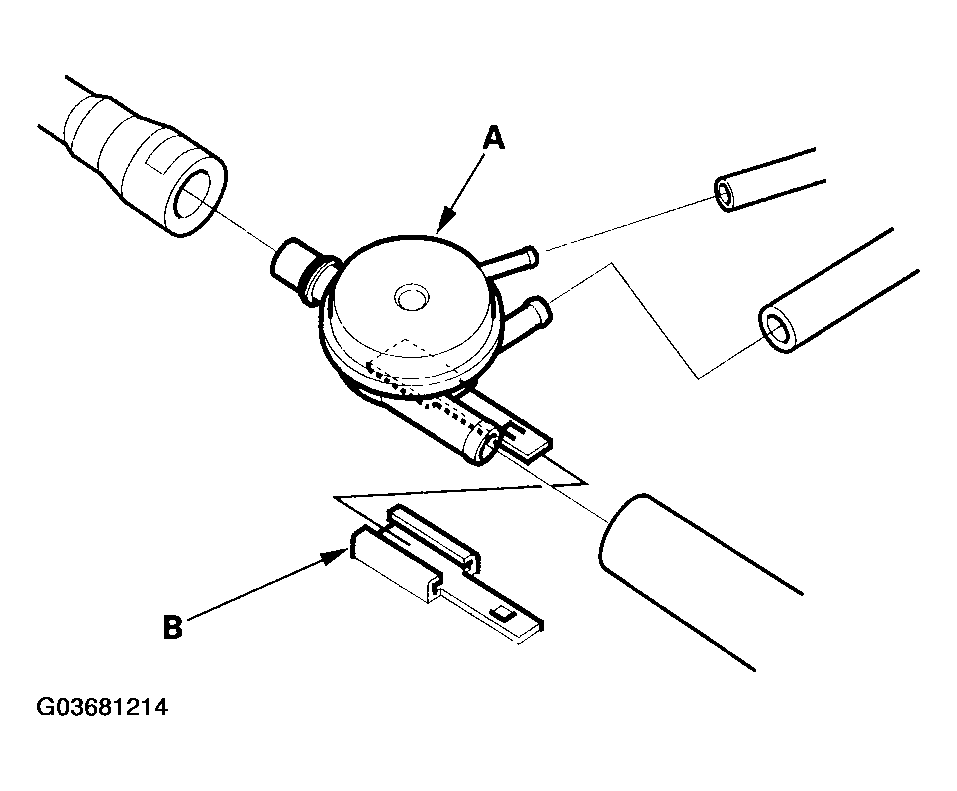

    Fig 1: Removing Fuel Tank Vapor Control Valve From Fuel Tank
    G03681214Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the fuel tank vapor control valve (A).
  4. Install the fuel tank (see FUEL TANK REPLACEMENT ).
