2006 model

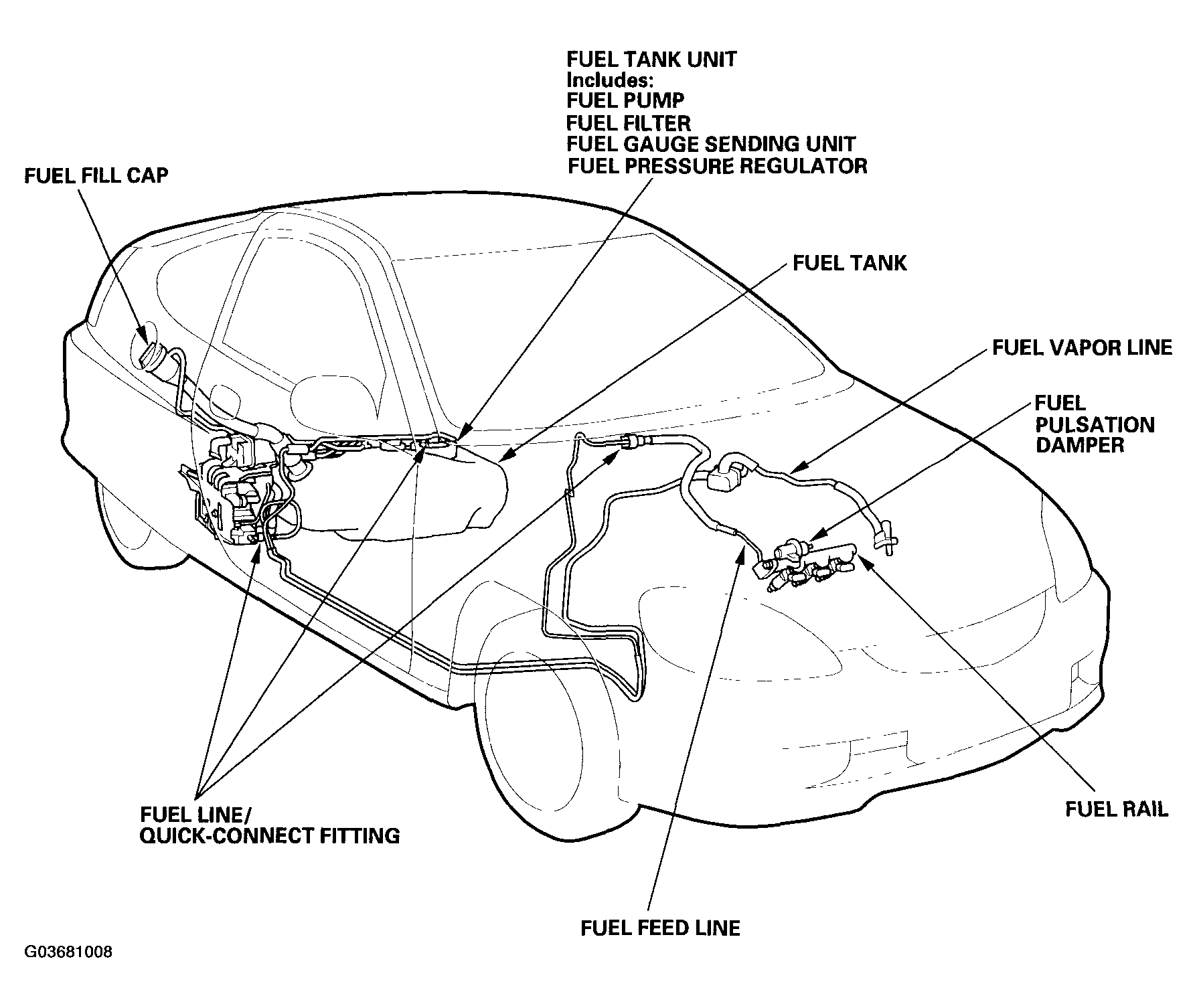

Fig 1: Identifying Fuel Supply System Component Location Index - 2006 Models (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

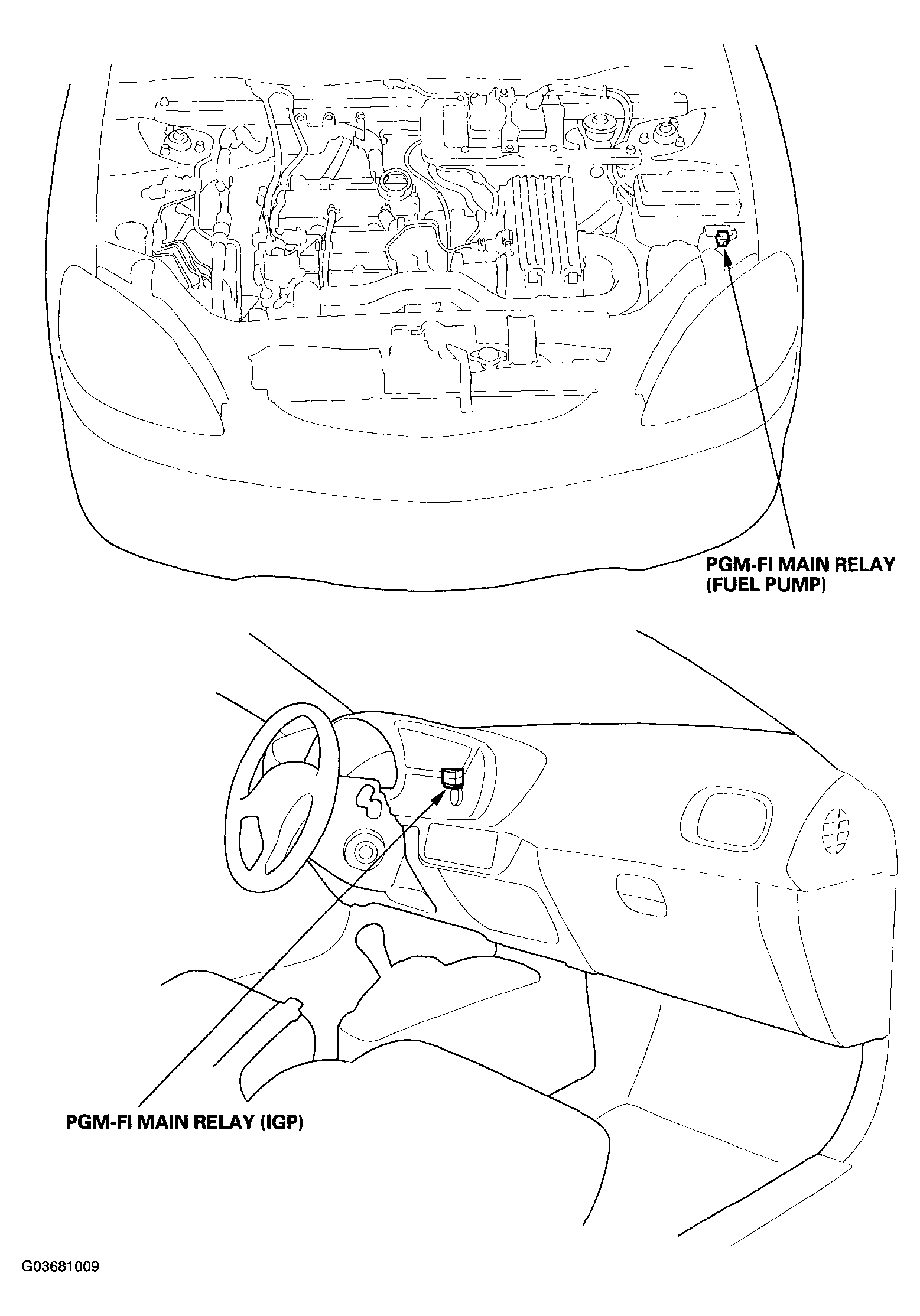

Fig 2: Identifying Fuel Supply System Component Location Index - 2006 Models (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
