2000-2005 CVT models

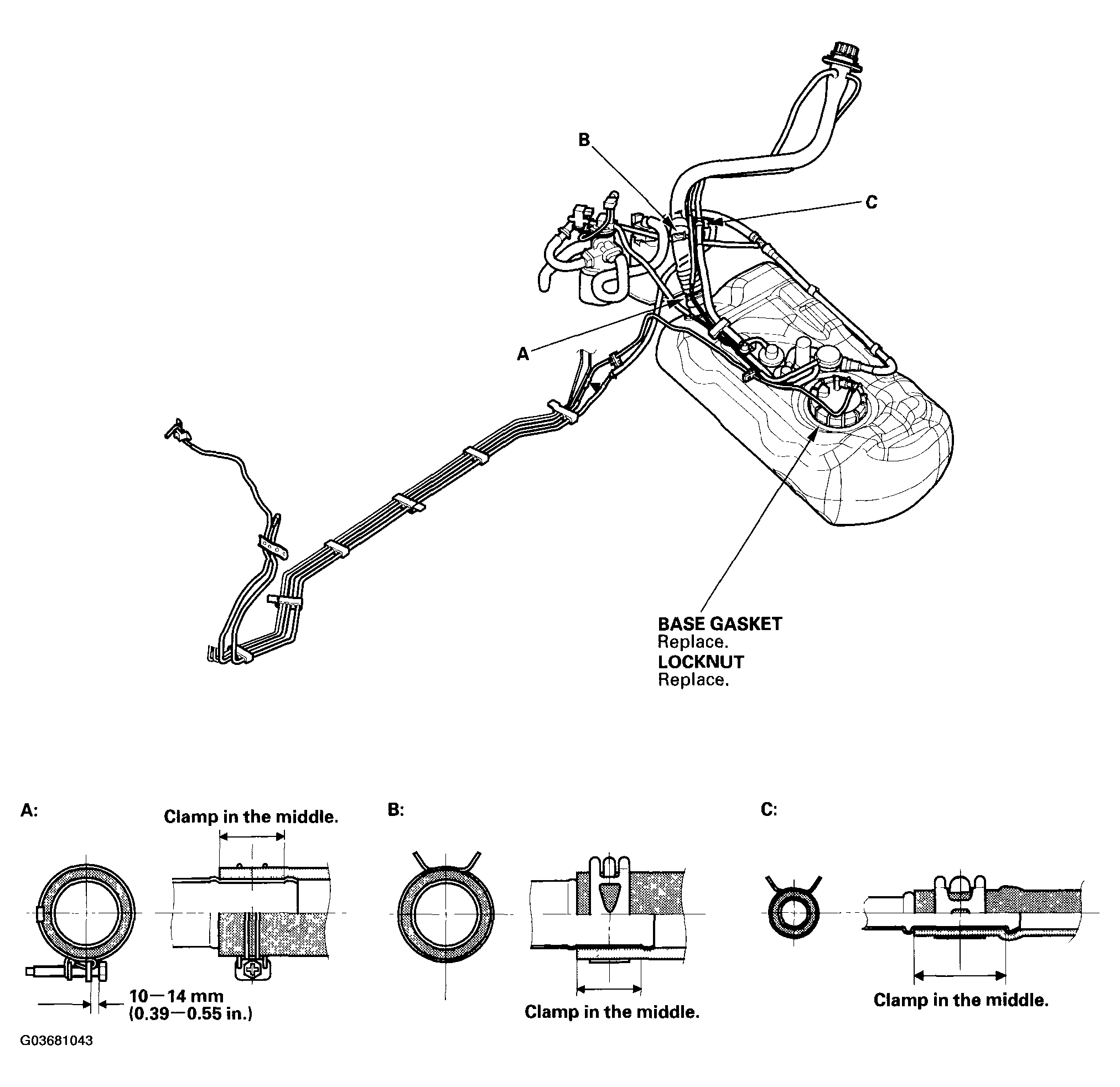

Fig 1: Checking Fuel System Lines All Hose Clamps (2000-2005 CVT Models)
G03681043Courtesy of AMERICAN HONDA MOTOR CO., INC.
