2006 model

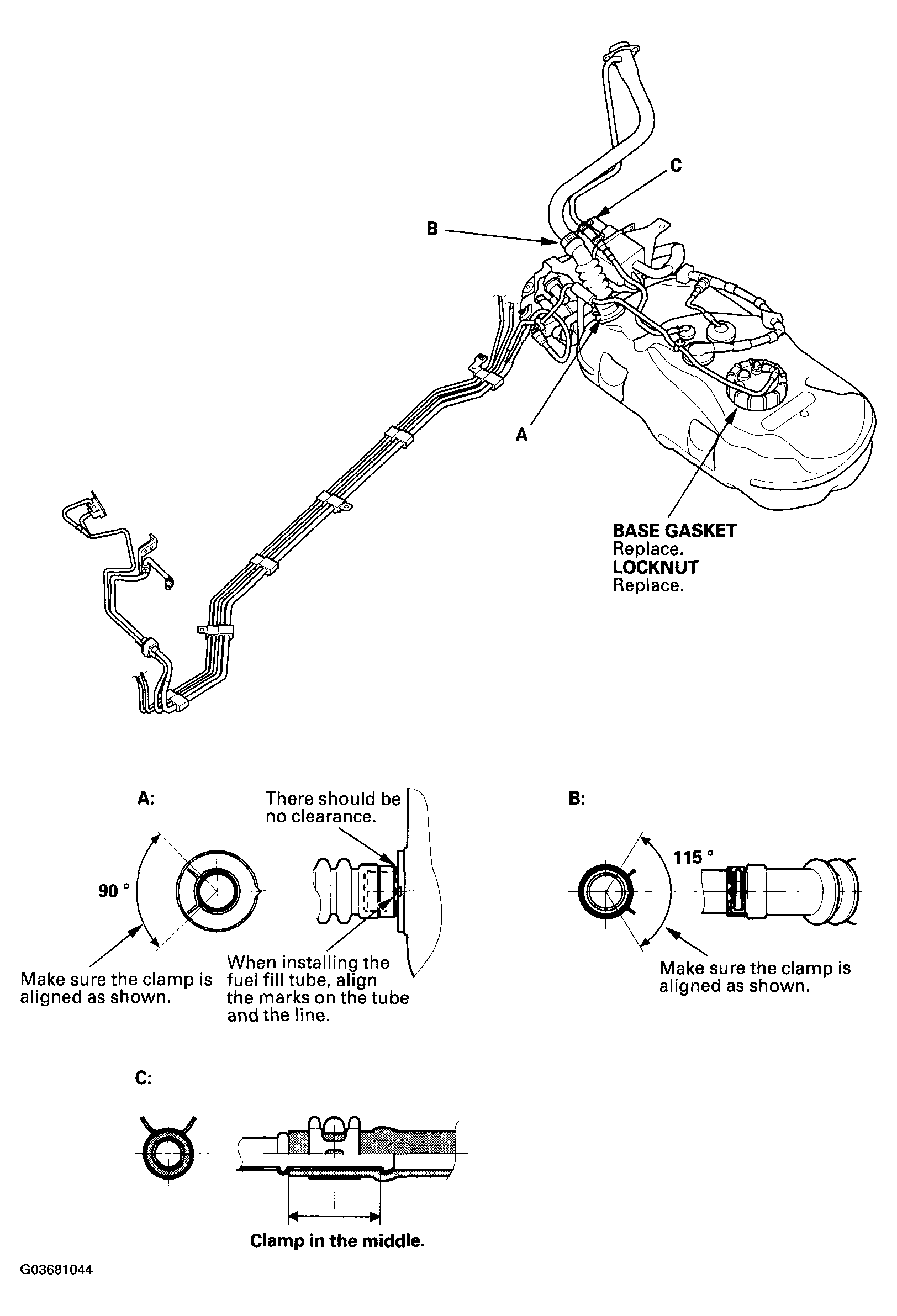

Fig 1: Checking Fuel System Lines, Hoses And Fuel Filter (2006 Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all hose clamps and retighten if necessary.

: Do not disconnect the hose from the line at these joints.

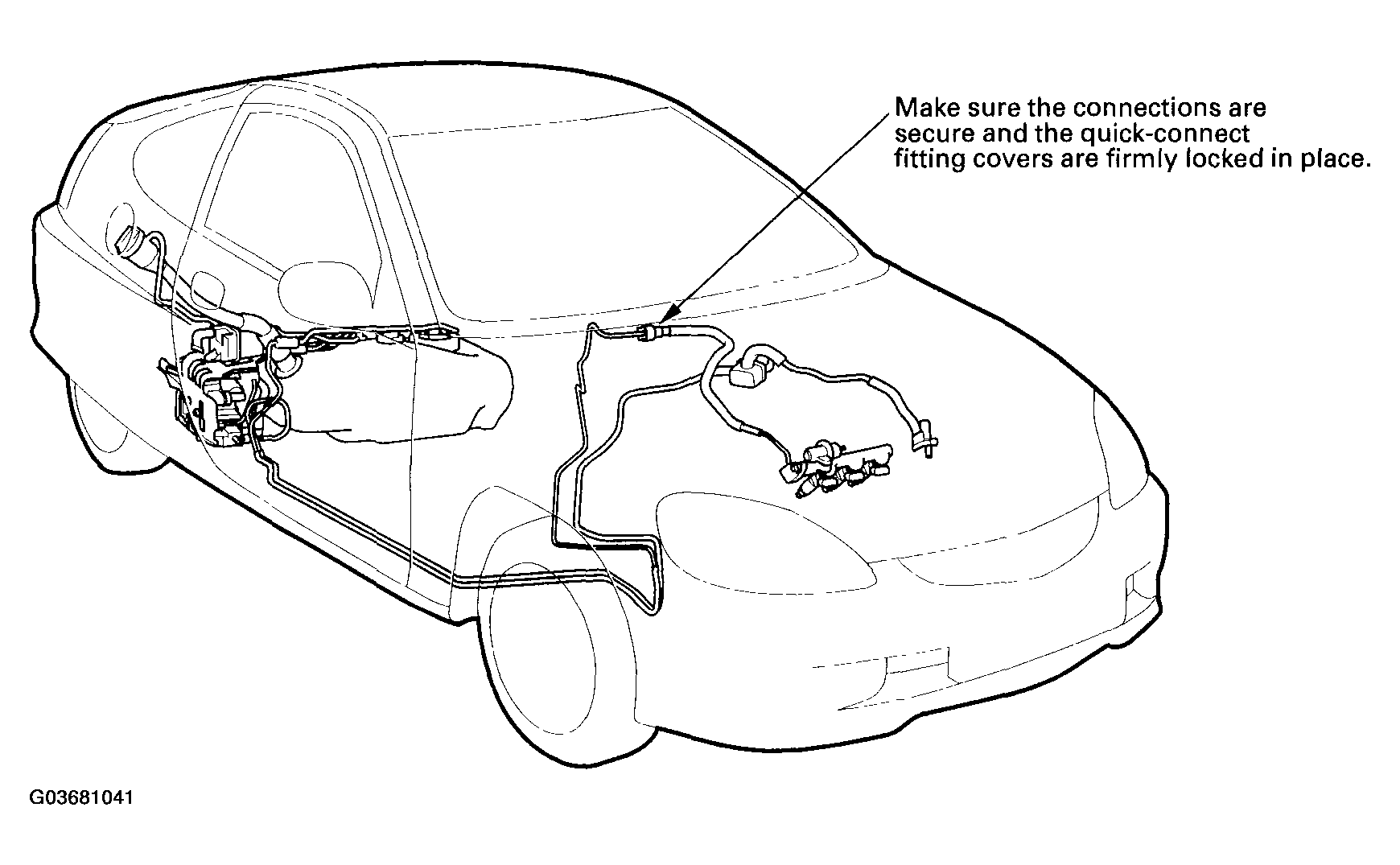

Fig 1: Checking Fuel System Lines All Hose Clamps (2006 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
