2000-2005 models
The fuel line/quick-connect fittings (A), (B) connect the fuel tank unit to the fuel feed line and the fuel return line. When removing or installing the fuel pump and fuel tank, it is necessary to disconnect or connect the quick-connect fittings.
Pay attention to the following:
- The fuel feed hose (C), fuel return hose (D), and quick-connect fittings are not heat-resistant; be careful not to damage them during welding or other heat-generating procedures.
- The fuel feed hose, fuel return hose, and quick-connect fittings are not acid-proof; do not touch them with a shop towel that was used for wiping battery electrolyte. Replace them if they come in contact with electrolyte or something similar.
- When connecting or disconnecting the fuel feed hose, fuel return hose, and quick-connect fittings, be careful not to bend or twist them excessively. Replace them if they are damaged.

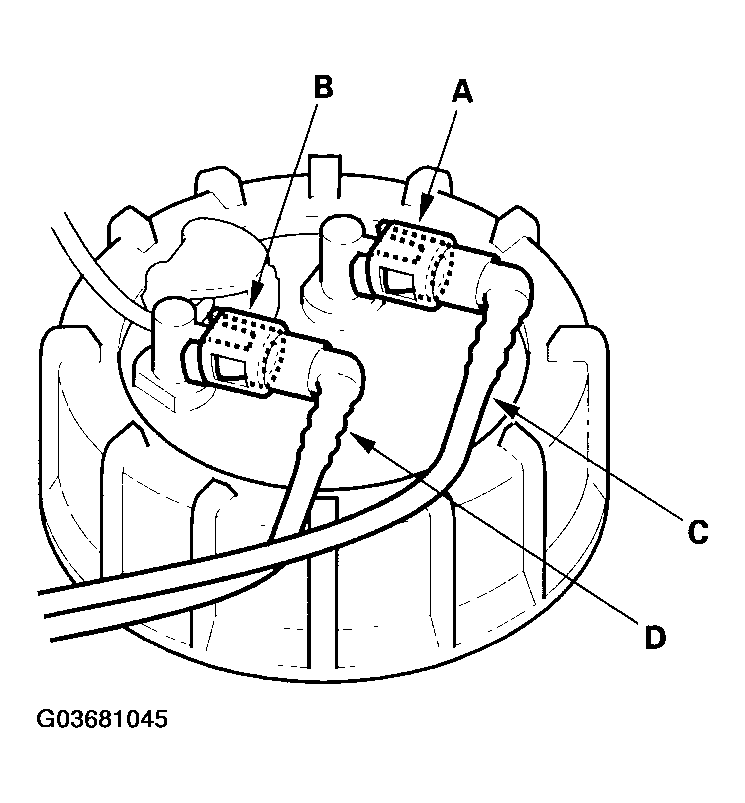

M/T model

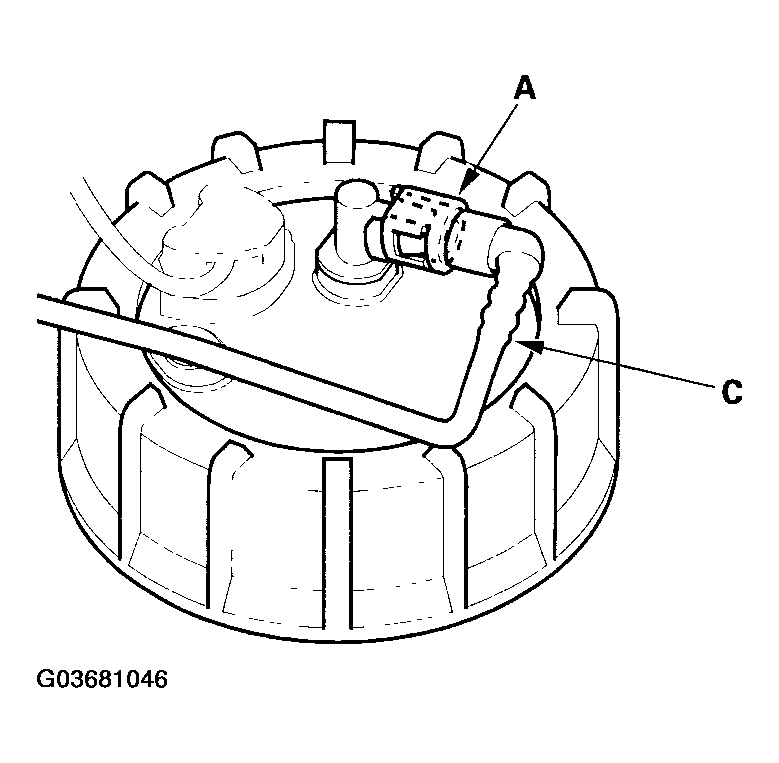

CVT model
A disconnected quick-connect fitting can be reconnected, but the retainer on the mating line cannot be reused once it has been removed from the line. Replace the retainer when:
- replacing the fuel tank.
- replacing the fuel pump.
- replacing the fuel filter.
- replacing the fuel gauge sending unit.
- replacing the fuel feed line.
- replacing the fuel return line.
- it has been removed from the line.
- it is damaged.QUICK-CONNECT FITTING SPECIFICATIONS
Location Manufacturer Retainer color Line diameter A Sanoh White 0.4 in.
(9.5 mm)B Sanoh White 0.3 in.
(8 mm)
