2004-2005 models

1. Make sure you have the anti-theft code for the radio, then write down the audio presets.
2. Disconnect the negative cable from the battery.
3. Remove the fuel fill cap.
4. Use a wrench on the 6 mm service bolt (A) at the fuel rail.

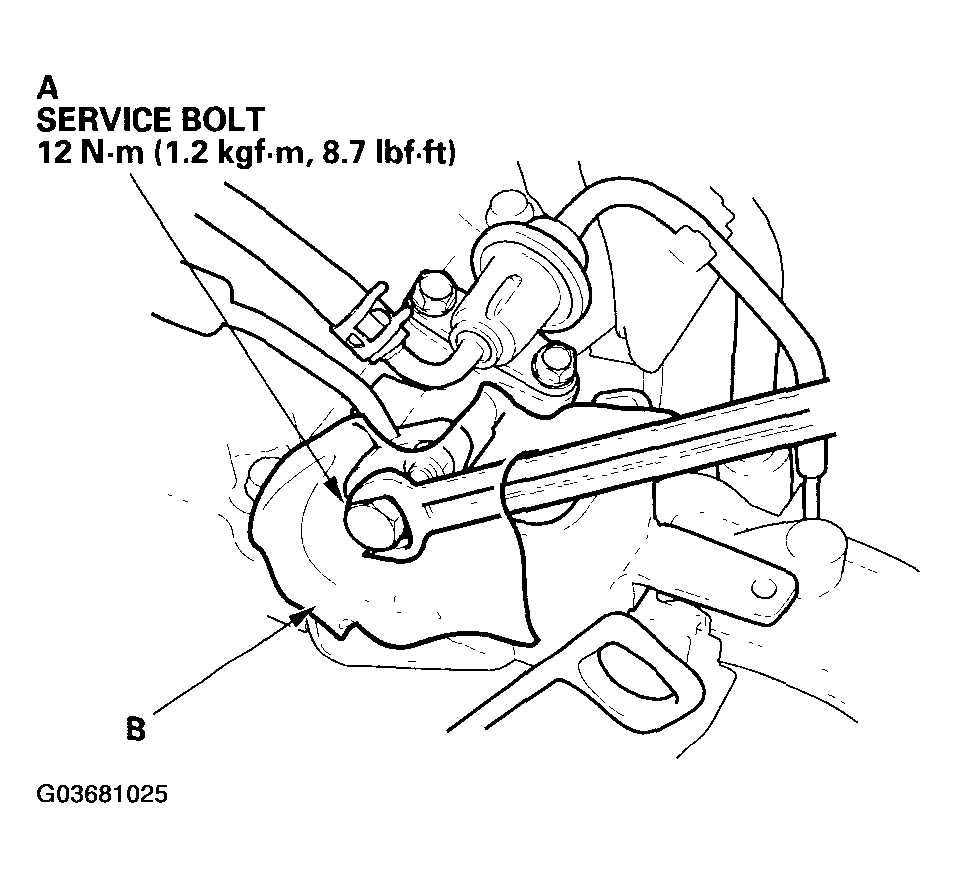

   Fig 1: Loosening Service Bolt At Fuel Rail

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Place a rag or shop towel (B) over the sealing nut.
6. Slowly loosen the 6 mm service bolt one complete turn.
   NOTE: Replace all washers whenever the 6 mm service bolt is loosened or removed.
7. Tighten the sealing nut.
8. Reconnect the battery negative cable.
9. Do the ECM idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
10. Remove the No. 15 (40 A) fuse from the under-hood fuse/relay box.
11. If the IMA battery level gauge (BAT) displays no segments, start the engine, and hold it between 3,500 RPM and 4,000 RPM without load (in Park or neutral) until the BAT displays at least three segments.
12. Reinstall the No. 15 (40 A) fuse.
13. Do the start clutch calibration procedure (see START CLUTCH CALIBRATION PROCEDURES ).
14. Enter the anti-theft code for the radio, then enter the audio presets, and set the clock.

Before disconnecting fuel lines or hoses, relieve pressure from the system by stopping the fuel pump and then disconnecting the fuel tube/quick connect fitting in the engine compartment.
