2006 model

  1. Relieve the fuel pressure (see 2006 MODEL  ).
  2. Raise the vehicle, and support it with jackstands.
  3. Remove the muffler (see COMPONENT LOCATION INDEX ).
  4. Place a jack, or other support, under the tank.
  5. Remove the shield (A), remove the strap bolts, and let the straps (B) fall free.

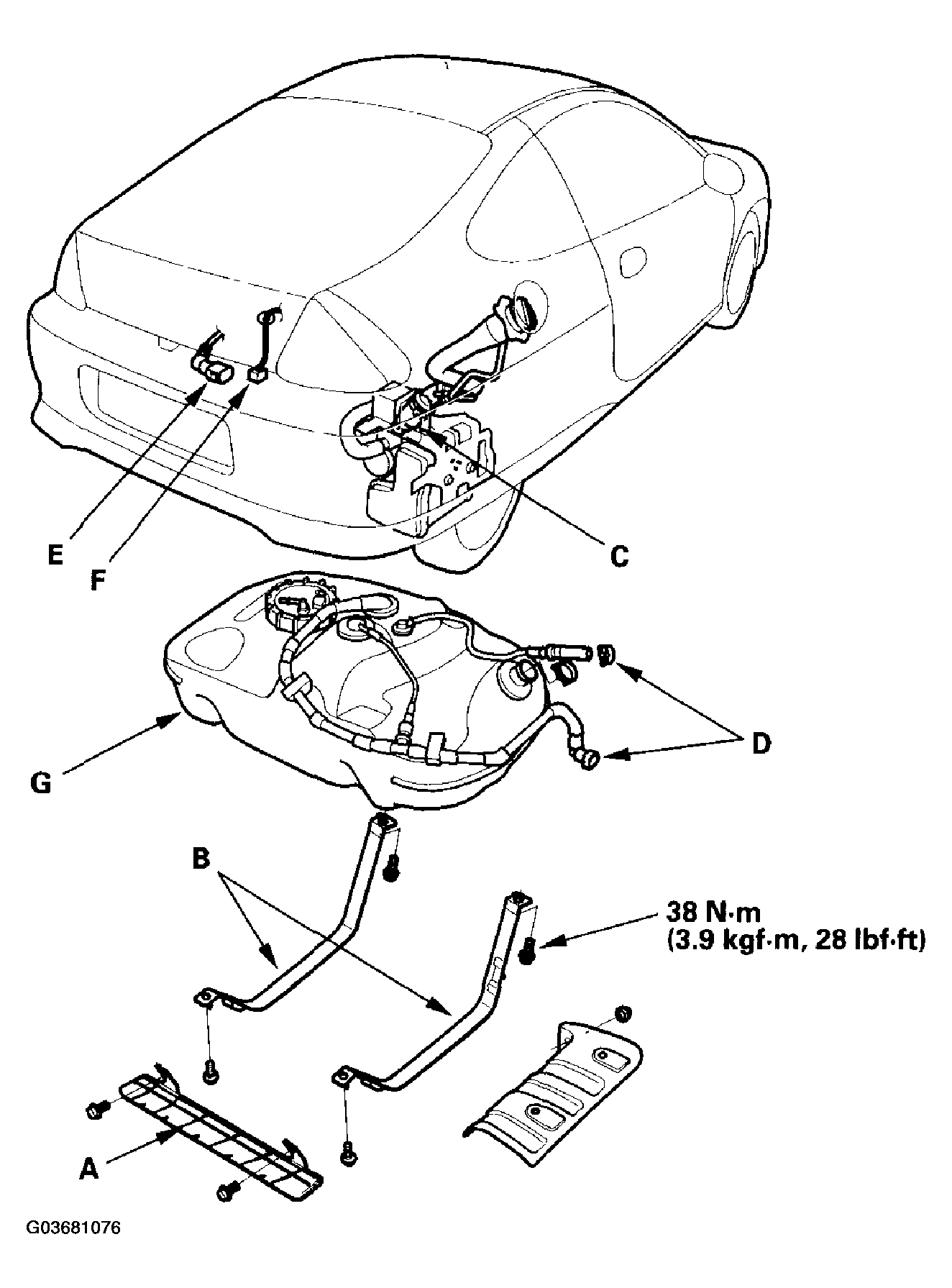

    Fig 1: Removing Fuel Tank And Torque Specifications (2006 Models)
    G03681076Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Disconnect the fuel fill neck tube (C), fuel vapor lines (D) and quick-connect fitting (E).

    Disconnect the hoses. Slide back the clamps, then twist the hoses as you pull to avoid damaging them.

  7. Drain the fuel tank: Using a hand pump, hose, and container suitable for fuel, draw the fuel from the fuel tank.
  8. Disconnect the fuel tank unit 5P connector (F).
  9. Remove the fuel tank (G). If it sticks to the undercoat on its mount, carefully pry it off the mount.
  10. Install the parts in the reverse order of removal.
