Air Cleaner Element Inspection/Replacement

NOTE: Do not use compressed air to clean air cleaner element.

Remove the air cleaner housing cover (A).

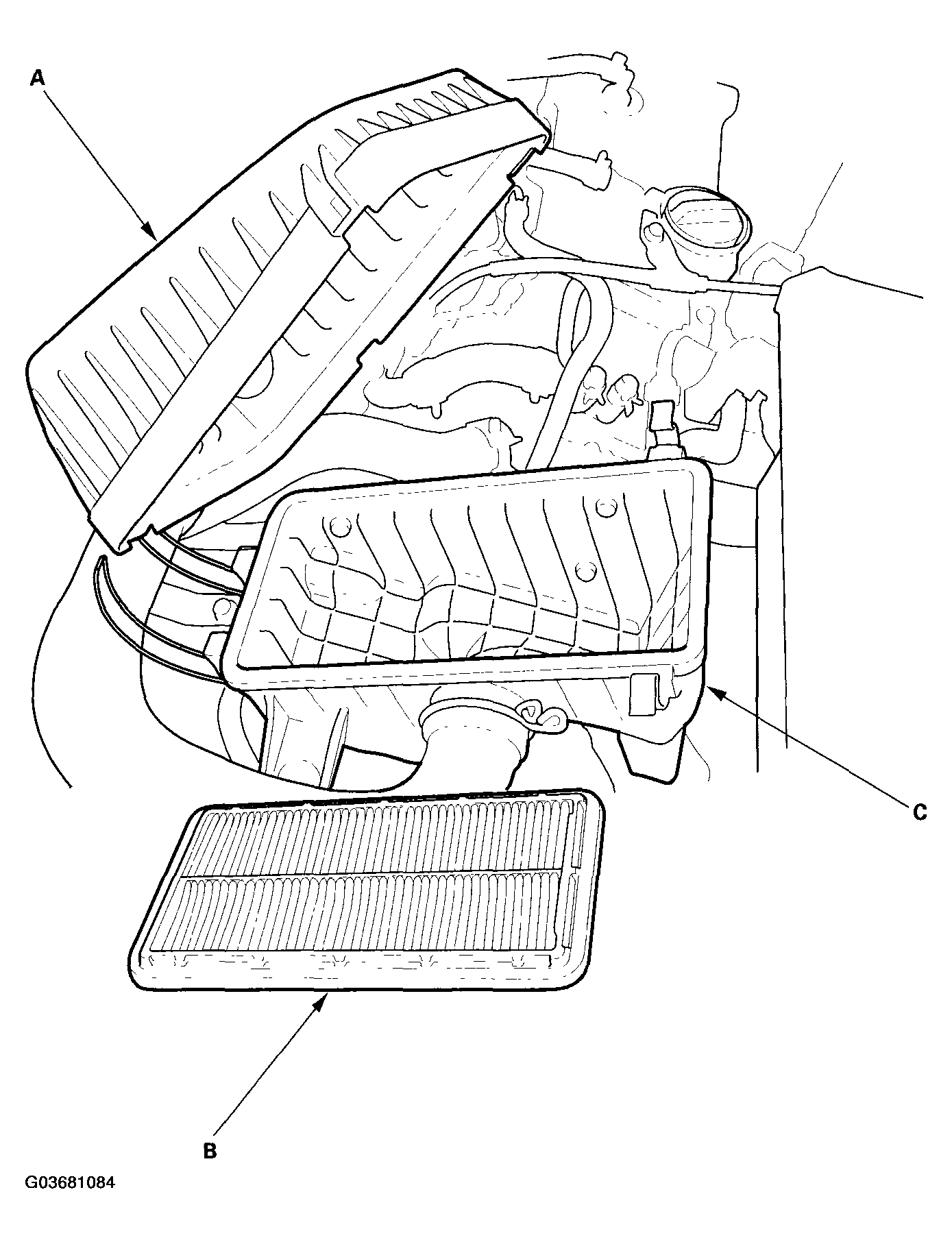

Fig 1: Removing Air Cleaner Housing Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the air cleaner element (B) from the air cleaner housing (C).
Check the air cleaner element for damage or clogging. If the element is clogged, replace it. Clean and remove any debris from inside the air cleaner housing.
Install the parts in the reverse order of removal.
