Throttle Body Removal/Installation

NOTE:
  • Do not adjust the throttle stop screw.
  • After reassembly, adjust the throttle cable (see THROTTLE CABLE ADJUSTMENT  ).
  • The TP sensor is not removable.

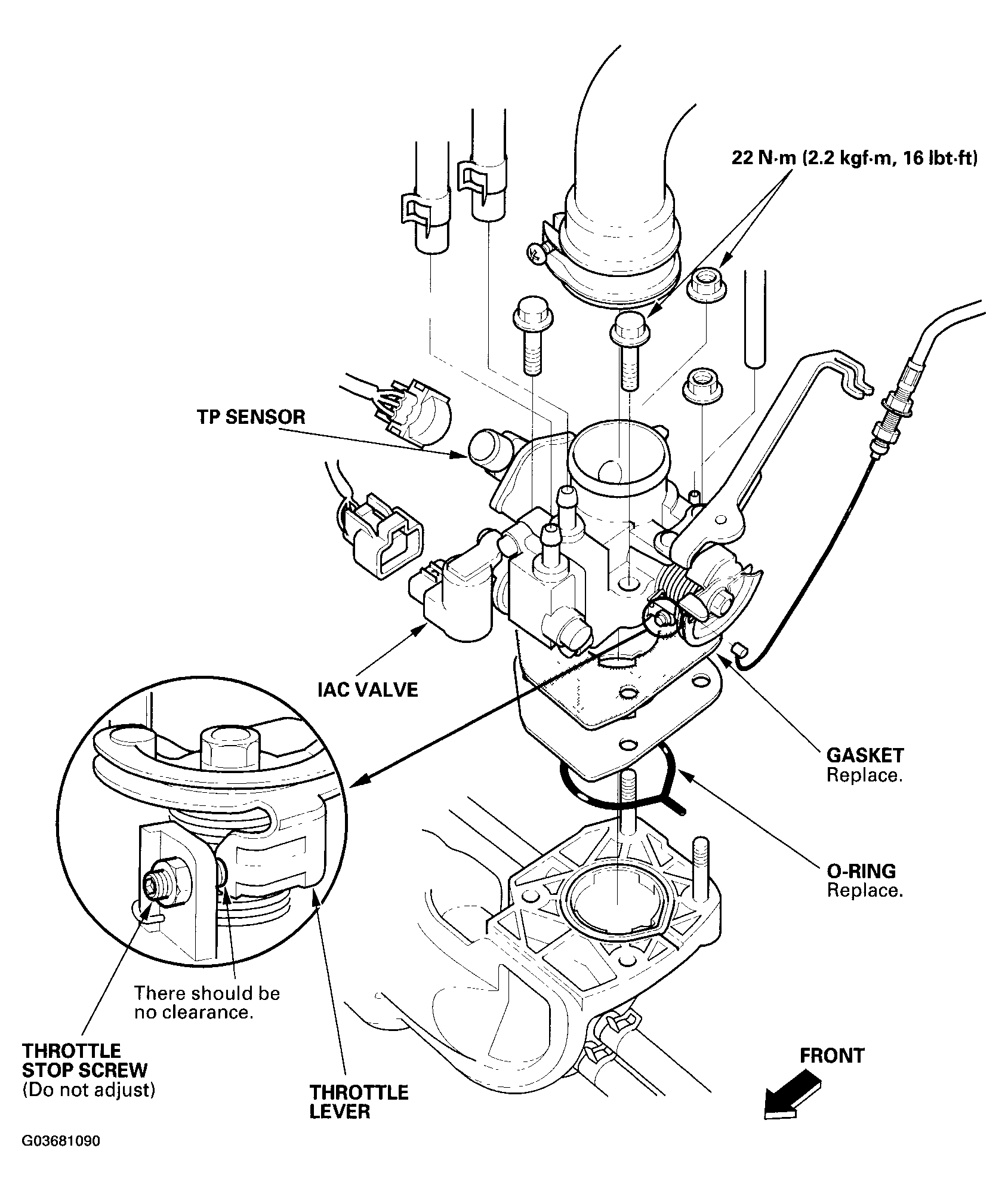

Fig 1: Identifying Throttle Body Removal/Installation
G03681090Courtesy of AMERICAN HONDA MOTOR CO., INC.
