Throttle Cable Removal/Installation

Remove the throttle link cover (A).

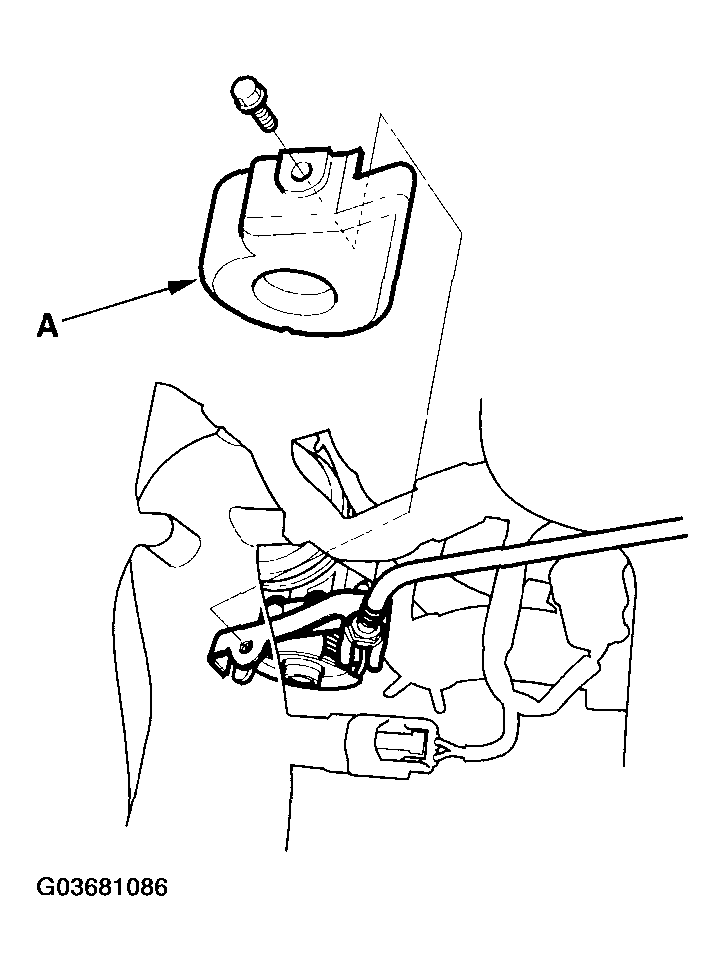

Fig 1: Removing Throttle Link Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fully open the throttle valve, then remove the throttle cable wire (A) from the throttle link (B).

Fig 2: Removing Throttle Cable Wire From Throttle Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable (C) from the cable bracket (D).
Remove the throttle cable wire (A) from the accelerator pedal (B).

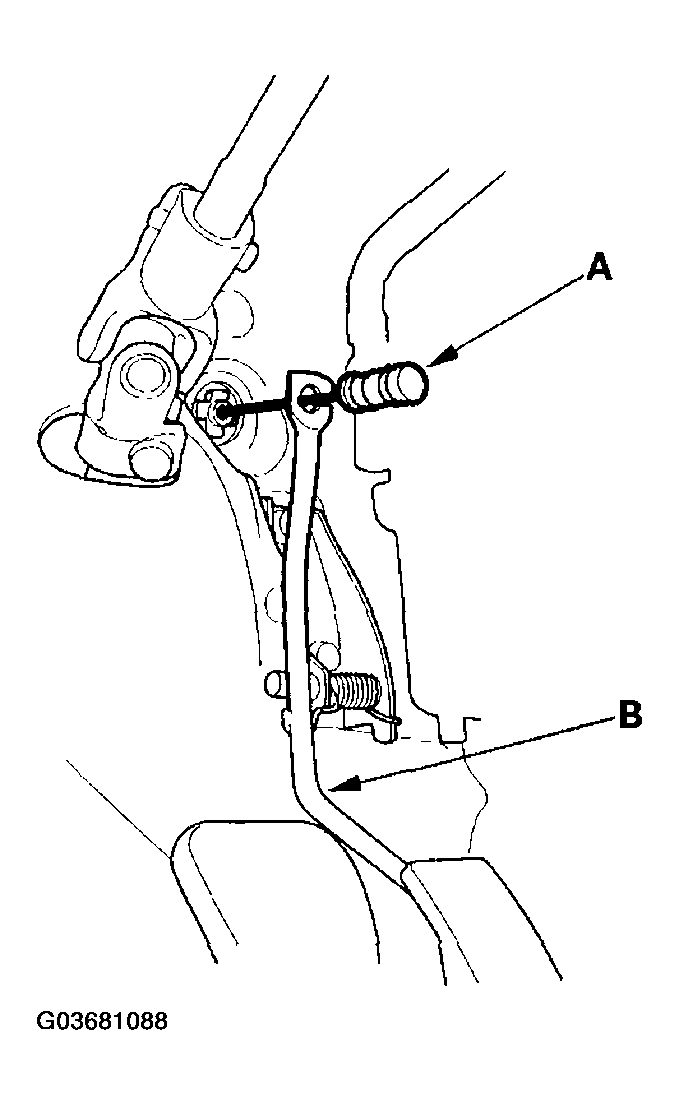

Fig 3: Removing Throttle Cable Wire From Accelerator Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
After installing, start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator fan comes on, then let it idle.
Hold the cable, removing all slack from the cable.
Set the locknut on the cable bracket (A). Adjust the adjusting nut (B) so that its free play is 0 mm.

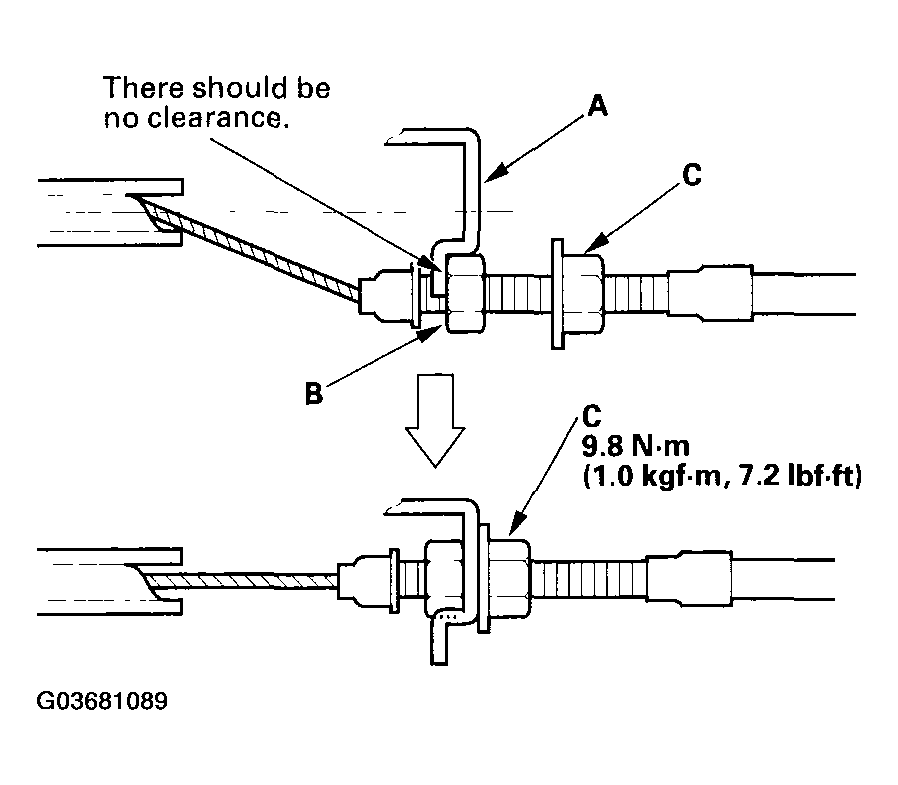

Fig 4: Setting Locknut On Cable Bracket And Adjusting Nut
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable from the throttle bracket. Reset the adjusting nut and tighten the locknut (C).
With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
