Power Assist Check

NOTE: This test should be done with original equipment tires and wheels at the correct tire pressure.

Start the engine, and let it idle.
Attach a commercially available spring scale to the steering wheel. With the engine idling and the vehicle on a clean, dry floor, pull the scale as shown, and read it as soon as the tires begin to turn.

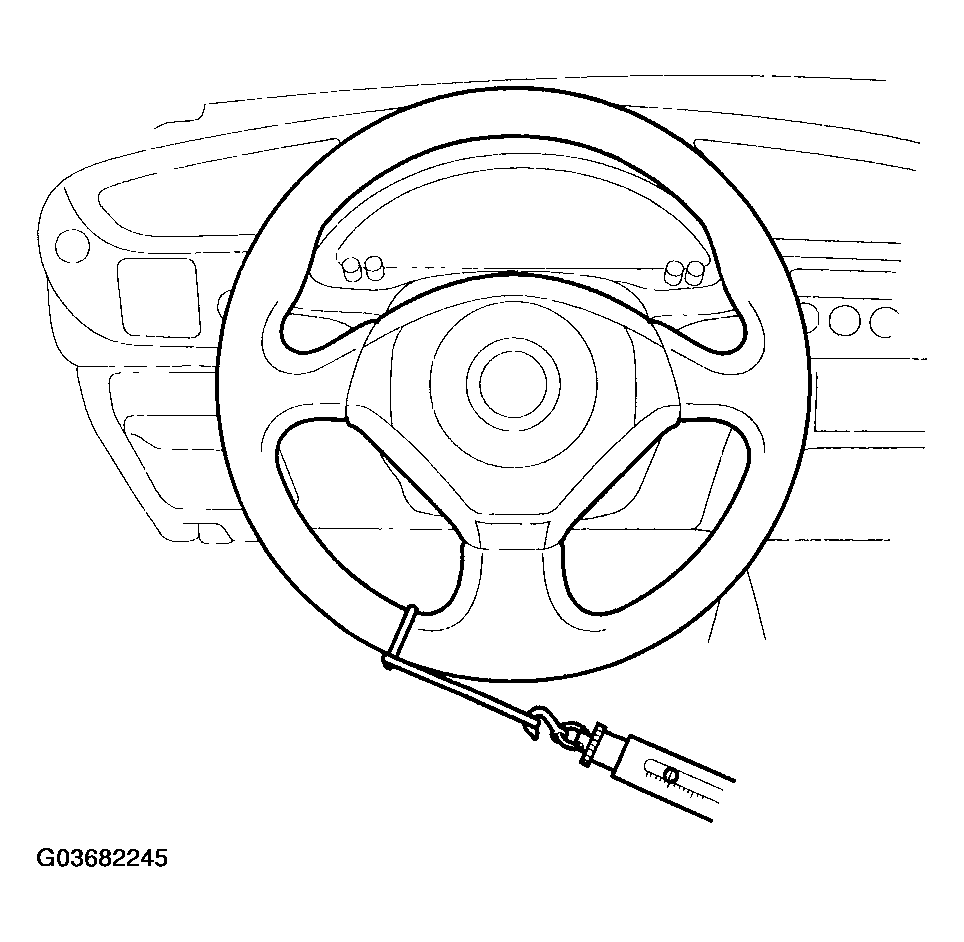

Fig 1: Checking Power Assist
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the scale should read no more than 29 N (3.0 kgf, 6.6 lbf). If it reads more, check these items:
- Steering linkage (see STEERING LINKAGE AND GEARBOX INSPECTION )
- Rack guide adjustment (see RACK GUIDE ADJUSTMENT )
- EPS system for DTCs (see GENERAL TROUBLESHOOTING INFORMATION )
