Gearshift Mechanism Replacement

NOTE: IMA system wires are located in this area. Make sure you read the Service Precautions in the IMA system section before doing repairs or service (see SERVICE PRECAUTIONS ).

Turn the battery module switch OFF, and measure the voltage (see TURNING OFF POWER TO THE HIGH VOLTAGE CIRCUIT = ).
Repair or replace the gearshift mechanism components as needed.

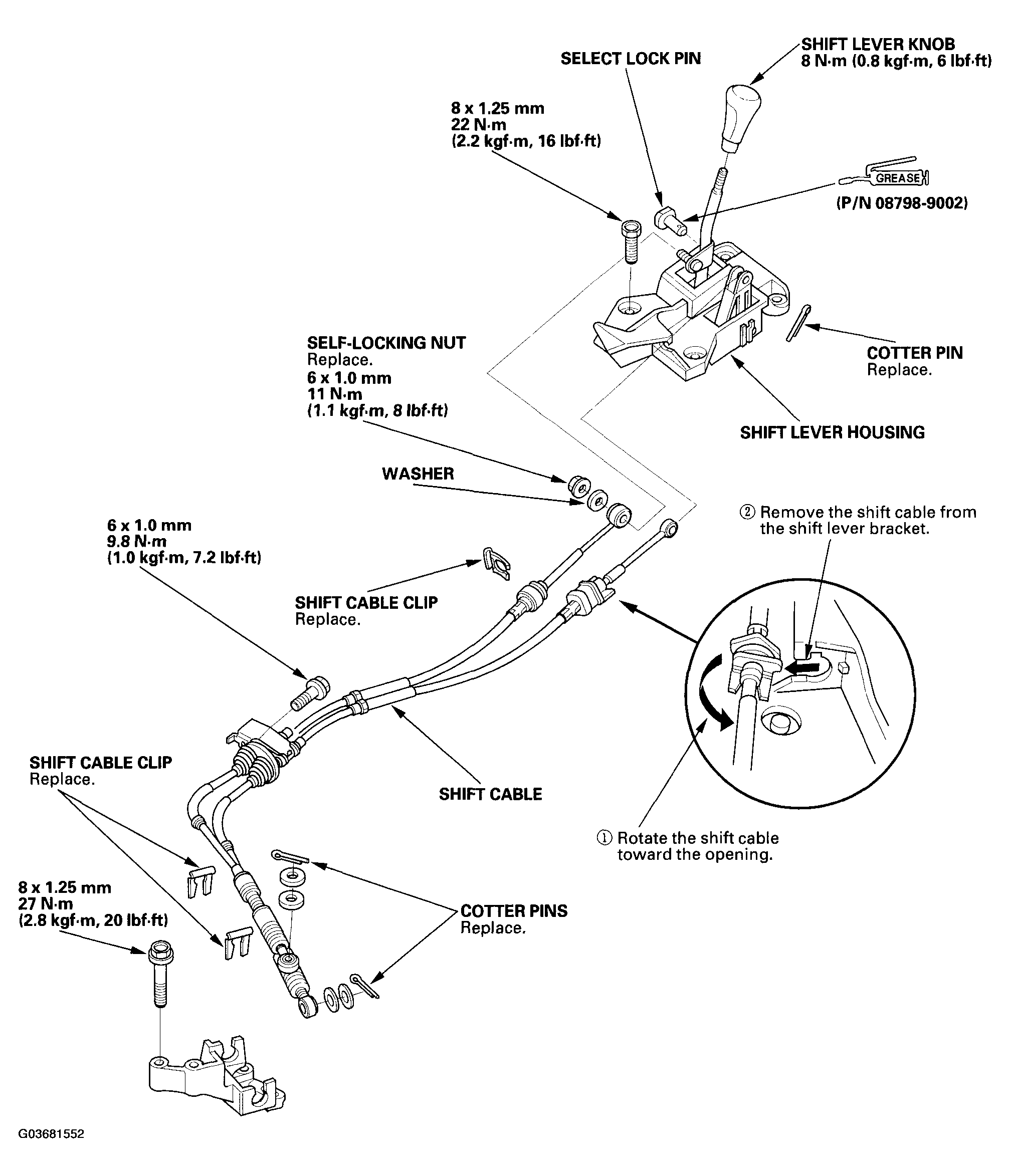

Fig 1: Replacing Gearshift Mechanism And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
