PNK Wire Communication Line Test
- Disconnect driver's multiplex control unit connector B (22P).
- Disconnect passenger's multiplex control unit connector B (22P).

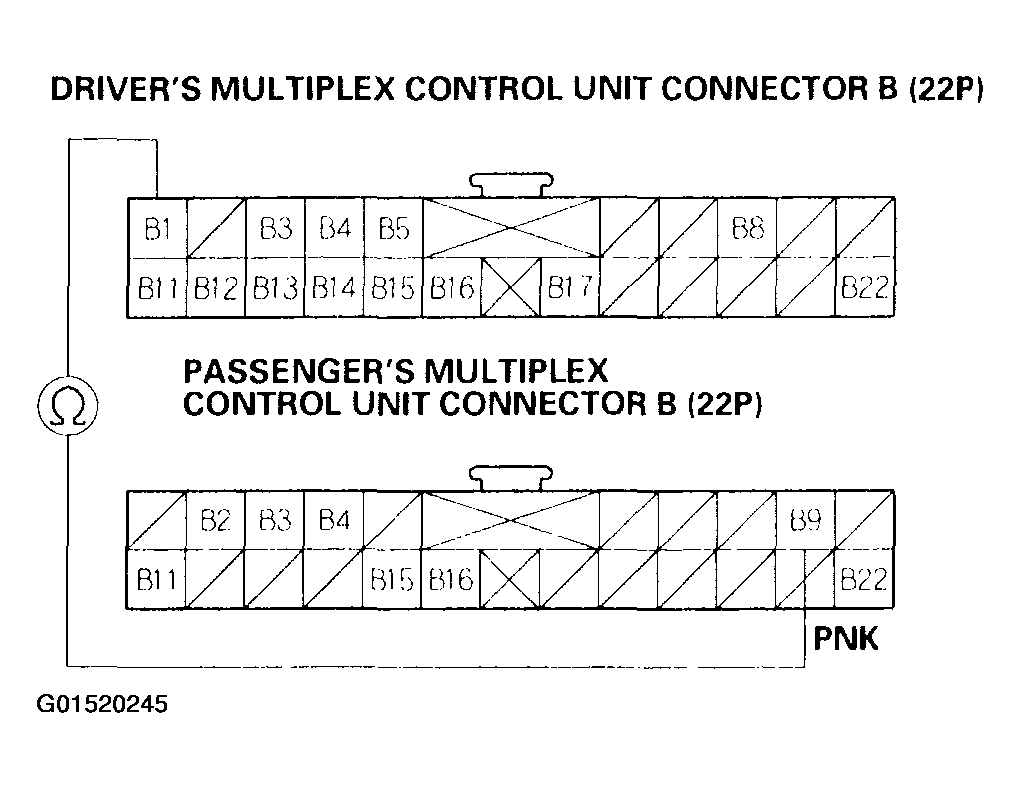

- Check for continuity between No. 1 terminal of the driver's multiplex connector B (22P) and No. 9 terminal of the passenger's multiplex connector B (22P).Fig 1: Checking Continuity Between No. 1 Terminal Of Driver's Multiplex Connector B (22P) & No. 9 Terminal Of Passenger's Multiplex Connector B (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES: Replace the multiplex control unit most closely related to the failure.
- NO: Repair an open in the wire between the door multiplex B (22P) connector and the passenger's multiplex B (22P) connector.
