Circuit Diagram

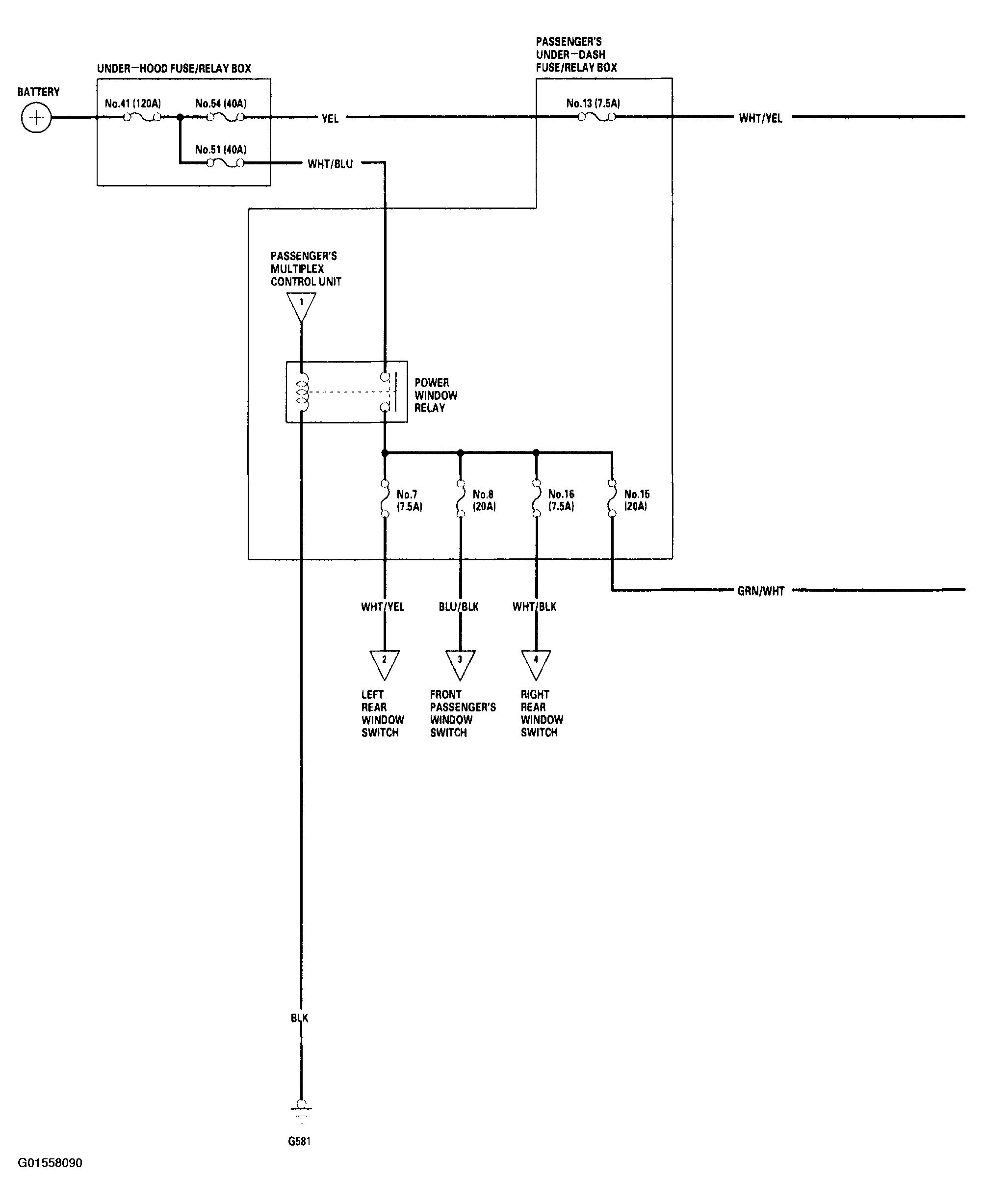

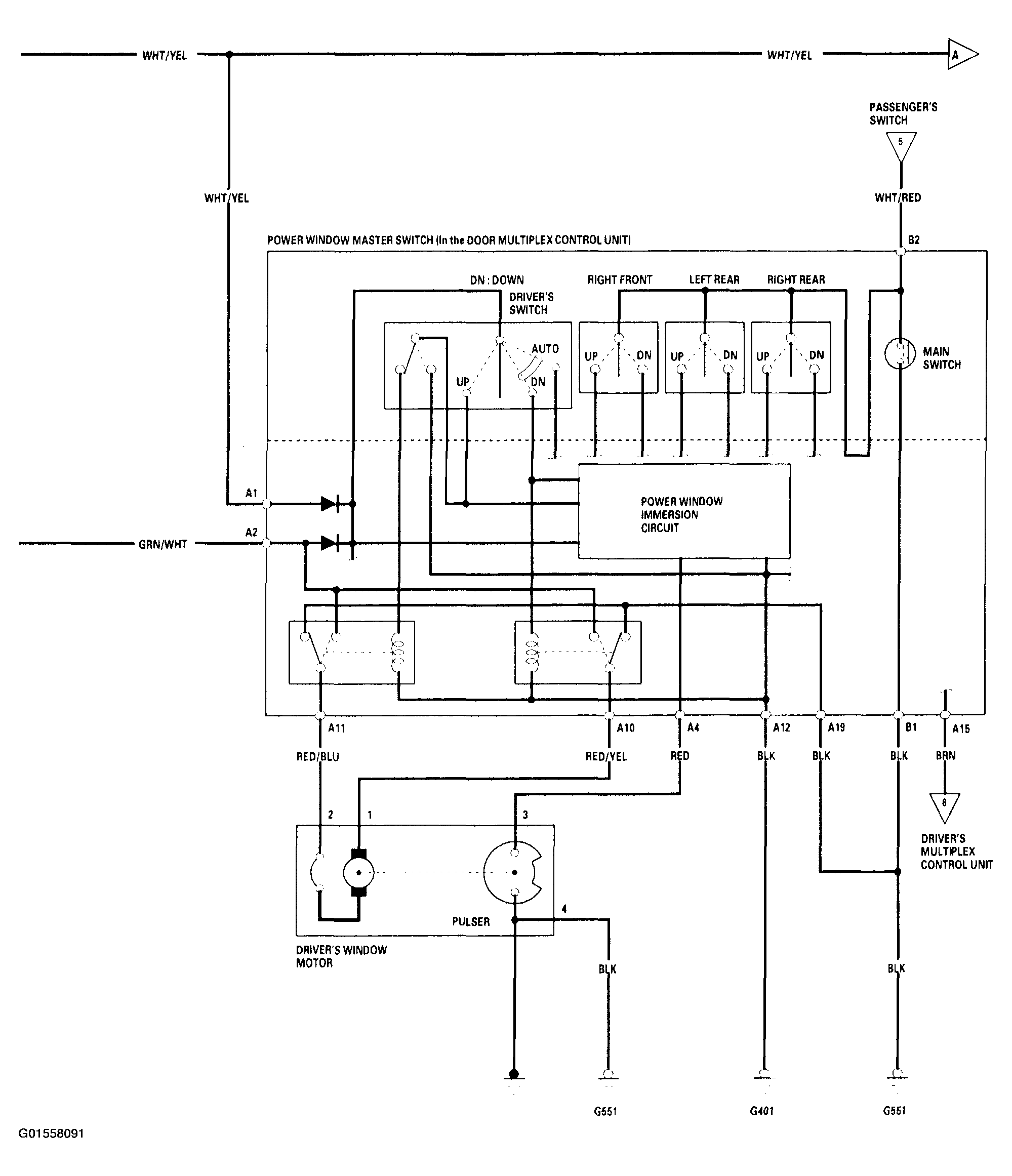

Fig 1: Power Window Circuit Diagram (1999 Model - 1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

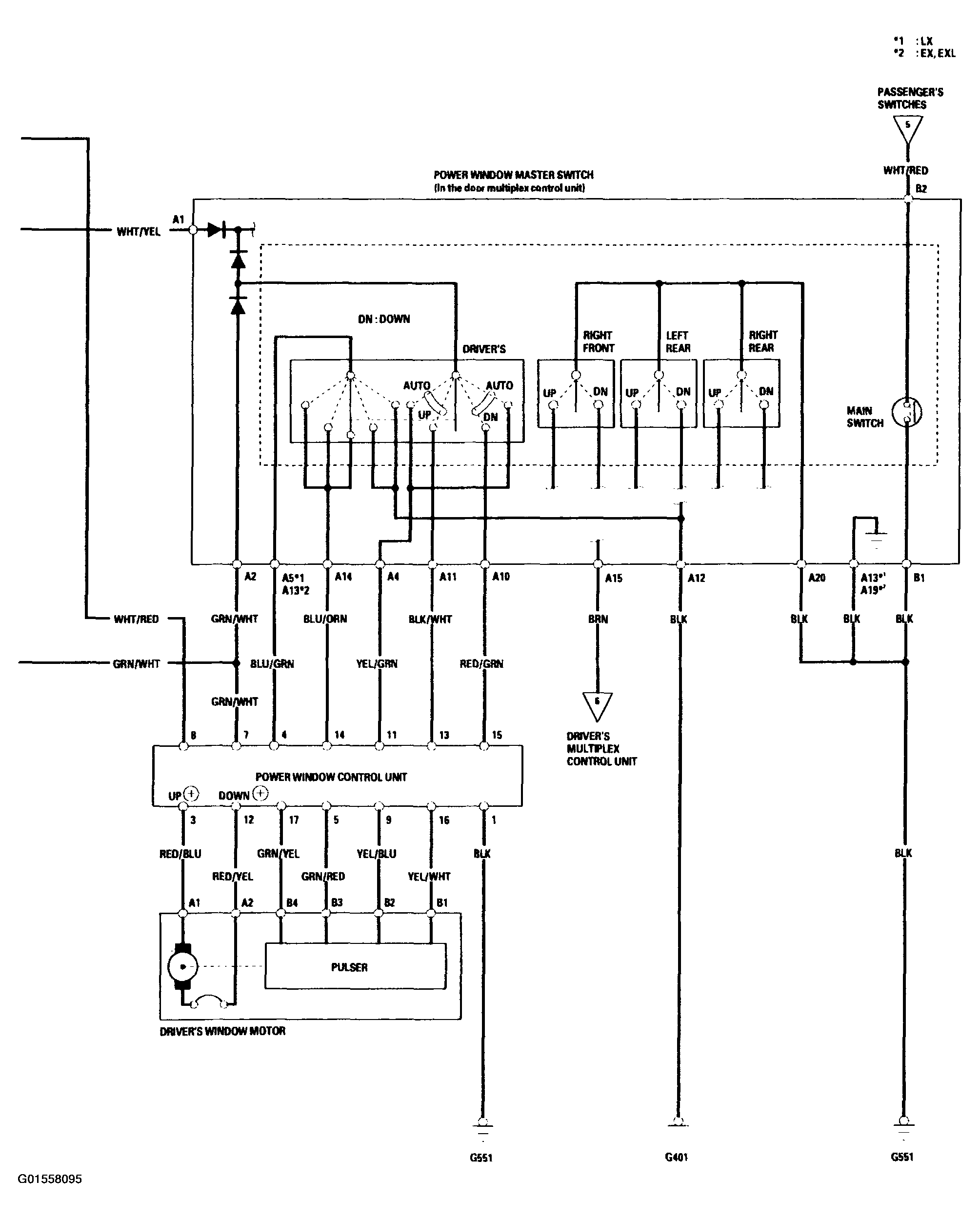

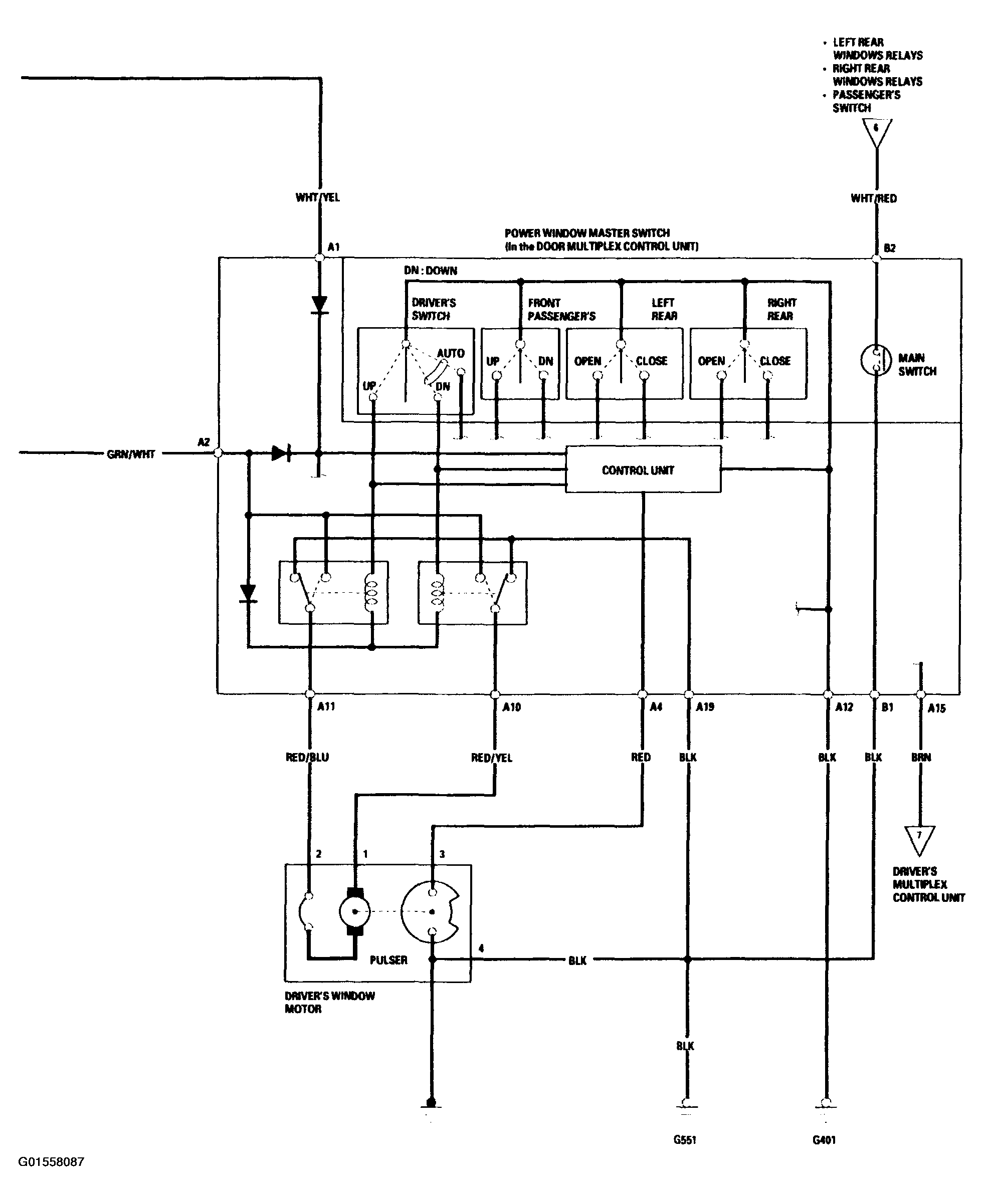

Fig 2: Power Window Circuit Diagram (1999 Model - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

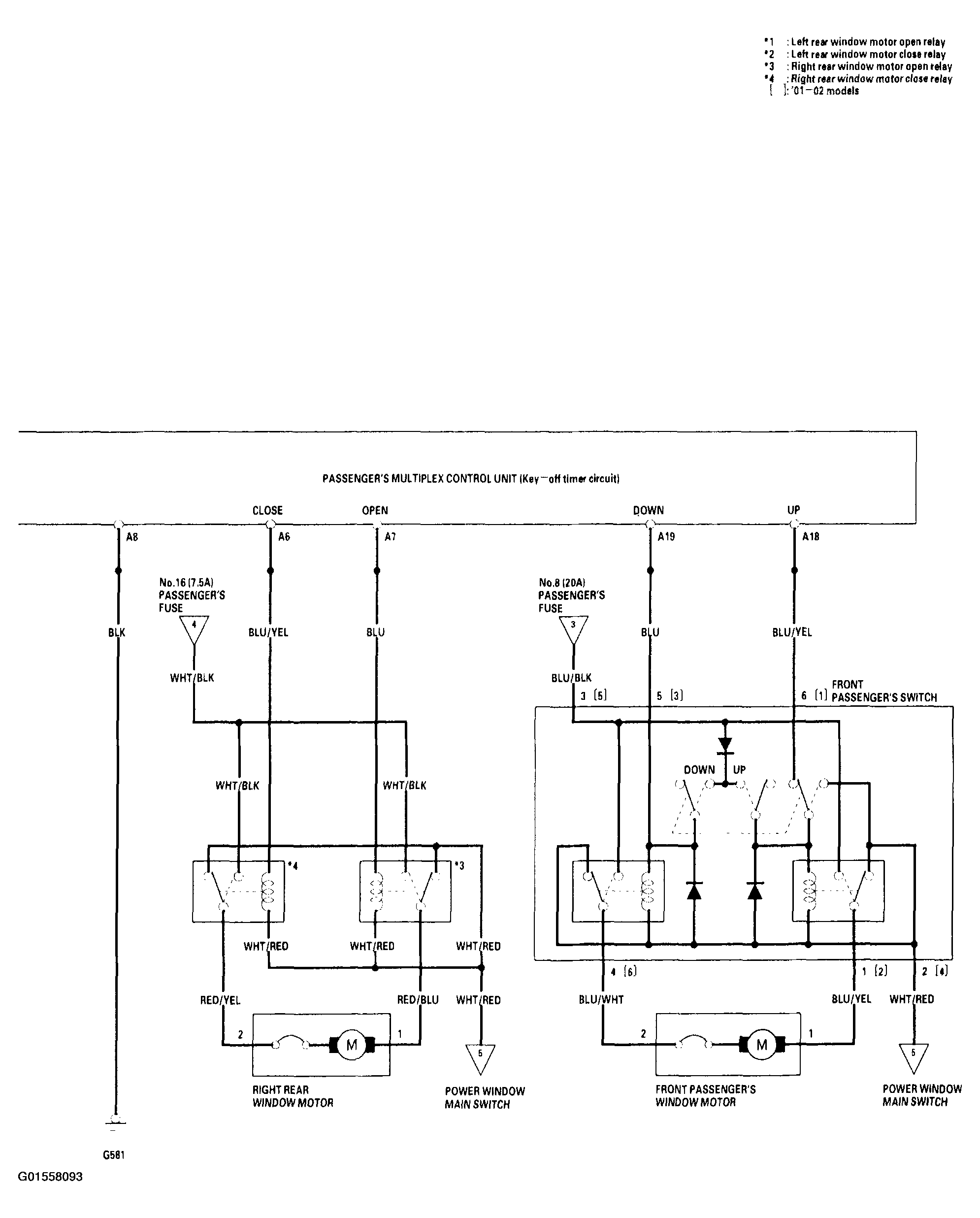

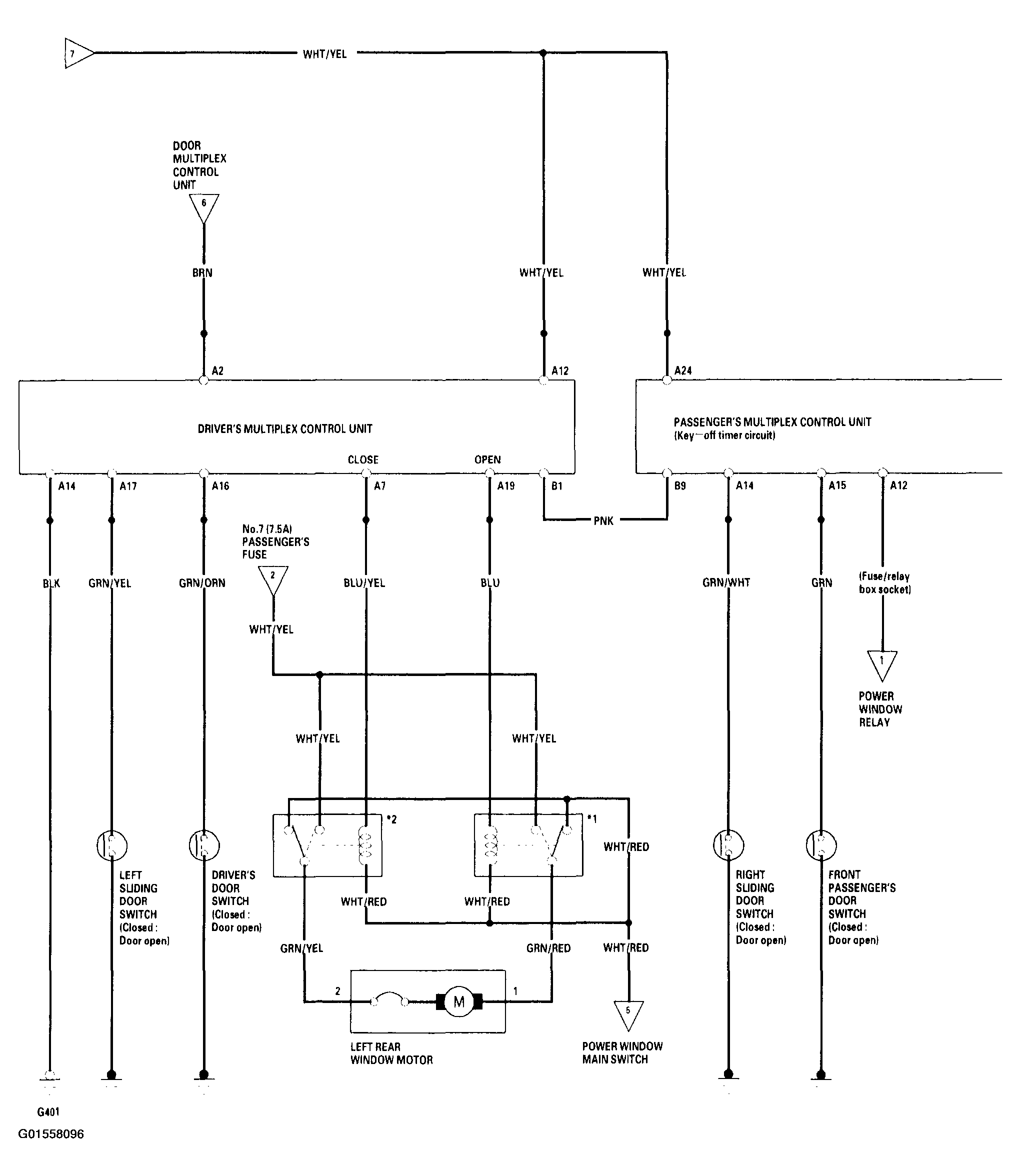

Fig 3: Power Window Circuit Diagram (1999 Model - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

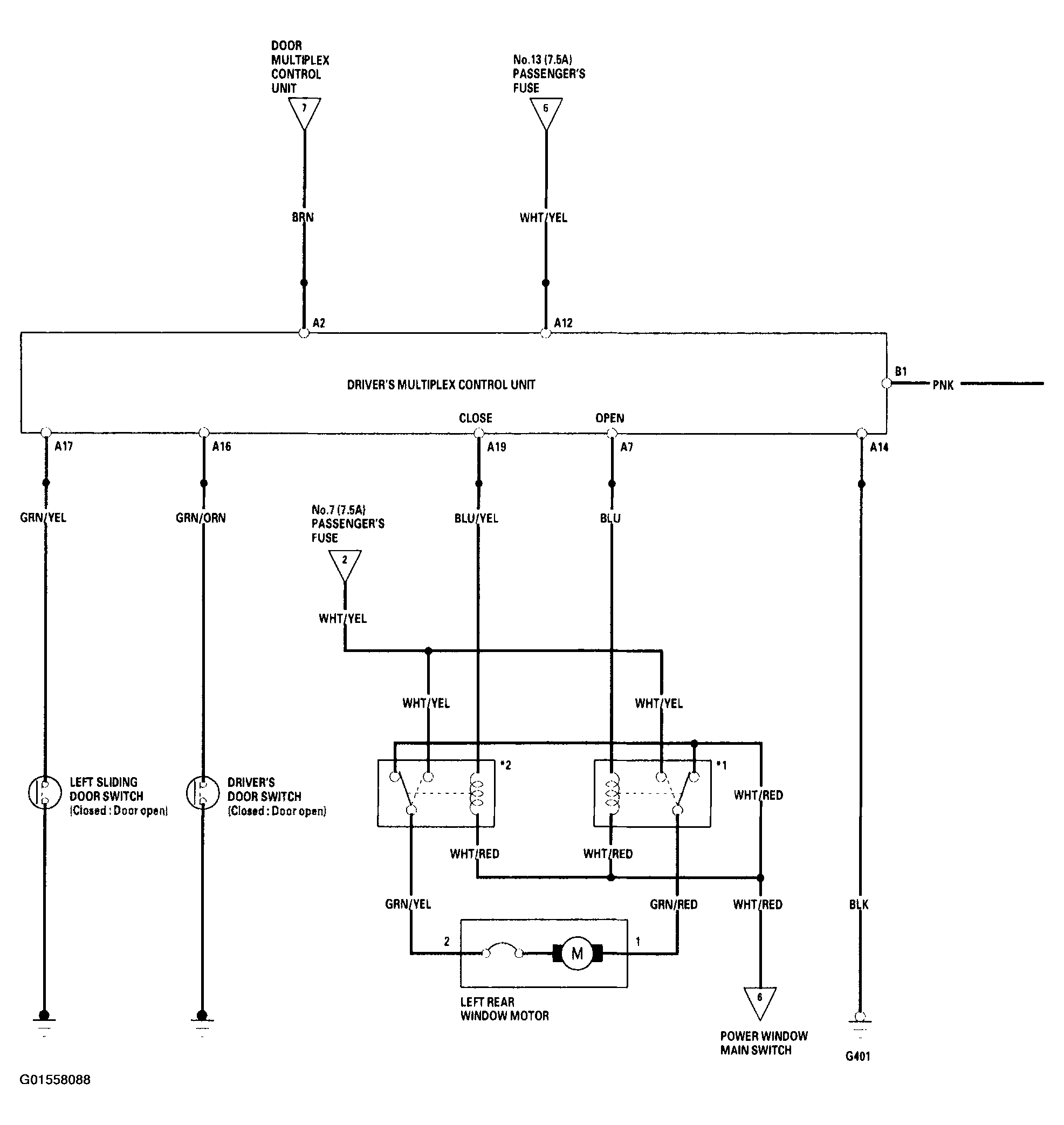

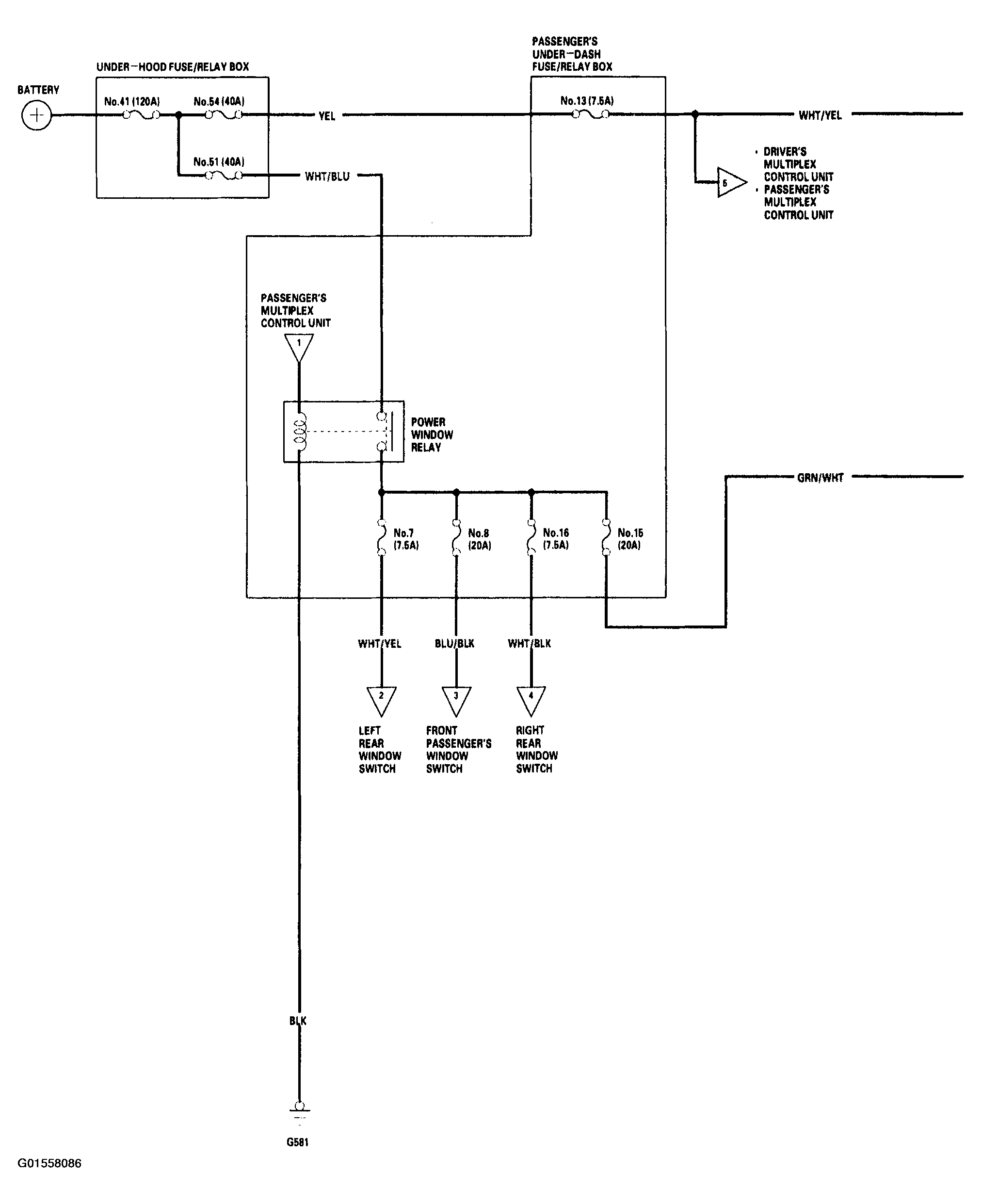

Fig 4: Power Window Circuit Diagram (1999 Model - 4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

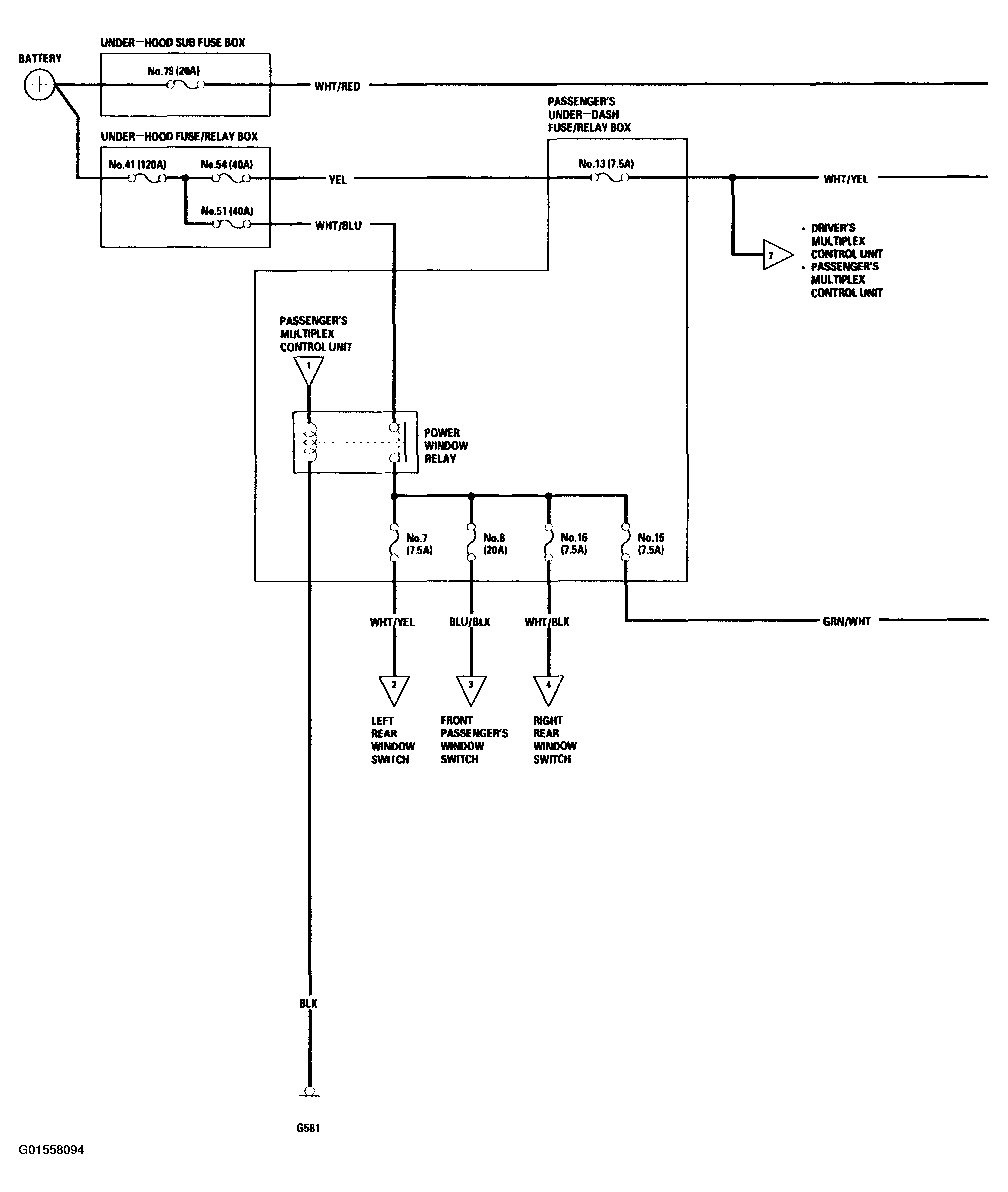

Fig 5: Power Window Circuit Diagram (2000-02 Models - 1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

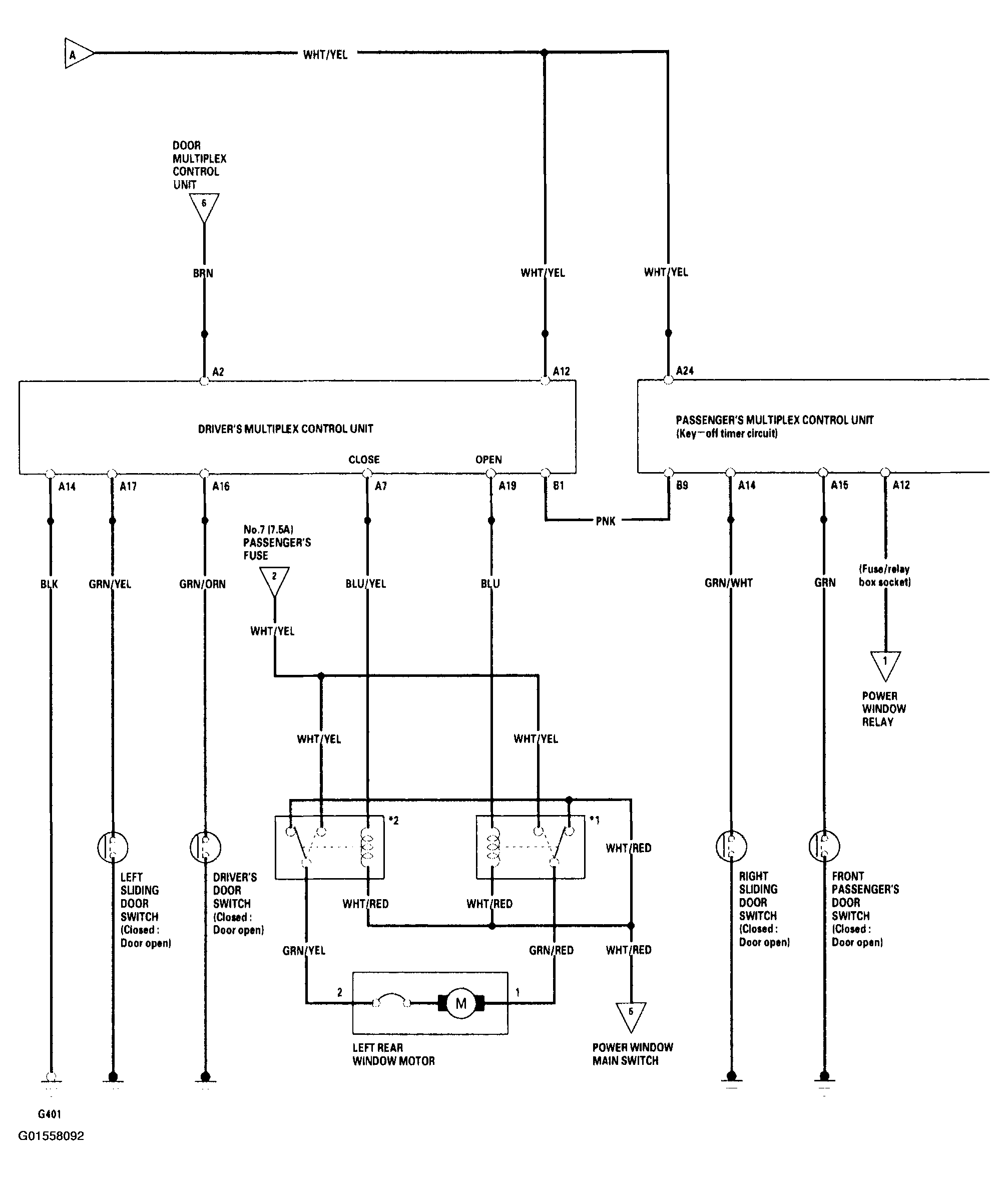

Fig 6: Power Window Circuit Diagram (2000-02 Models - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

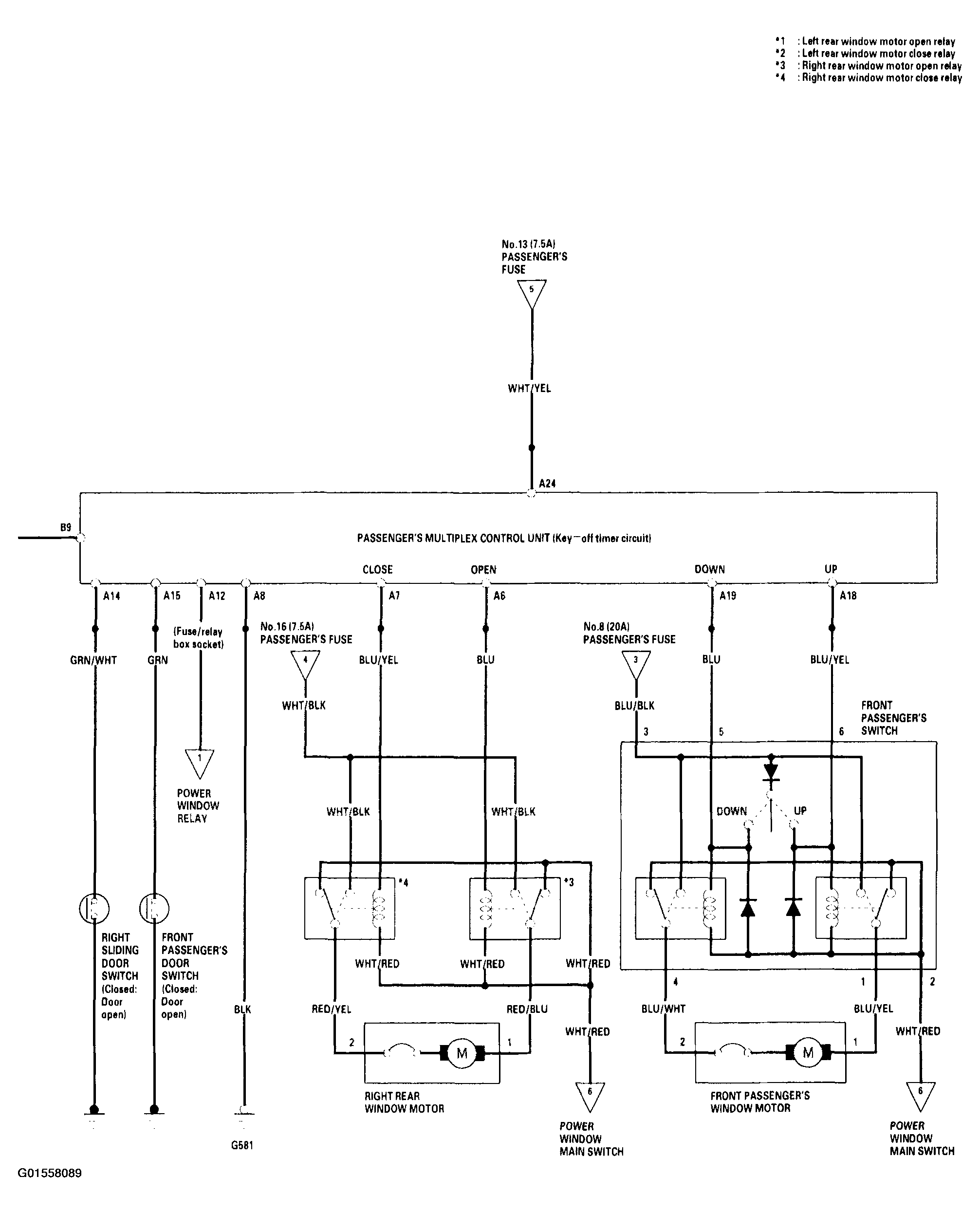

Fig 7: Power Window Circuit Diagram (2000-02 Models - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

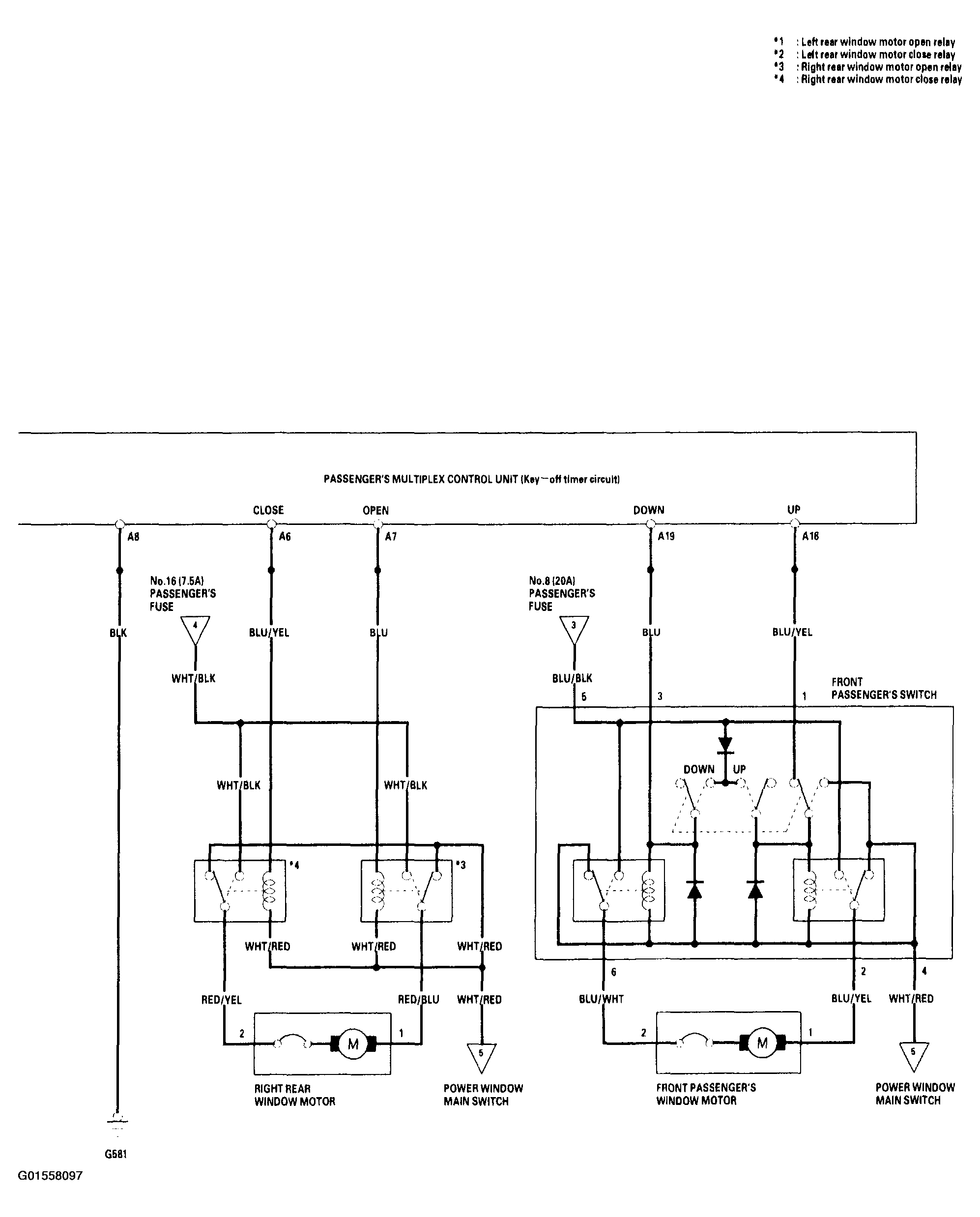

Fig 8: Power Window Circuit Diagram (2000-02 Models - 4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 9: Power Window Circuit Diagram (2003-04 Models - 1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Power Window Circuit Diagram (2003-04 Models - 2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Power Window Circuit Diagram (2003-04 Models - 3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Power Window Circuit Diagram (2003-04 Models - 4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
