Motor Test

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 4P connector from the window motor.

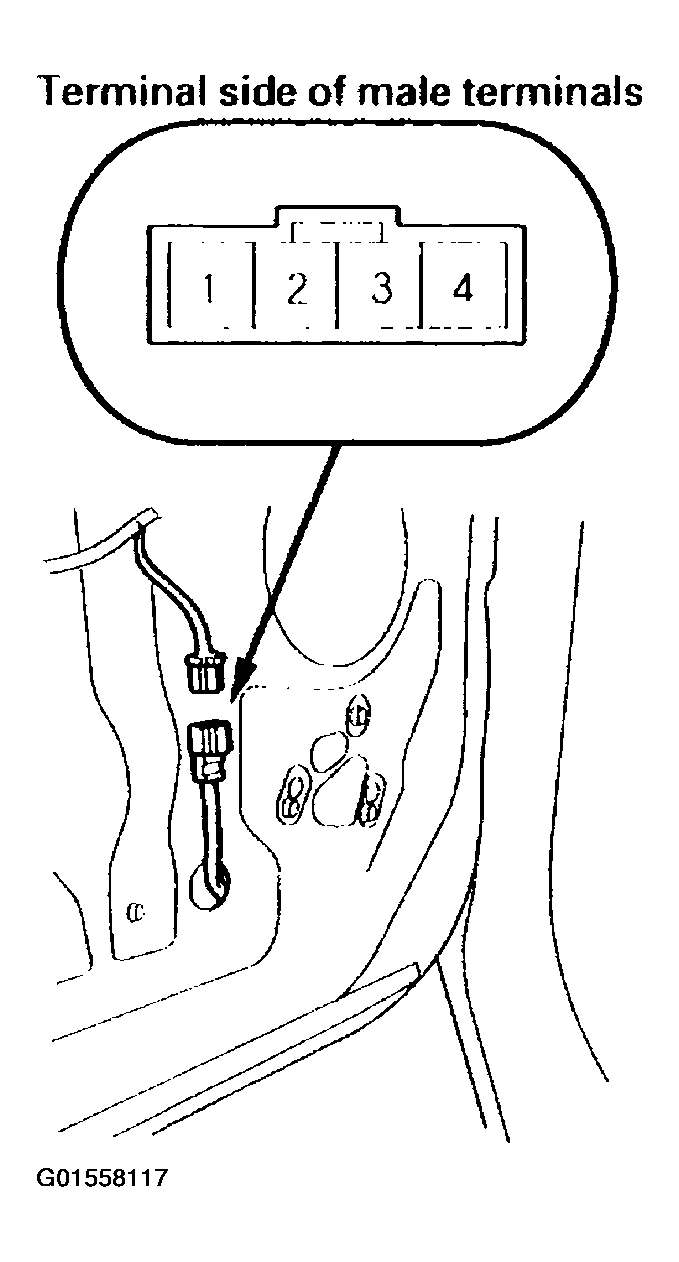

Fig 1: Disconnecting 4P Connector From Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor in each direction by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

Fig 2: Testing Motor In Each Direction By Connecting Battery Power & Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
1. Pulser Test
Connect the test leads of an analog ohmmeter to the No. 3 and No. 4 terminals.
Run the motor by connecting power and ground to the No. 1 and No. 2 terminals. The ohmmeter needle should move back and forth alternately.
If the test is not as specified, replace the driver's window motor.
