Master Switch Replacement

Remove the screw and master switch assembly from the door panel.

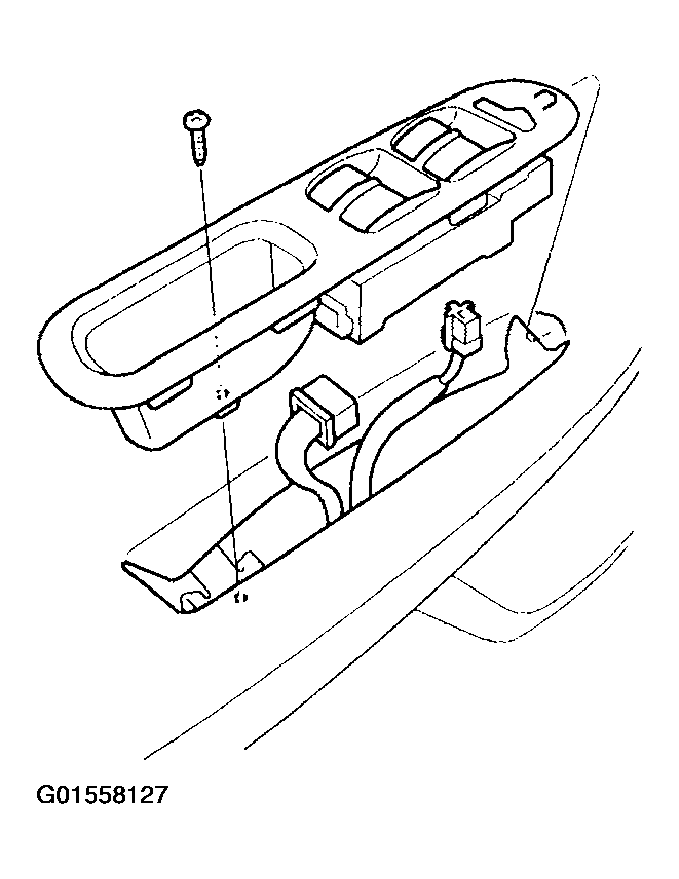

Fig 1: Removing Screw & Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four mounting screws, then remove the master switch (A) from the panel (B).

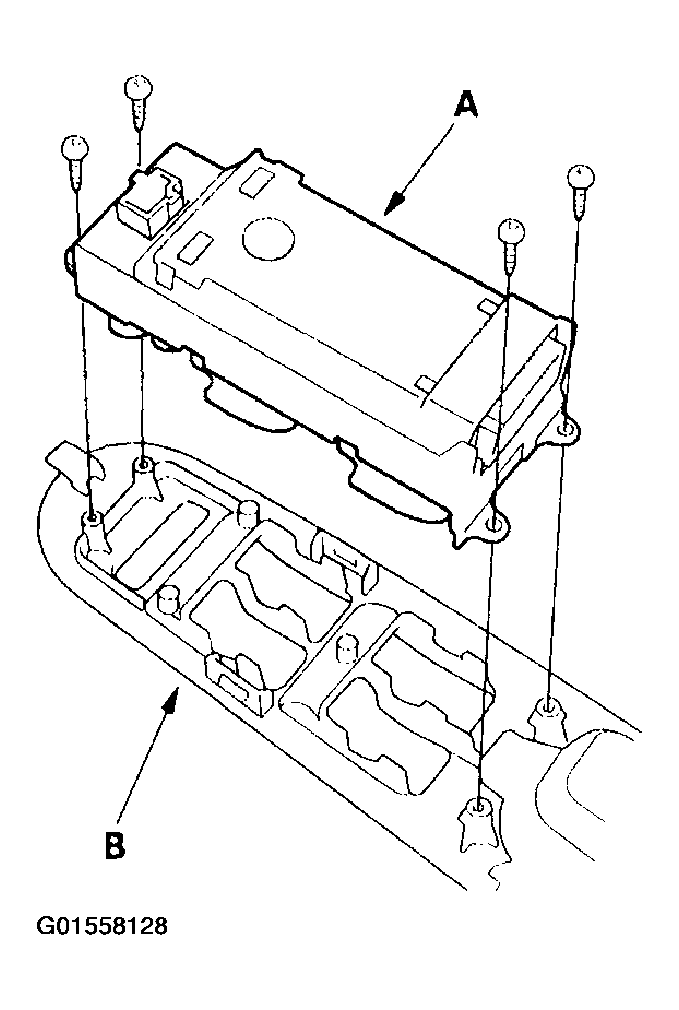

Fig 2: Removing Master Switch From Panel

Courtesy of AMERICAN HONDA MOTOR CO., INC.
