Passenger's Window Switch Replacement

  1. Remove the screw and passenger's window switch assembly from the door panel.

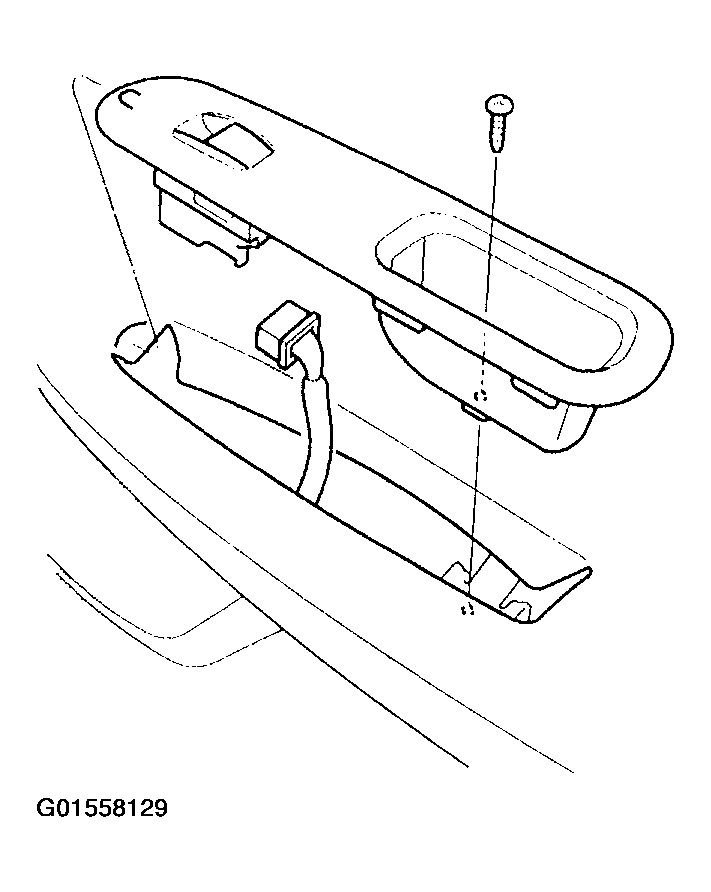

    Fig 1: Removing Screw & Passenger's Window Switch
    G01558129Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the three mounting screws, then remove the passenger's window switch (A) from the panel (B).

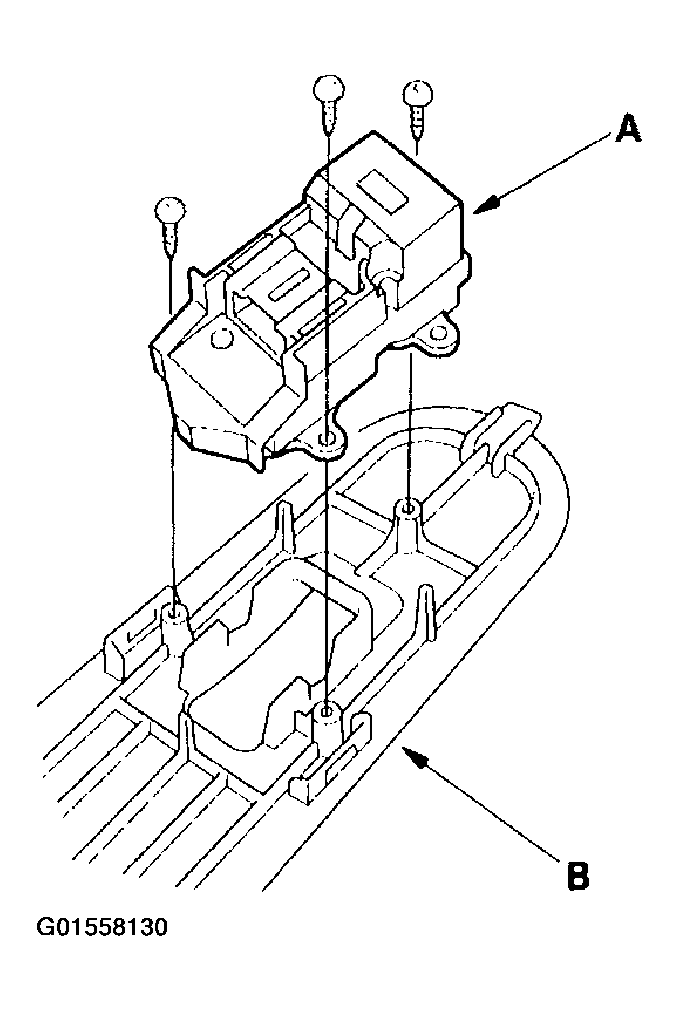

    Fig 2: Removing Passenger's Window Switch From Panel
    G01558130Courtesy of AMERICAN HONDA MOTOR CO., INC.
