'03-04 models

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 18P connector (A) from the power window control unit (B).

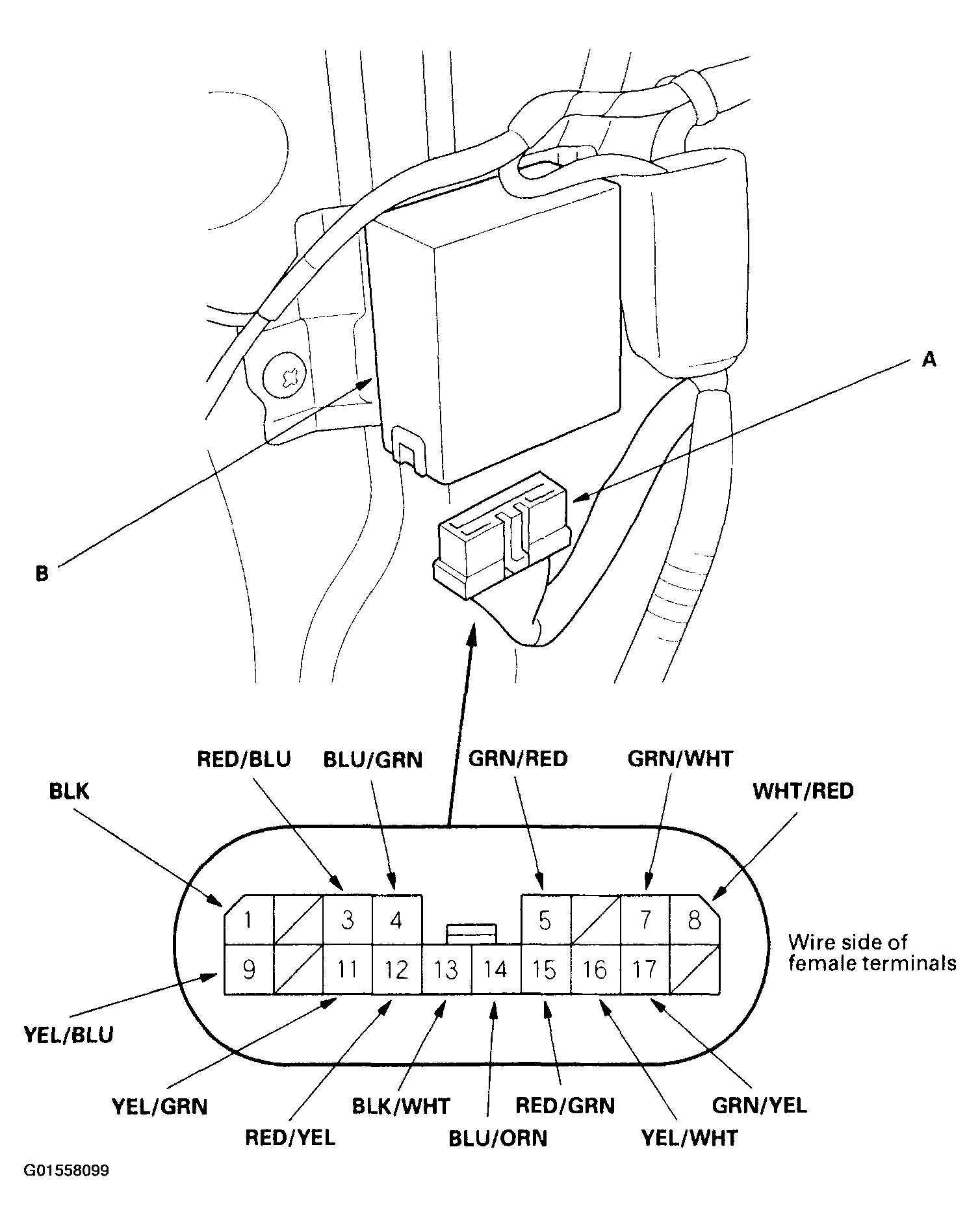

Fig 1: Disconnecting 18P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
With the control unit connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.

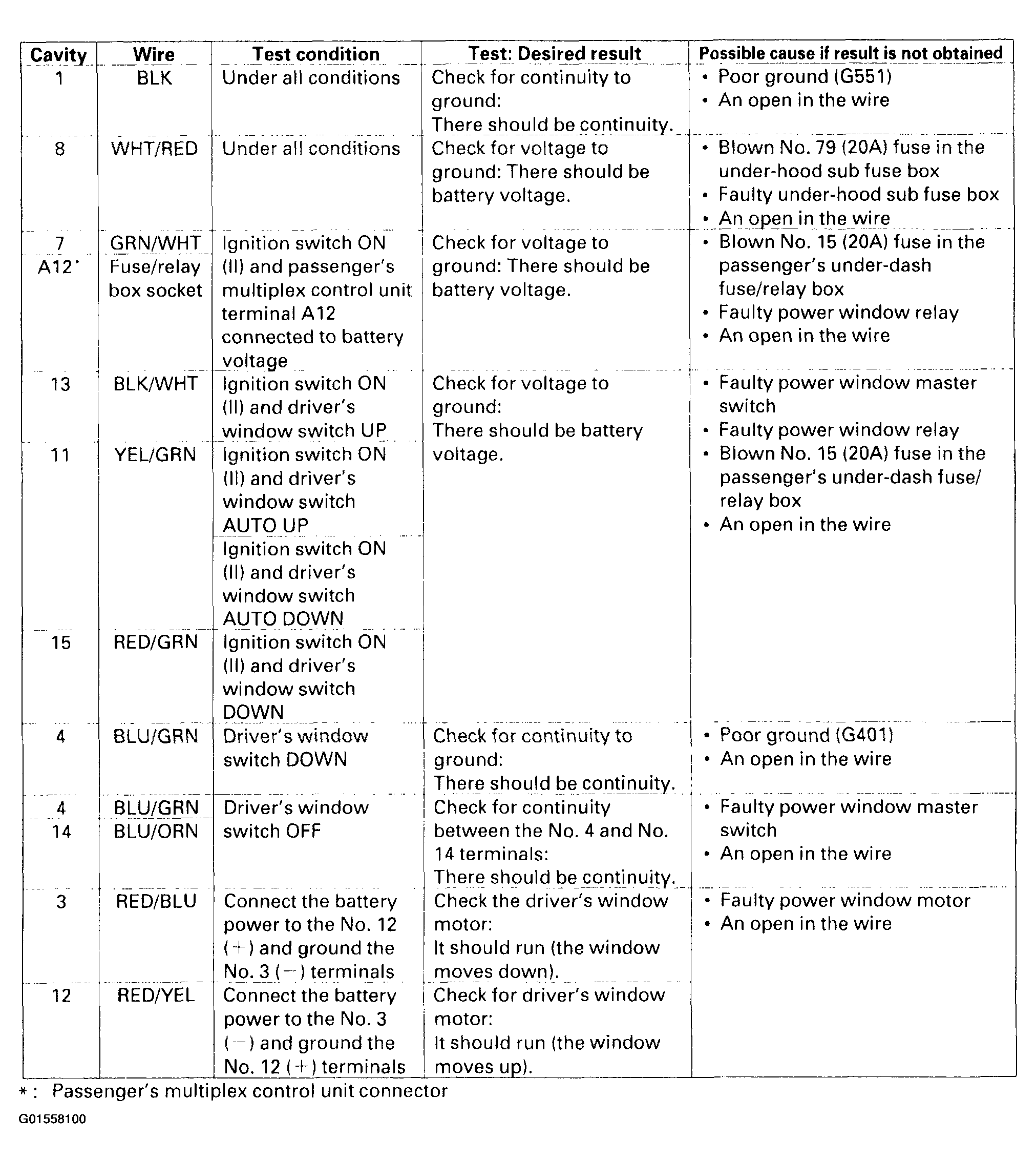

Fig 2: Power Window Control Unit Input Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reconnect the 18P connector to the power window control unit, and reconnect the passenger's multiplex control unit. Then make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.

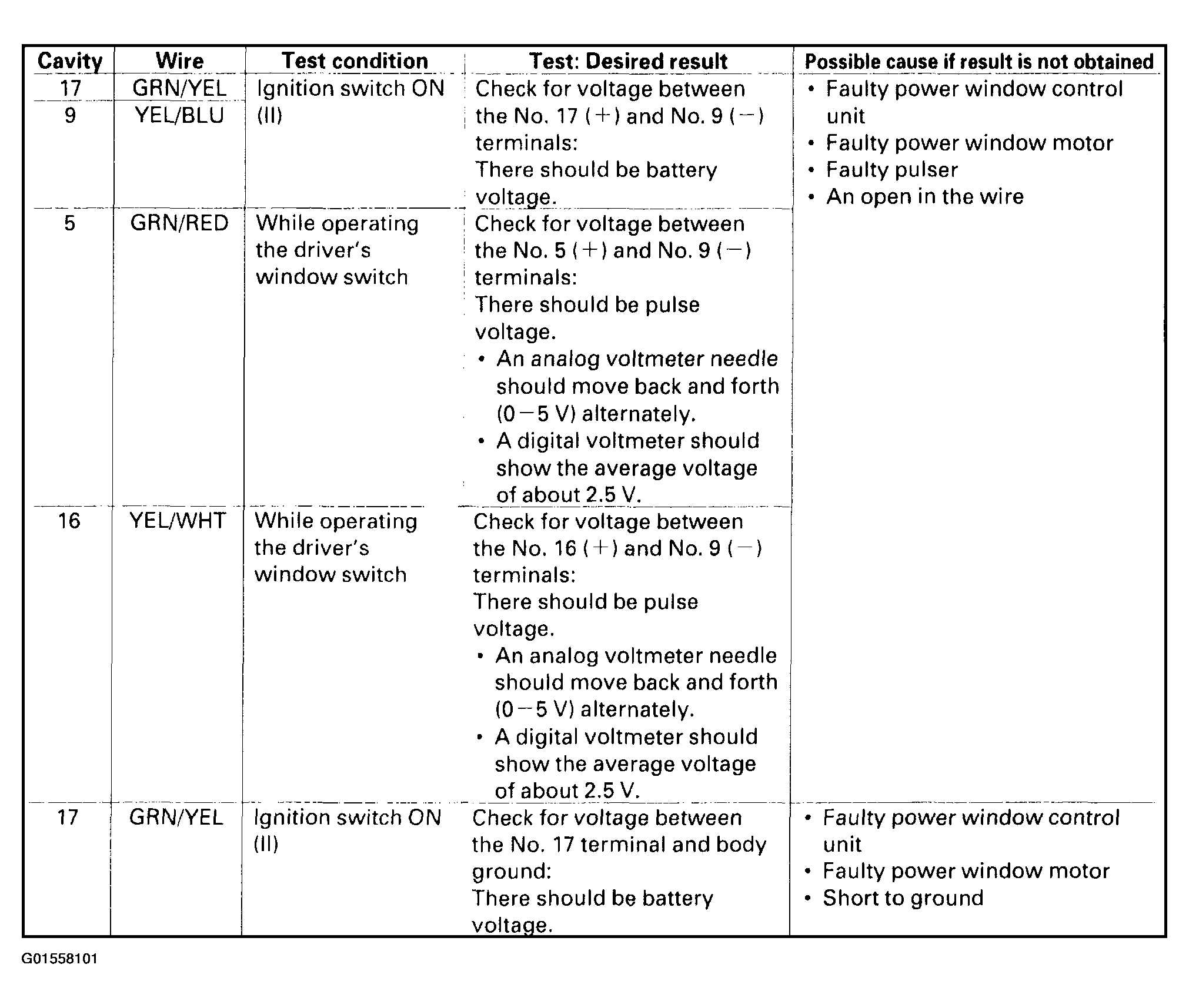

Fig 3: Power Window Control Unit Input Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
