Component Location Index

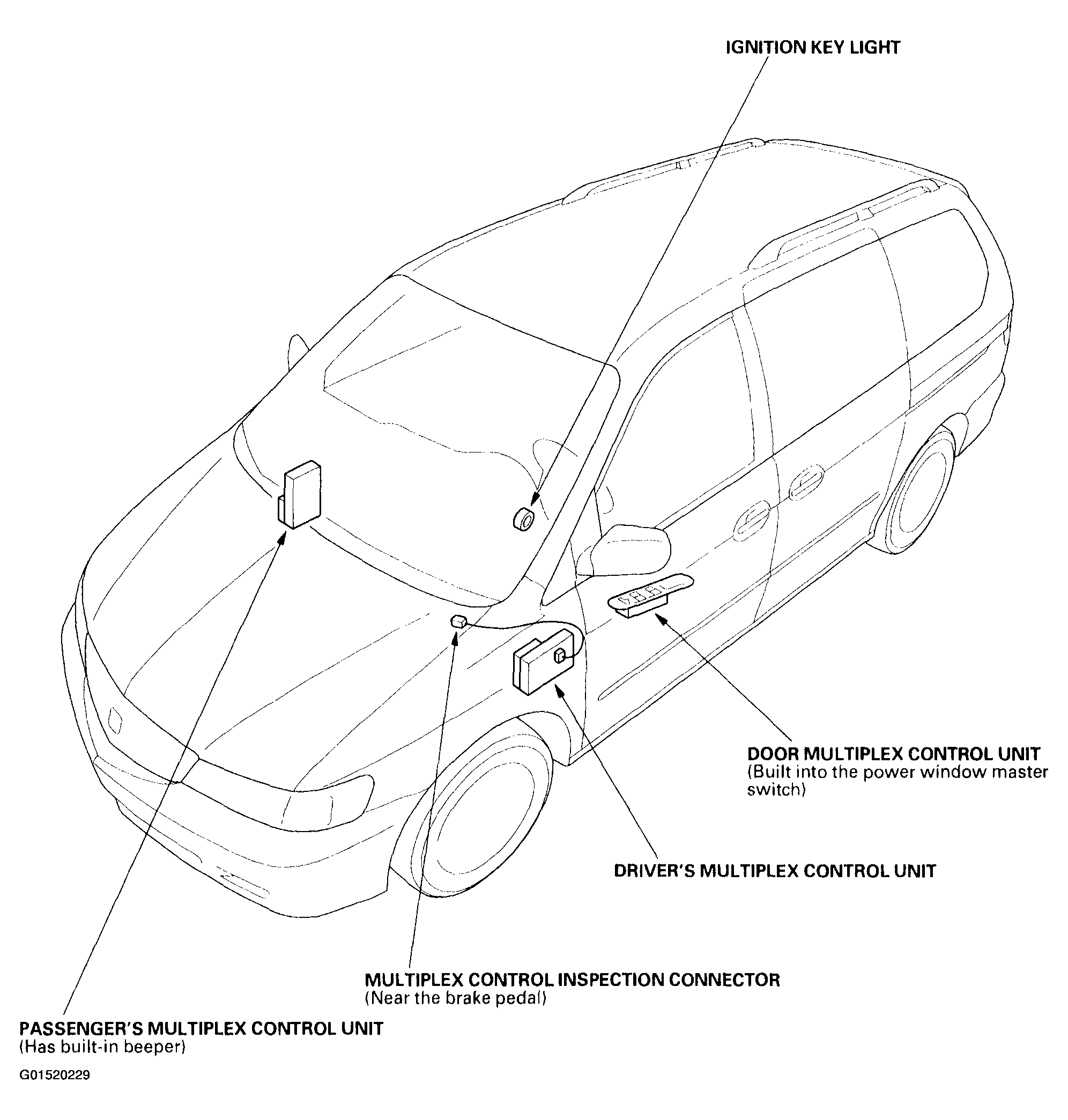

Fig 1: Identifying Multiplex Control Component
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
