Ignition Coil Removal/Installation

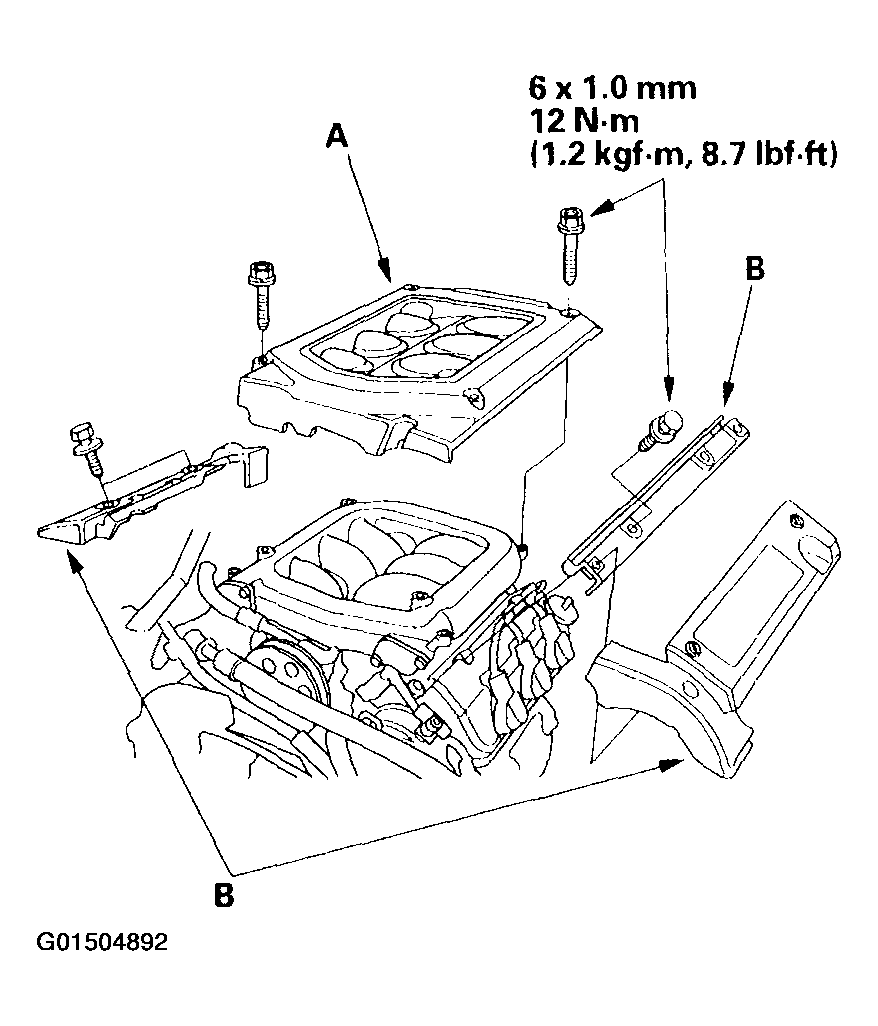

Remove the intake manifold cover (A) and ignition coil cover(s) (B).

Fig 1: Removing Intake Manifold Cover & Ignition Coil Cover (1999-2001 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ignition coil connectors, then remove the ignition coils.

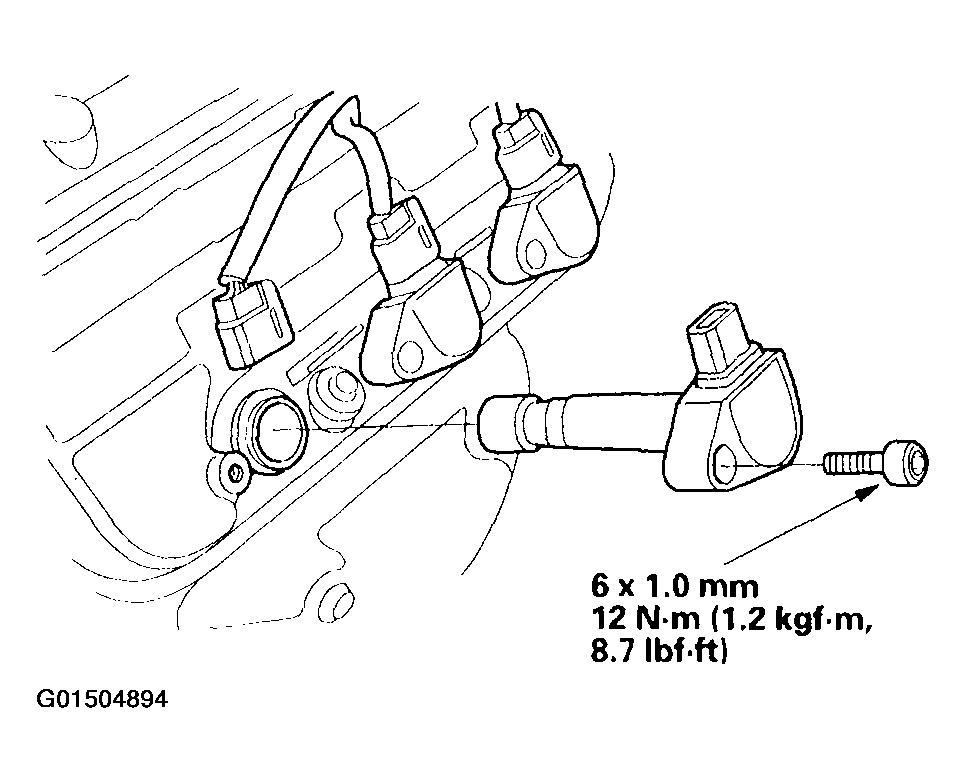

Fig 2: Disconnecting Ignition Coil Connectors (1999-2001 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coil in the reverse order of removal.

Fig 3: Installing Ignition Coil (2002-04 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
