Component Location Index

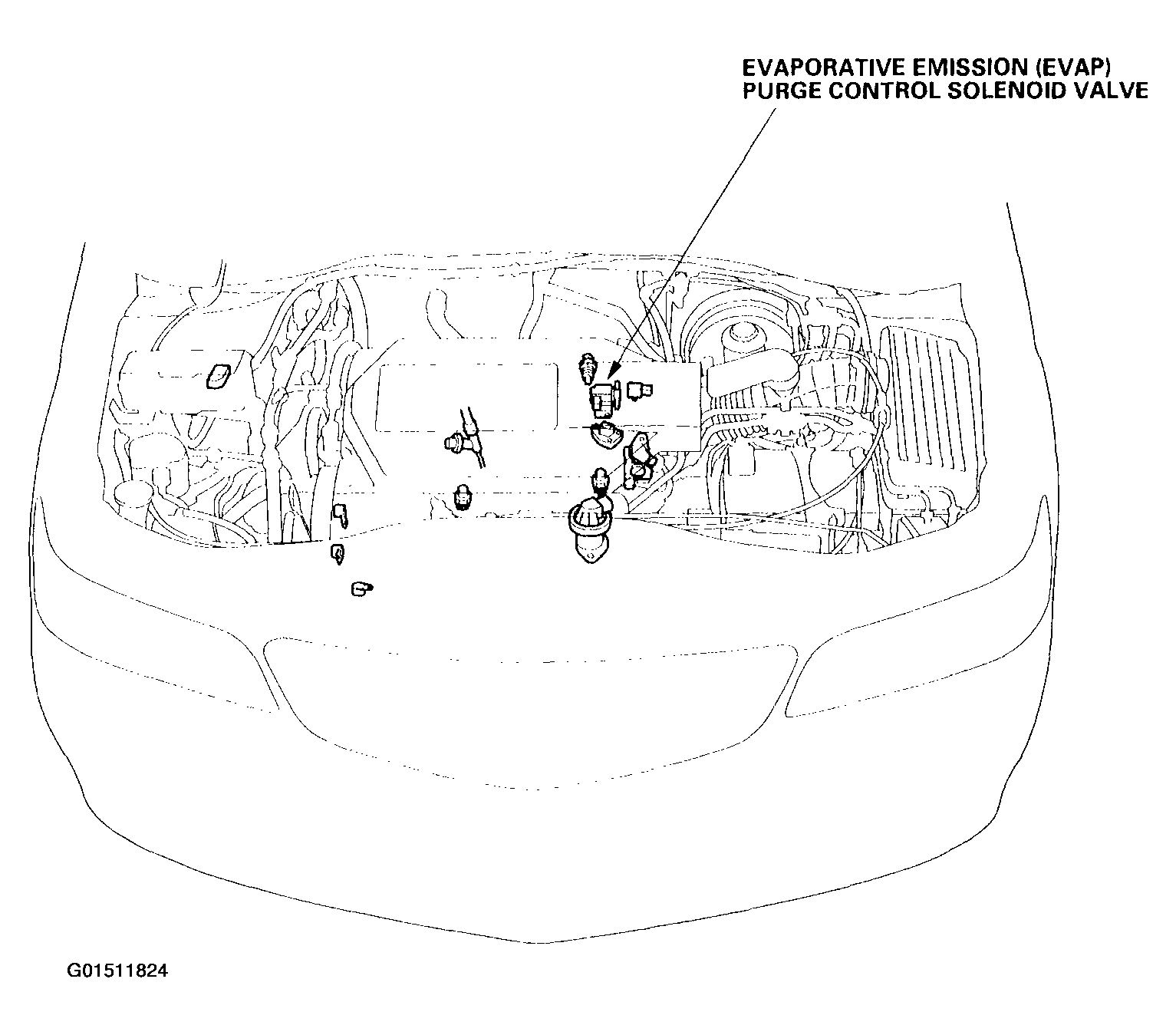

Fig 1: Identifying EVAP System ('99-00 Models - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

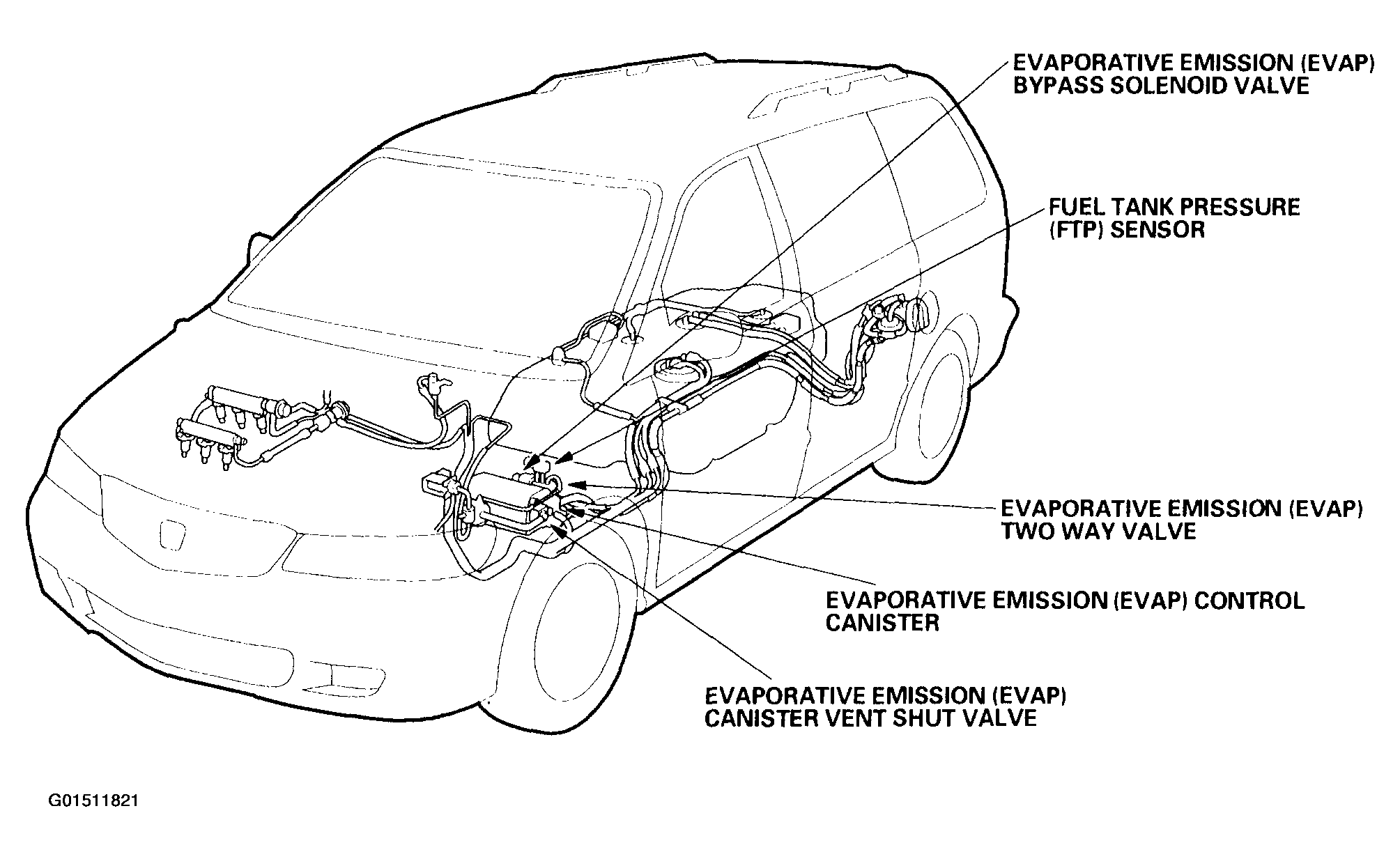

Fig 2: Identifying EVAP System ('99-00 Models - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

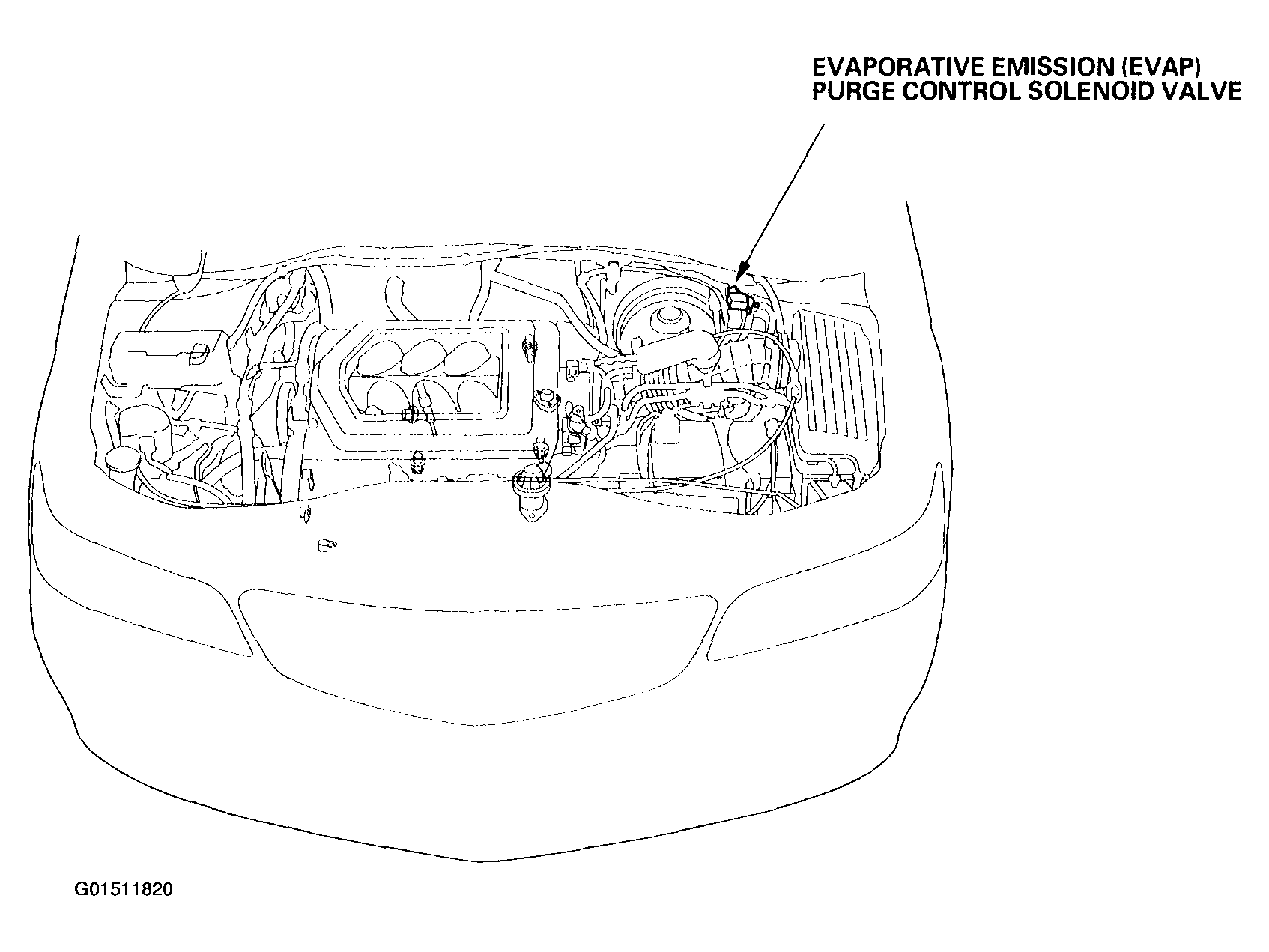

Fig 3: Identifying EVAP System ('01 Models - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

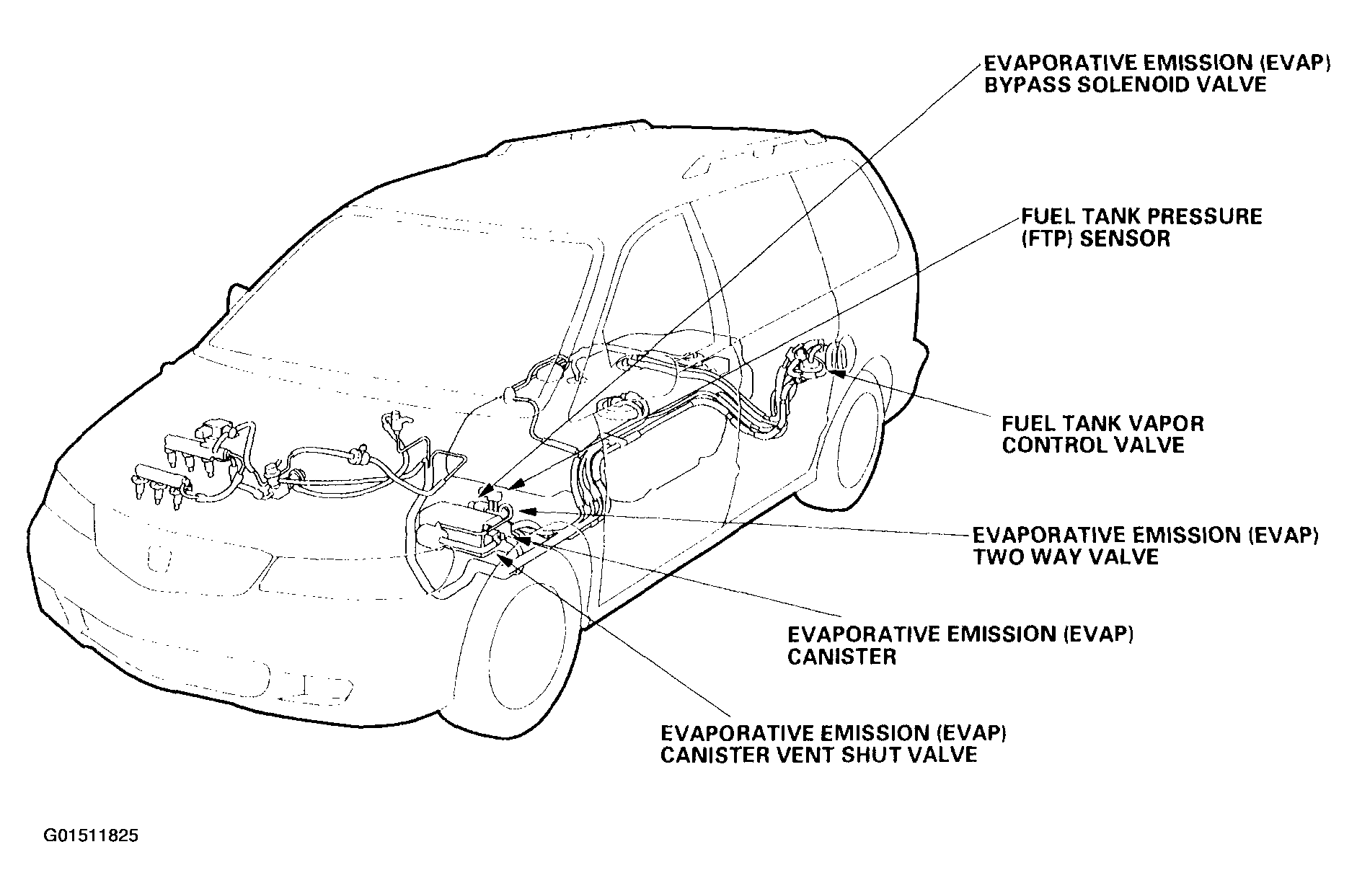

Fig 4: Identifying EVAP System ('01 Models - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Identifying EVAP System ('02-04 Models - 1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

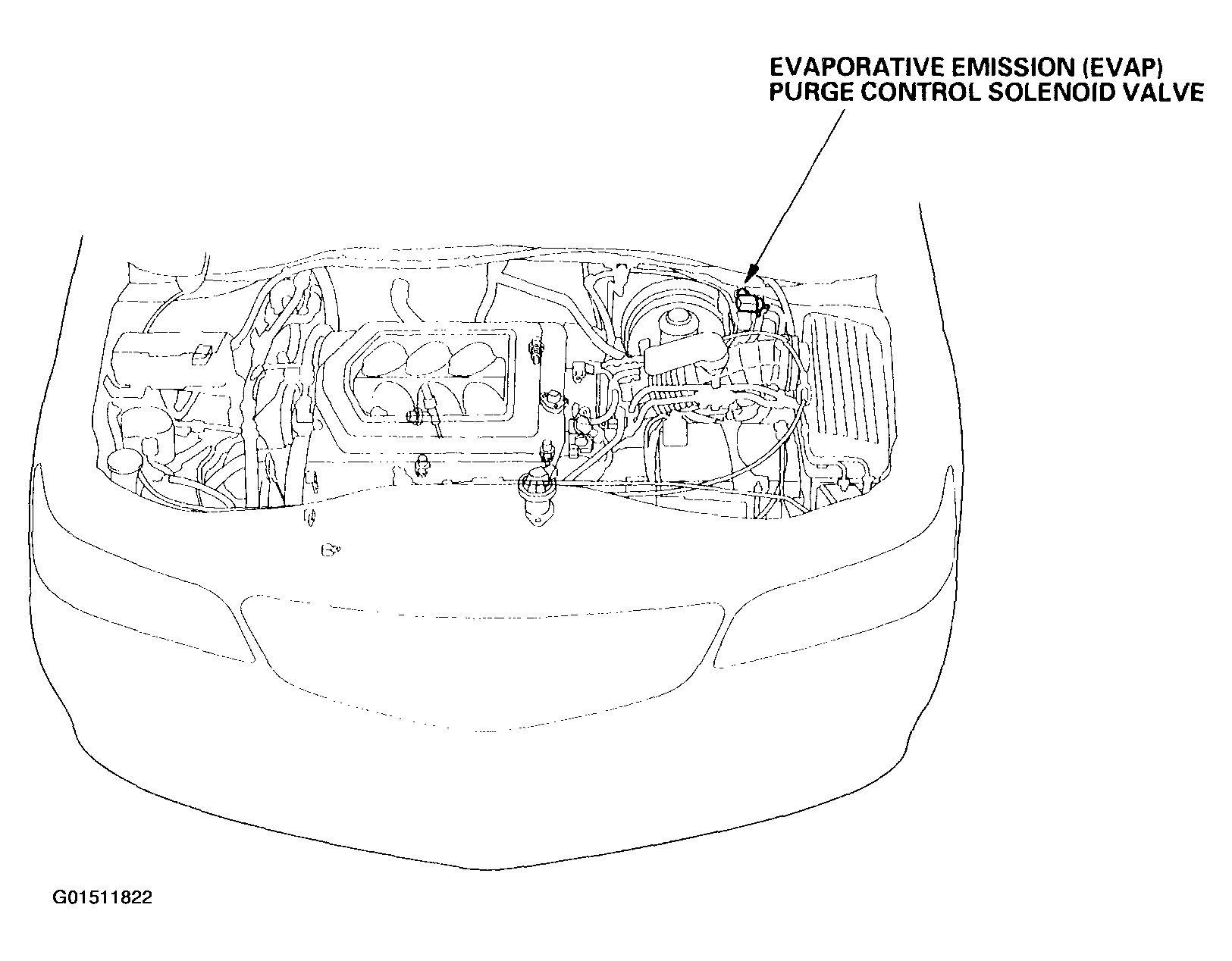

Fig 6: Identifying EVAP System ('02-04 Models - 2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
