Fuel Pressure Relieving

Before disconnecting fuel lines or hoses, relieve pressure from the system by loosening the fuel pulsation damper on top of the fuel rail.

1. Make sure you have the anti-theft codes for the radio and the navigation system (if equipped), then write down the frequencies for the radio's preset buttons.
2. Disconnect the negative cable from the battery.
3. Remove the fuel fill cap.
4. Place a wrench on the fuel pulsation damper (A).

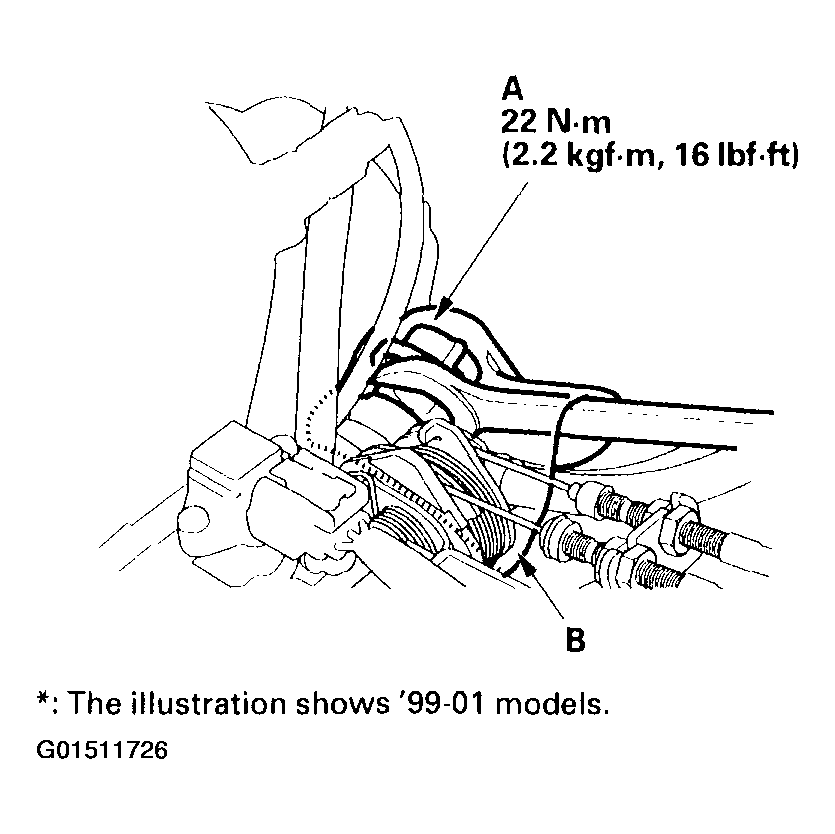

   Fig 1: Placing A Wrench On Fuel Pulsation Damper

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Place a rag or shop towel (B) over the fuel pulsation damper.
6. Slowly loosen the fuel pulsation damper one complete turn.
   NOTE: Replace all washers whenever the fuel pulsation damper is loosened or removed.
