Throttle Body Removal/Installation

NOTE:

Do not adjust the throttle stop screw.
After reassembly, adjust the cruise control cable (see appropriate CRUISE CONTROL SYSTEM article ), and the throttle cable. See Throttle Cable Adjustment .
The TP sensor is not removable.

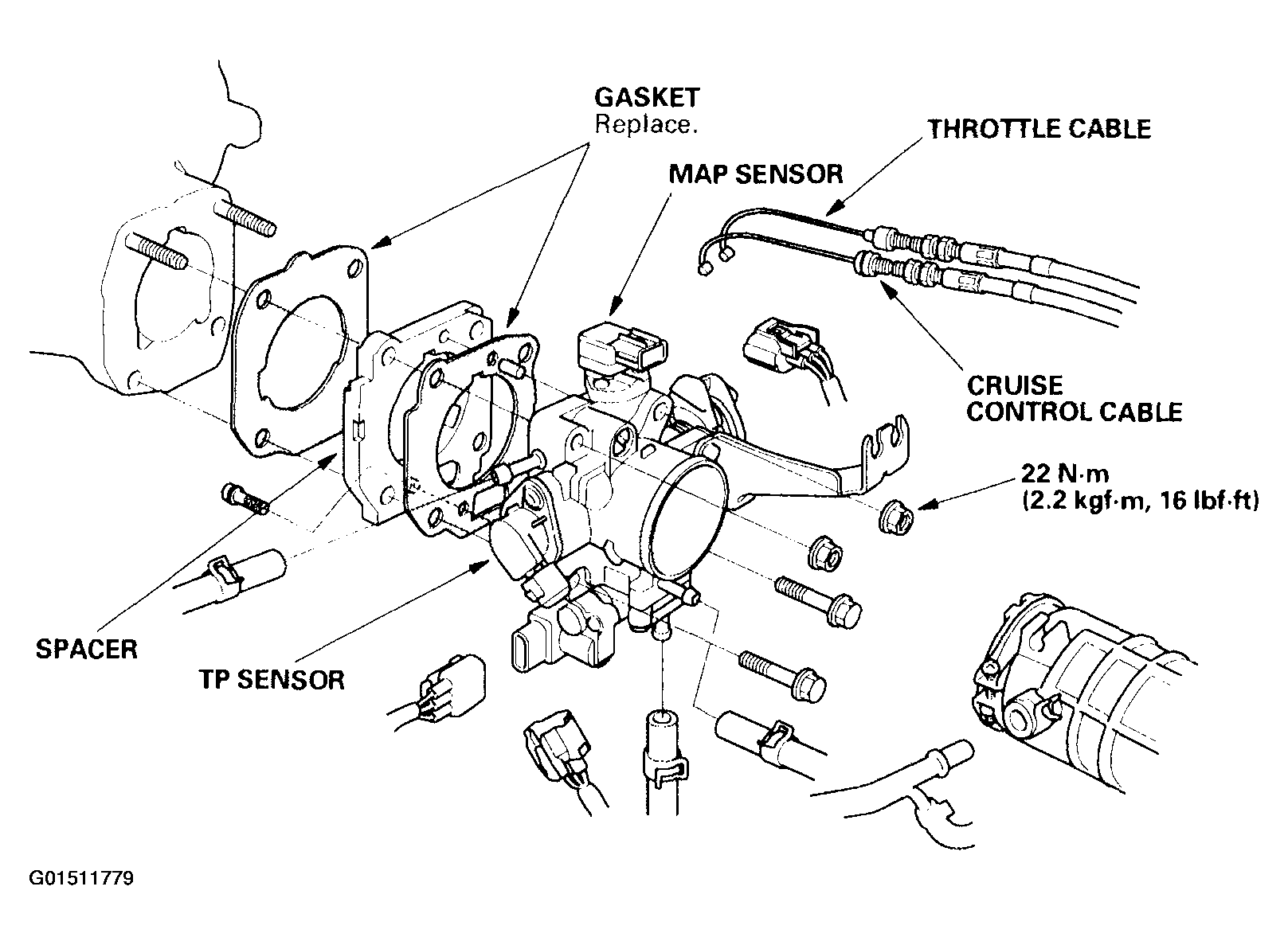

Fig 1: Exploded View Of Throttle Body ('99-00 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

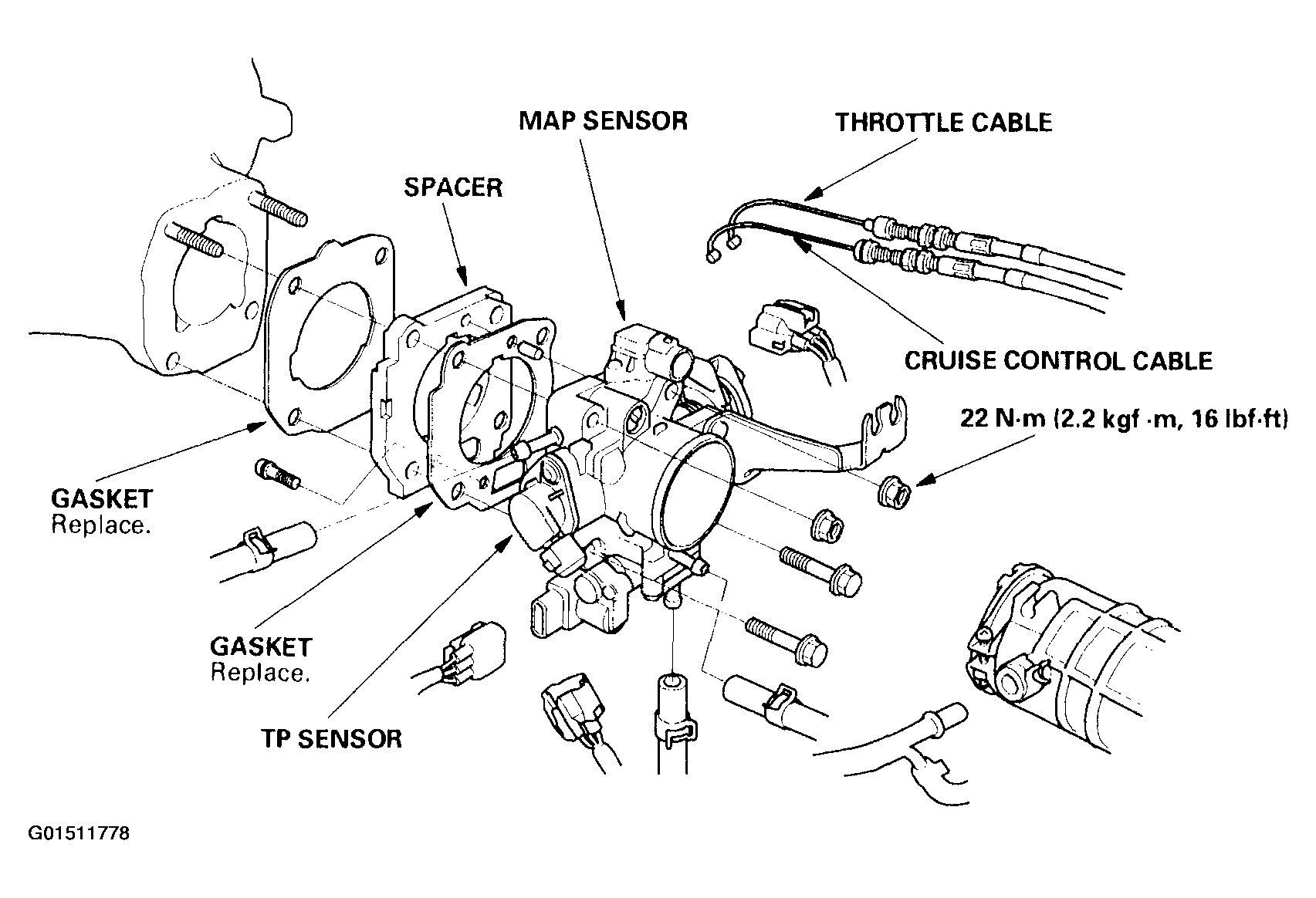

Fig 2: Exploded View Of Throttle Body ('01 model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

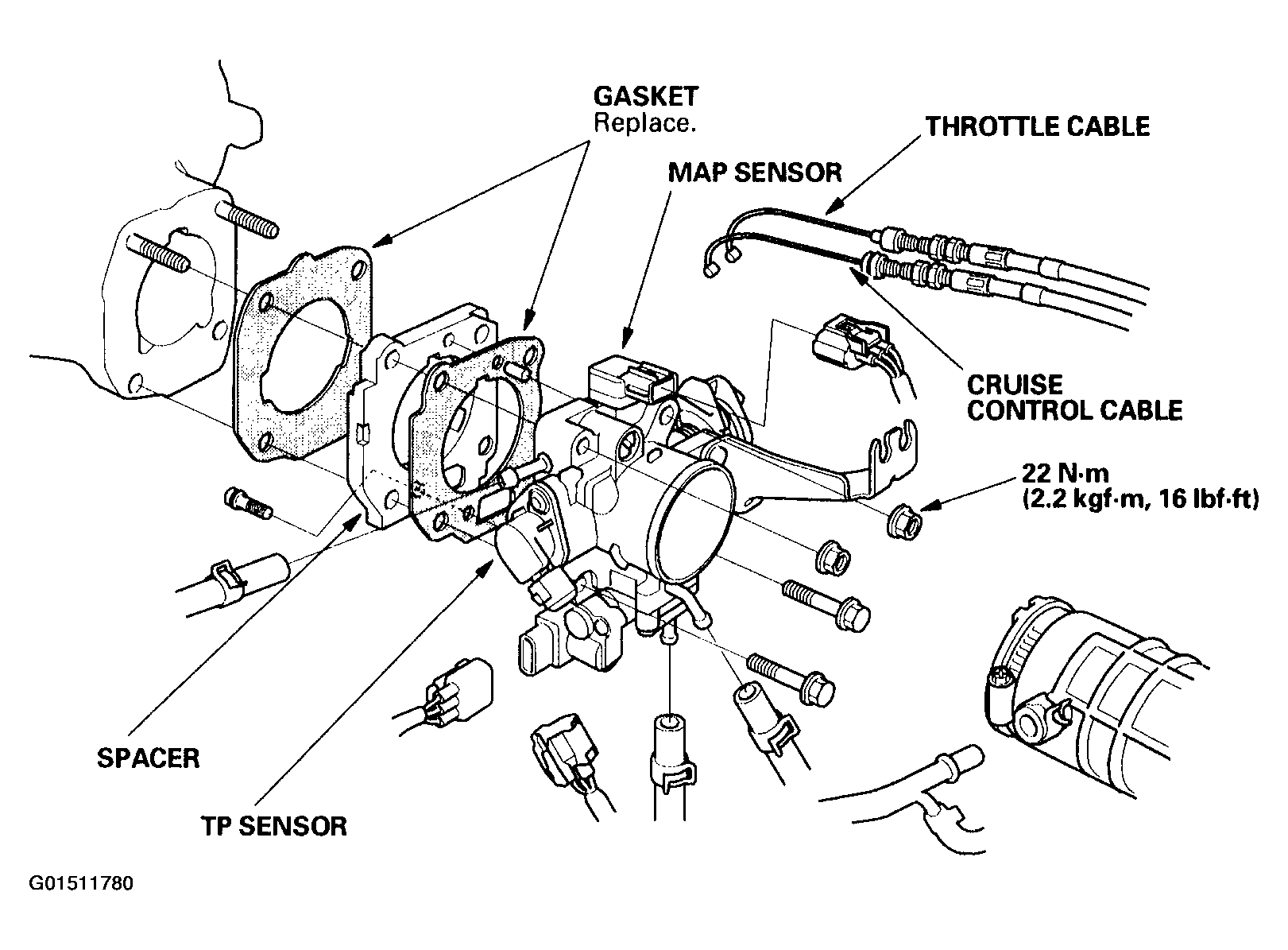

Fig 3: Exploded View Of Throttle Body ('02-04 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
